Yealink SIP-T46G User Manual

User Guide for the SIP-T46G IP Phone
110

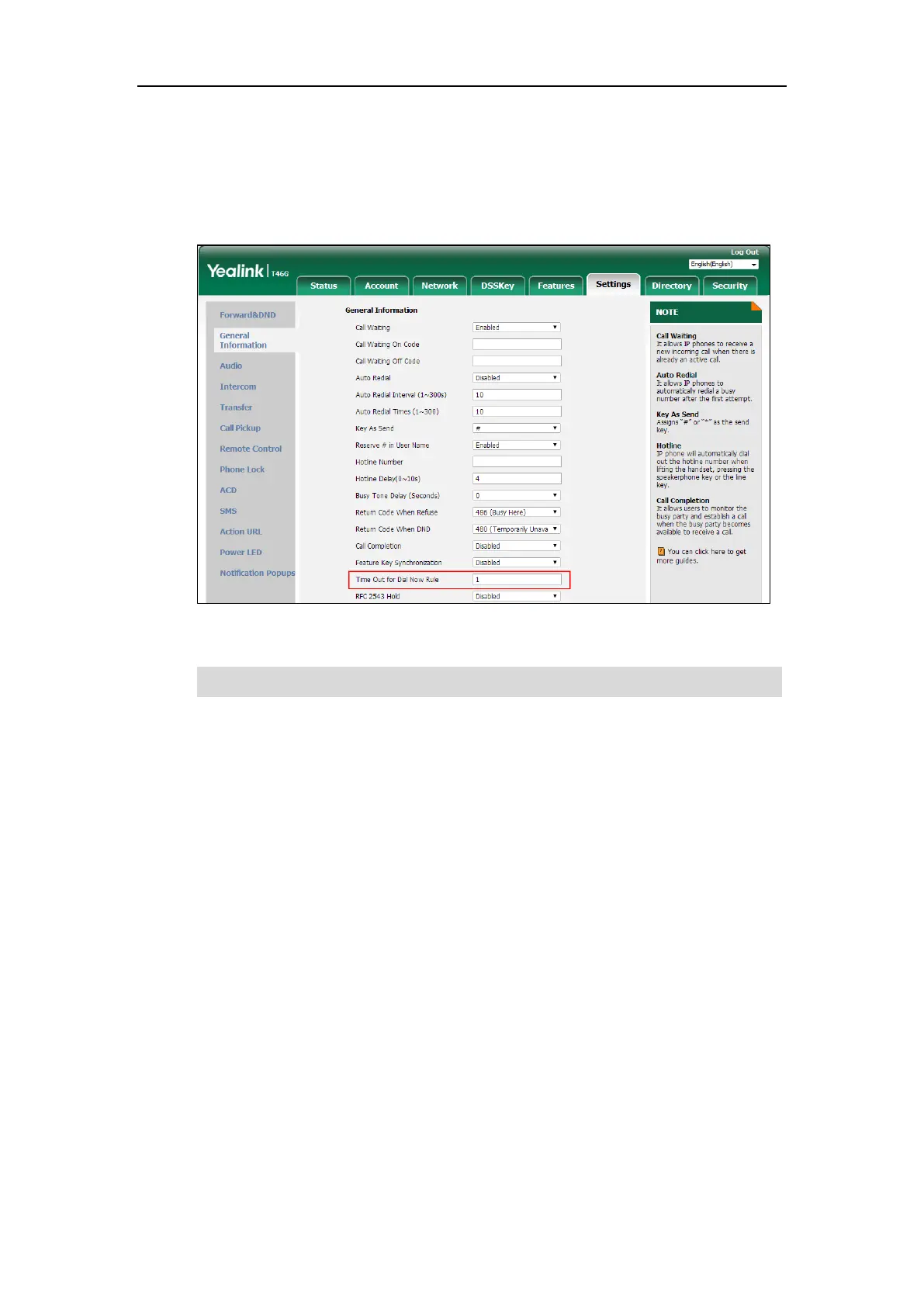

To configure the delay time for dial now rule via web user interface:
1. Click on Features->General Information.
2. Enter the time between 0 and 14 (seconds) in the Time Out for Dial Now Rule field.
The default value is “1”.
3. Click Confirm to accept the change.
Note
Area Code
Area codes are also known as Numbering Plan Areas (NPAs). They usually indicate geographical
areas in a country. This feature is necessary when dialing a phone number outside the code area.
For example, an area code is configured as "Code: 0592, Min Length: 1, Max Length: 15". When
you dial out the number "56789" (the length of the number is between 1 and 15), the phone will
add the area code and dial out the number "059256789". You can only configure one area code
rule on your phone.
To configure the area code via web user interface:
1. Click on Settings->Dial Plan->Area Code.
2. Enter the desired values in the Code, Min Length (1-15) and Max Length (1-15) fields.
3. Enter the desired line ID in the Account field or leave it blank.
Time out for dial now rule is configurable via web user interface only.

Yealink SIP-T46G Specifications

General

Backlight	Yes
Power requirements	100-240V, DC 5V
Touchscreen	-
Display diagonal	4.3 \
Display resolution	480 x 272 pixels
Lines quantity	- lines
Phonebook capacity	1000 entries
Number of VoIP accounts	6
Voice codecs	G.711, G.722, G.723, G.726, G.729A, G.729B
Bluetooth	No
RJ-9 ports quantity	2
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	1
Storage temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	10 - 95 %
Handset type	Wired handset
Product type	IP Phone
Product color	Black
Number of handles included	1 pc(s)

Weight and Dimensions

Depth	185 mm
Width	244 mm
Height	213 mm
