User Guide for the VC800 Video Conferencing System
46
If Always On is selected, the system will not enter the sleep mode automatically.
6. Press or to select Save and then press to accept the change.

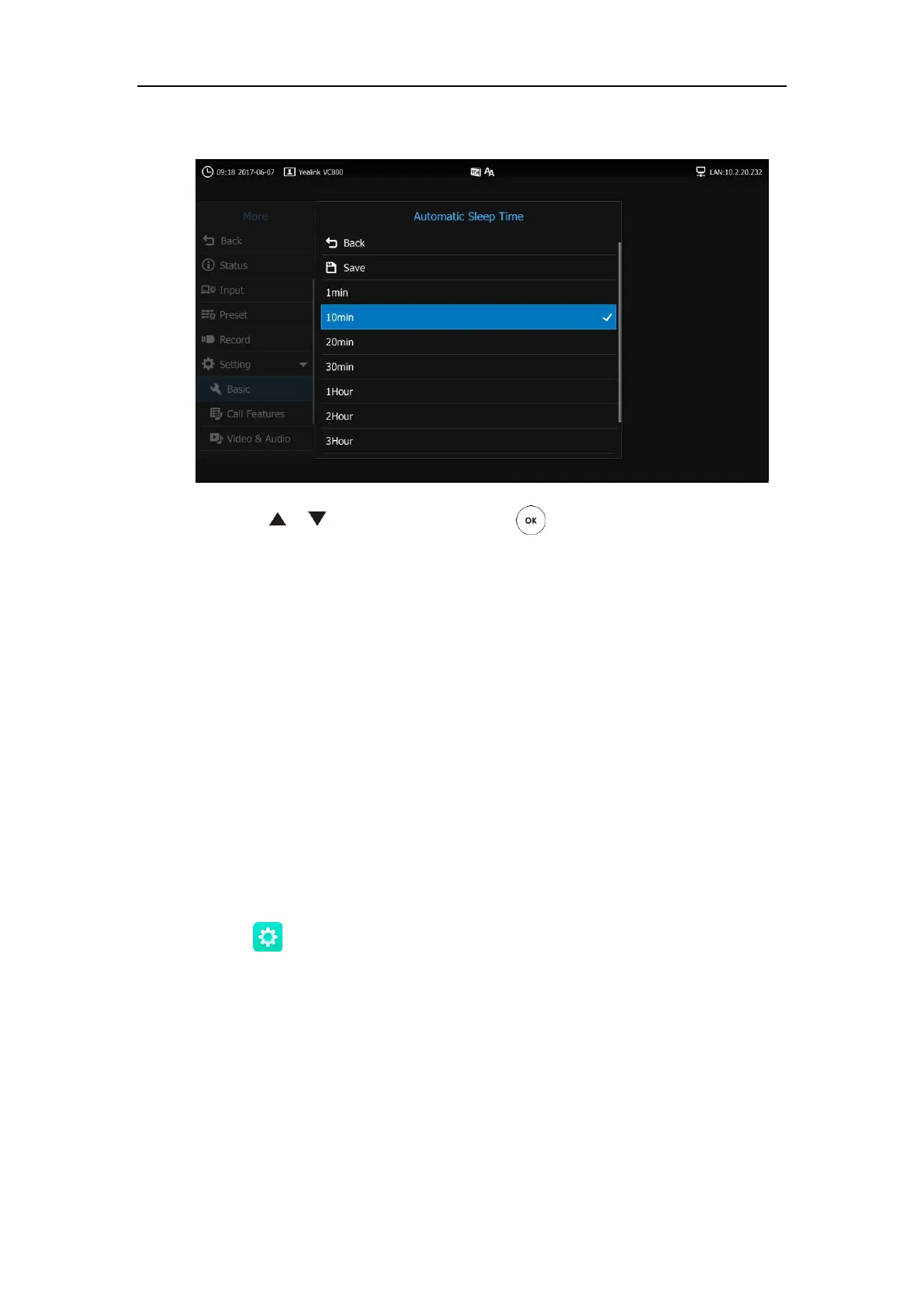

Automatic sleep time is configurable via web user interface at the path
Setting->General->Automatic Sleep Time.
Backlight
The backlight of the CP960 conference phone is always on by default. You can configure
backlight time for the CP960’s touch screen via the CP960 conference phone or web user
interface.
You can configure the touch screen‘s backlight time in the following formats:
Always On: Backlight is on permanently.
15s, 30s, 1 Min, 2 Min, 5 Min, 10 Min, 30 Min: Backlight goes out when the phone has
been inactive for the time you set.
To configure the backlight of the CP960 conference phone:
1. Tap ->Display->Backlight.
2. Drag the Active Level slider to change the intensity of the touch screen.
3. Tap the Backlight Time field.
