Symbologies 5 - 49
Discrete 2 of 5 (DTF)
Enable/Disable Discrete 2 of 5
Parameter # 5
SSI # 05h
To enable or disable Discrete 2 of 5, scan the appropriate bar code below.
Set Lengths for Discrete 2 of 5
L1 = Parameter # 20
SSI # 14h
L2 = Parameter # 21
SSI # 15h
The length of a code refers to the number of characters (i.e., human readable characters), including check
digit(s) the code contains. Set lengths for D 2 of 5 to any length, one or two discrete lengths, or lengths within a
specific range. The range for Discrete 2 of 5 lengths is 1 - 55.
•
One Discrete Length - Select this option to decode only D 2 of 5 symbols containing a selected length.
Select the length using the numeric bar codes in Appendix F, Numeric Bar Codes. For example, to
decode only D 2 of 5 symbols with 14 characters, scan D 2 of 5 - One Discrete Length, then scan 1
followed by 4. To correct an error or to change the selection, scan Cancel on page F-3.
•
Two Discrete Lengths - Select this option to decode only D 2 of 5 symbols containing either of two
selected lengths. Select lengths using the numeric bar codes in Appendix F, Numeric Bar Codes. For
example, to decode only D 2 of 5 symbols containing either 2 or 14 characters, select D 2 of 5 - Two
Discrete Lengths, then scan 0, 2, 1, and then 4. To correct an error or to change the selection,
scan Cancel on page F-3.
•
Length Within Range - Select this option to decode a D 2 of 5 symbol with a specific length
range. Select lengths using numeric bar codes in Appendix F, Numeric Bar Codes. For example, to
decode D 2 of 5 symbols containing between 4 and 12 characters, first scan D 2 of 5 - Length Within
Range. Then scan 0, 4, 1, and 2 (enter a leading zero for single digit numbers). To correct an error or
change the selection, scan Cancel on page F-3.

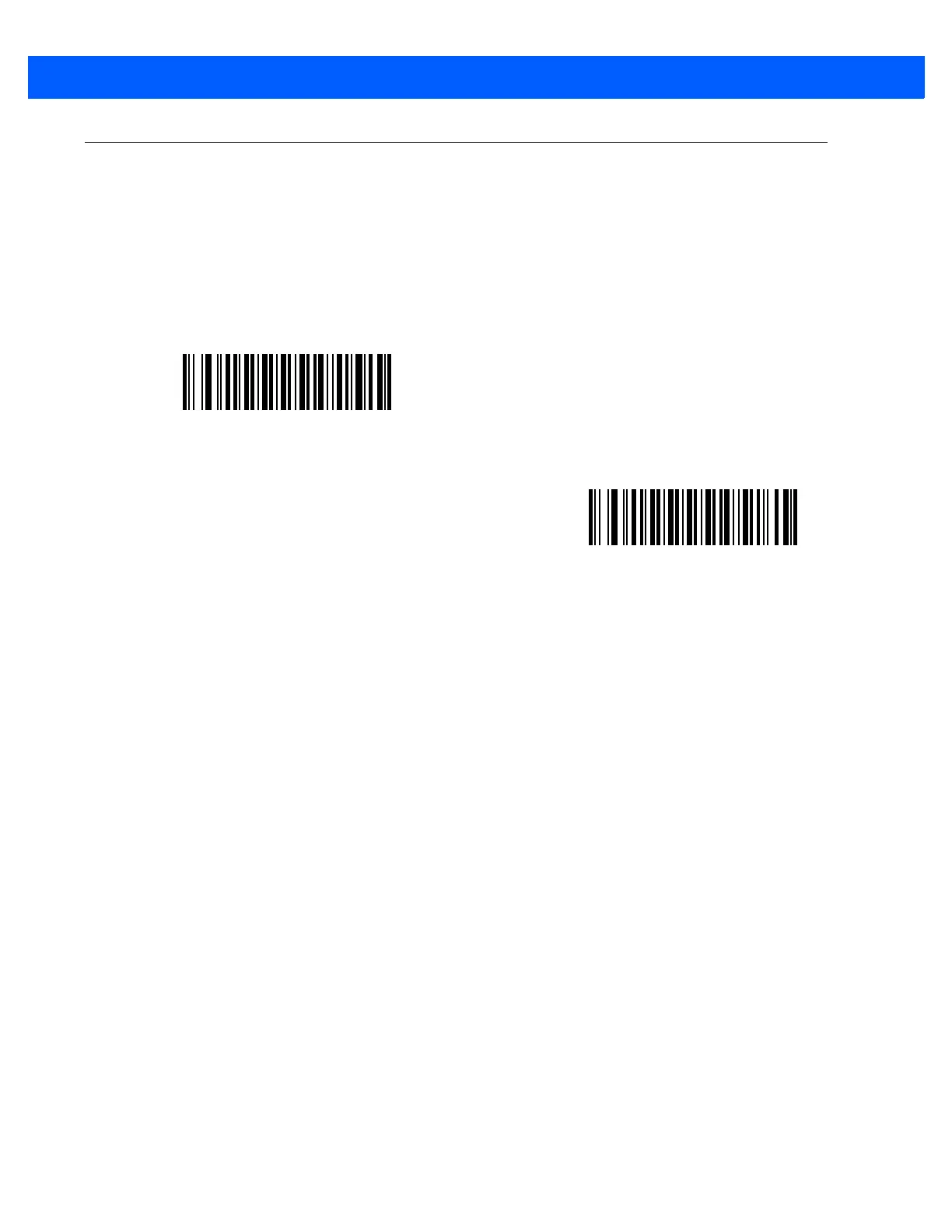

Enable Discrete 2 of 5
(1)
*Disable Discrete 2 of 5
(0)
To Next Page
