Symbologies 5 - 71

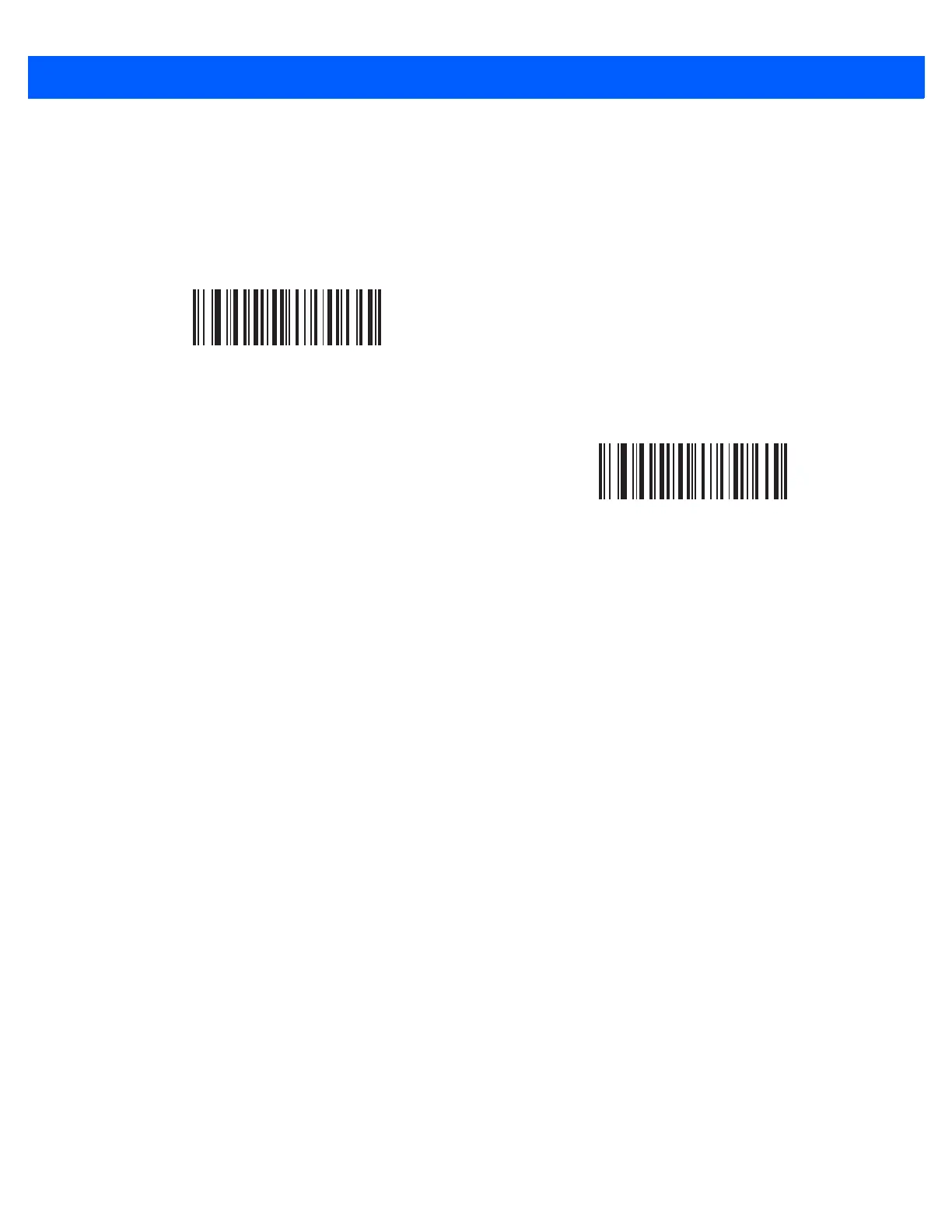

GS1-128 Emulation Mode for UCC/EAN Composite Codes

Parameter # 427

SSI # F0h, ABh

Select whether to enable or disable this mode.

Enable GS1-128 Emulation Mode for

UCC/EAN Composite Codes

(1)

*Disable GS1-128 Emulation Mode for

UCC/EAN Composite Codes

(0)

CS4070 Product Reference Guide1
- Warranty4
- Revision History5
Table of Contents7
About This Guide17
- Introduction17
- Configurations17
- Accessories17
- Chapter Descriptions18
- Notational Conventions19
- Related Documents19
- Service Information20
Getting Started21
- Introduction21
- Unpacking the Scanner22
- Inserting and Removing the Battery22
  - Inserting the Battery22
  - Removing the Battery23
- Charging Batteries24
- Connecting to the Host Computer25
- Configuring the Scanner28
- Editing the Configuration File29
Scanning33
- Introduction33
- Scanning33
  - Deleting Bar Codes34
- Transmitting Bar Code Data to Host34
  - Transferring Data from a Batch Scanner34
  - Transferring Data from a Bluetooth Scanner35
- User Interface Definitions36
  - LED Indications36
  - Beeper Indications39
User Preferences41
- Introduction41
- Scanning Sequence Examples41
- Errors While Scanning41
- User Preferences Default Parameters42
- Reset Factory Defaults45
- Set Date and Time46
- Bluetooth Options48
- Bluetooth HID Keyboard Features60
- General Decoder Settings69
- Data Options101
- Send Versions105
USB HID Keyboard Features (Dongle)107
- Introduction107
- Scanning Sequence Examples107
- Errors While Scanning107
- USB HID Keyboard Default Parameters108
- USB HID Keyboard Features (Dongle)109
Symbologies119
- Introduction119
- Scanning Sequence Examples119
- Errors While Scanning120
- Symbology Default Parameters120
- Enable/Disable All Code Types125
- UPC/EAN126
  - Enable/Disable UPC-A126
  - Enable/Disable UPC-E126
  - Enable/Disable UPC-E1127
  - Enable/Disable EAN-8/JAN-8127
  - Enable/Disable EAN-13/JAN-13128
  - Enable/Disable Bookland EAN128
  - Bookland ISBN Format129
  - Decode UPC/EAN/JAN Supplementals130
  - User-Programmable Supplementals133
  - UPC/EAN/JAN Supplemental Redundancy133
  - UPC/EAN/JAN Supplemental AIM ID Format134
  - Transmit UPC-A Check Digit135
  - Transmit UPC-E Check Digit135
  - Transmit UPC-E1 Check Digit136
  - UPC-A Preamble137
  - UPC-E Preamble138
  - UPC-E1 Preamble139
  - Convert UPC-E to UPC-A140
  - Convert UPC-E1 to UPC-A140
  - EAN-8/JAN-8 Extend141
  - UCC Coupon Extended Code141
  - Coupon Report142
  - ISSN EAN142
- Code 128143
  - Enable/Disable Code 128143
  - Set Lengths for Code 128143
  - Enable/Disable GS1-128 (formerly UCC/EAN-128)145
  - Enable/Disable ISBT 128145
  - ISBT Concatenation146
  - Check ISBT Table147
  - ISBT Concatenation Redundancy147
  - Code 128 Security Level148
- Code 39149
  - Enable/Disable Code 39149
  - Enable/Disable Trioptic Code 39149
  - Convert Code 39 to Code 32150
  - Code 32 Prefix151
  - Set Lengths for Code 39151
  - Code 39 Check Digit Verification153
  - Transmit Code 39 Check Digit153
  - Code 39 Full ASCII Conversion154
  - Code 39 Security Level155
- Code 93156
  - Enable/Disable Code 93156
  - Set Lengths for Code 93156
- Code 11158
  - Code 11158
  - Set Lengths for Code 11158
  - Code 11 Check Digit Verification160
  - Transmit Code 11 Check Digits161
- Interleaved 2 of 5 (ITF)162
  - Enable/Disable Interleaved 2 of 5162
  - Set Lengths for Interleaved 2 of 5162
  - I 2 of 5 Check Digit Verification164
  - Transmit I 2 of 5 Check Digit165
  - Convert I 2 of 5 to EAN-13165
  - I 2 of 5 Security Level166
- Discrete 2 of 5 (DTF)167
  - Enable/Disable Discrete 2 of 5167
  - Set Lengths for Discrete 2 of 5167
- Codabar (NW - 7)169
  - Enable/Disable Codabar169
  - Set Lengths for Codabar169
  - CLSI Editing171
  - NOTIS Editing171
  - Codabar Upper or Lower Case Start/Stop Characters Detection172
- MSI173
  - Enable/Disable MSI173
  - Set Lengths for MSI173
  - MSI Check Digits175
  - Transmit MSI Check Digit(s)175
  - MSI Check Digit Algorithm176
- Chinese 2 of 5177
  - Enable/Disable Chinese 2 of 5177
- Matrix 2 of 5178
  - Enable/Disable Matrix 2 of 5178
  - Set Lengths for Matrix 2 of 5178
  - Matrix 2 of 5 Check Digit180
  - Transmit Matrix 2 of 5 Check Digit180
- Korean 3 of 5181
  - Enable/Disable Korean 3 of 5181
- Inverse 1D182
- GS1 DataBar183
  - GS1 DataBar-14183
  - GS1 DataBar Limited183
  - GS1 DataBar Expanded184
  - Convert GS1 DataBar to UPC/EAN184
  - GS1 DataBar Limited Security Level185
- Composite186
  - Composite CC-C186
  - Composite CC-A/B186
  - Composite TLC-39187
  - UPC Composite Mode188
  - GS1-128 Emulation Mode for UCC/EAN Composite Codes189
- Postal Codes190
  - US Postnet190
  - US Planet190
  - Transmit US Postal Check Digit191
  - UK Postal191
  - Transmit UK Postal Check Digit192
  - Japan Postal192
  - Australia Post193
  - Australia Post Format194
  - Netherlands KIX Code195
  - USPS 4CB/One Code/Intelligent Mail195
  - UPU FICS Postal196
- 2D Symbologies197
  - Enable/Disable PDF417197
  - Enable/Disable MicroPDF417197
  - Code 128 Emulation198
  - Data Matrix199
  - GS1 Data Matrix199
  - Data Matrix Inverse200
  - Decode Mirror Images (Data Matrix Only)201
  - Maxicode202
  - QR Code202
  - QR Inverse203
  - MicroQR204
  - Aztec204
  - Aztec Inverse205
  - Han Xin206
  - Han Xin Inverse207
- Symbology-Specific Security Levels208
  - Redundancy Level208
  - Security Level210
  - Intercharacter Gap Size211
Cordless Bluetooth Wedge213
- Introduction213
123Scan and Software Tools215
- Introduction215
- 123Scan215
  - 123Scan Information216
  - Scanner SDK, Other Software Tools, and Videos217
- Scanner Control App218
- Advanced Data Formatting (ADF)218
Maintenance and Technical Specifications219
- Introduction219
- Maintenance219
- Troubleshooting220
- Technical Specifications221
Standard Default Parameters223
Accessories233
- Overview233
- Accessories Summary234
- Single-Slot CS4070 Charging Cradle with Spare Battery Charger235
  - Battery Charging Indications236
  - Bluetooth Connectivity236
- Eight-Slot CS4070 Charging Cradle237
  - Battery Charging Indications238
  - Bluetooth Connectivity238
- Eight-Slot Spare Battery Charger239
  - Battery Charging Indications240
  - LED Indications240
- Wall Mount Brackets241
  - KT-102376-01R Bracket241
  - KT-102375-01R Bracket243
- Bluetooth to USB HID Dongle246
  - Pairing to a USB HID Device247
- Lanyard with Clip248
  - Attaching and Removing the Lanyard248
Bluetooth Connection Examples249
- Overview249
- iPad Pairing Example250
- Android Pairing Example251
  - Accessing the Android Phone Keyboard252
- Windows 7 Pairing Example253
- Windows 8 Pairing Example255
- PIN Entry Bar Codes257
Programming Reference259
- Code Type IDs259
- Symbol Code Identifiers262
- AIM Code Identifiers264
- GS1-128 (formerly UCC/EAN-128)269
- Setting Prefixes and Suffixes270
Sample Bar Codes275
- UPC-A275
- UPC-E275
- UPC-E1276
- EAN-13276
- EAN-8276
- Code 39276
- Trioptic Code 39277
- Code 93277
- Code 11277
- Codabar278
- MSI278
- Interleaved 2 of 5278
- GS1 DataBar-14279
- PDF417279
- Data Matrix279
- Maxicode279
- QR Code280
- Han Xin280
- US Postnet280
- UK Postal280
Numeric Bar Codes281
- Numeric Bar Codes281
- Cancel283
Alphanumeric Bar Codes285
- Alphanumeric Keyboard285
ASCII Character Sets303
CJK Decode Control315
- Introduction315
- CJK Decode Control Parameters316
  - Unicode Output Control316
  - CJK Output Method to Windows Host317
- Unicode/CJK Decode Setup with Windows Host318
Index321
