C - 8
CS4070 Scanner Product Reference Guide
7.
With the CS4070, scan the PIN using the
PIN Entry Ba
r Codes on page C-9
and scan
Enter
. The scanner
beeps to indicate it has paired with the Lenovo
ThinkPad T
ablet, and the Lenovo ThinkPad
T
ablet
displays
Connected below the CS4070 device name.

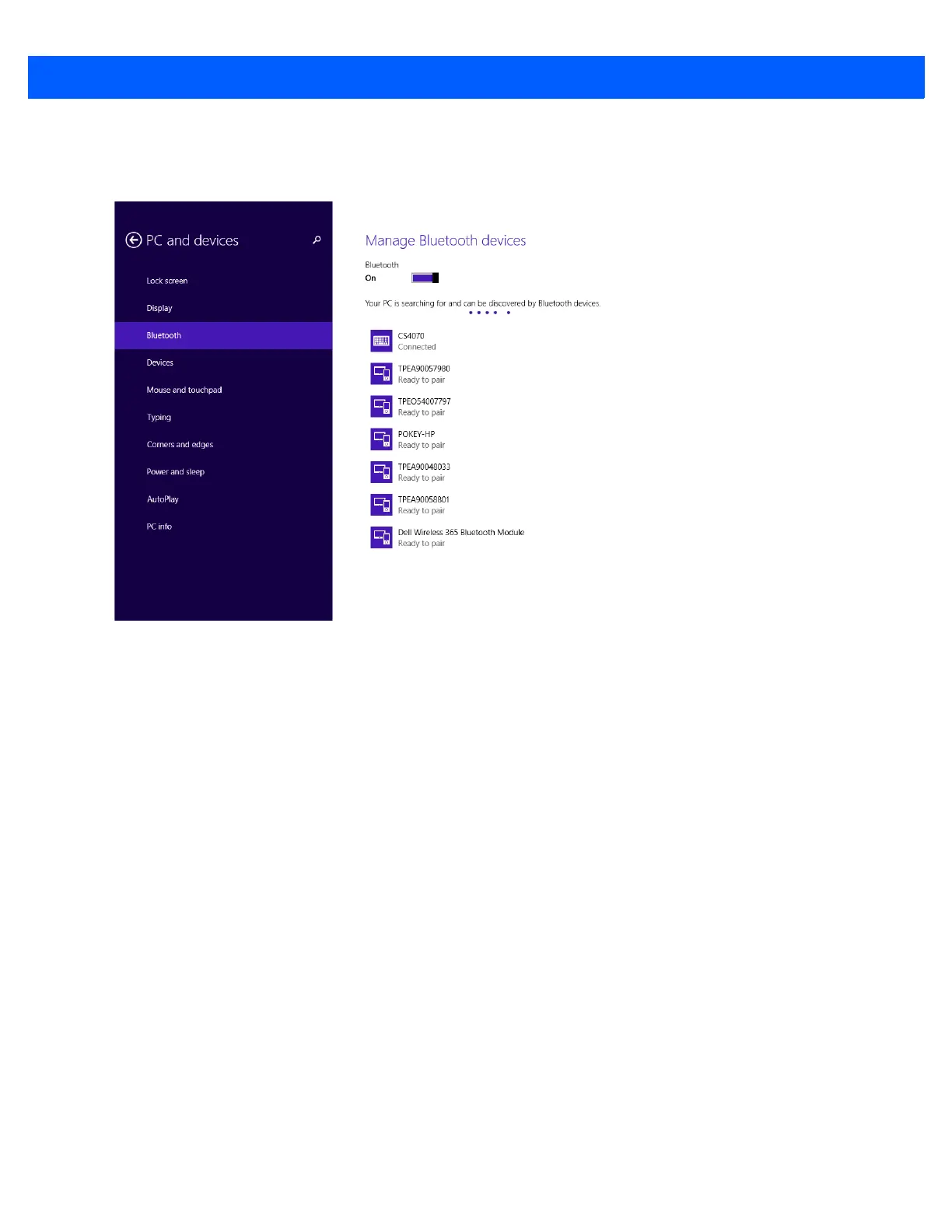

Figure C-10
CS4070 Connecte
d
255
257
