Zebra G SERIES Service Manual

Replacing Parts
Replacing the Fuse
52
980618-001 A Thermal Transfer G-Series
TM
Service Manual 8/27/08
Replacing the Fuse
You must remove the bottom case and Main Logic circuit board before performing this
procedure.
Removal

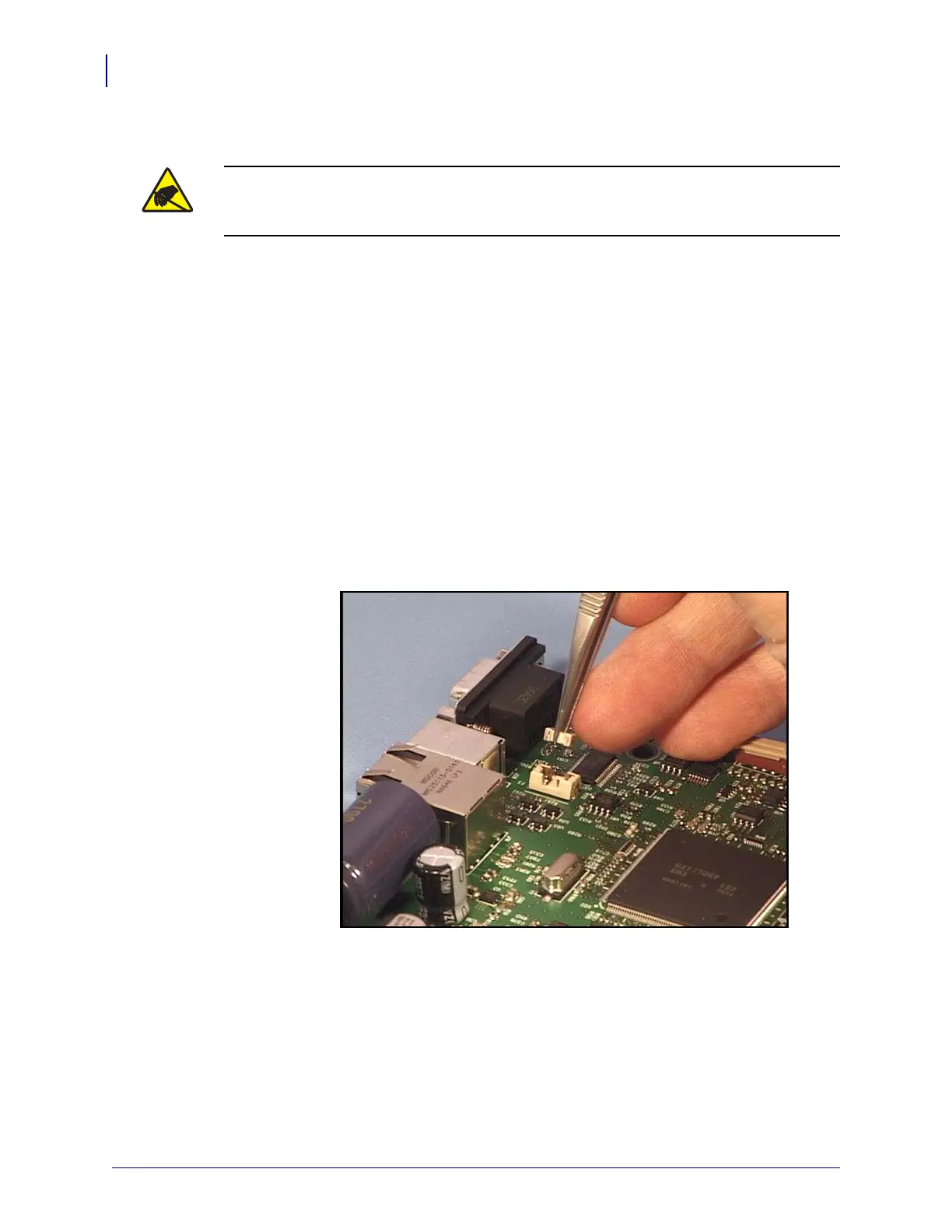

1. Locate the fuse on the top of the Main Logic circuit board near the interface connectors.
2. Use tweezers to grasp the fuse and pull it from its socket.
Installation
There is no concern about polarity.
1. Lower the fuse into its socket.
2. Make sure it is seated completely.
Replace the Main Logic circuit board and bottom case. Reload media. Plug in power, turn on
the printer and print a status report to ensure proper function.
Caution • Prepare your work area by protecting against static discharge. Your work area
must be static-safe and include a properly grounded conductive cushioned mat to hold the
printer and a conductive wrist strap for yourself.
