Replacing Parts
Replacing the Standard Bezel
60
980618-001 A Thermal Transfer G-Series
TM
Service Manual 8/27/08
Replacing the Standard Bezel
You must remove the bottom case before performing this procedure.
Removal
The bezel is located on the front of the printer below the media exit.

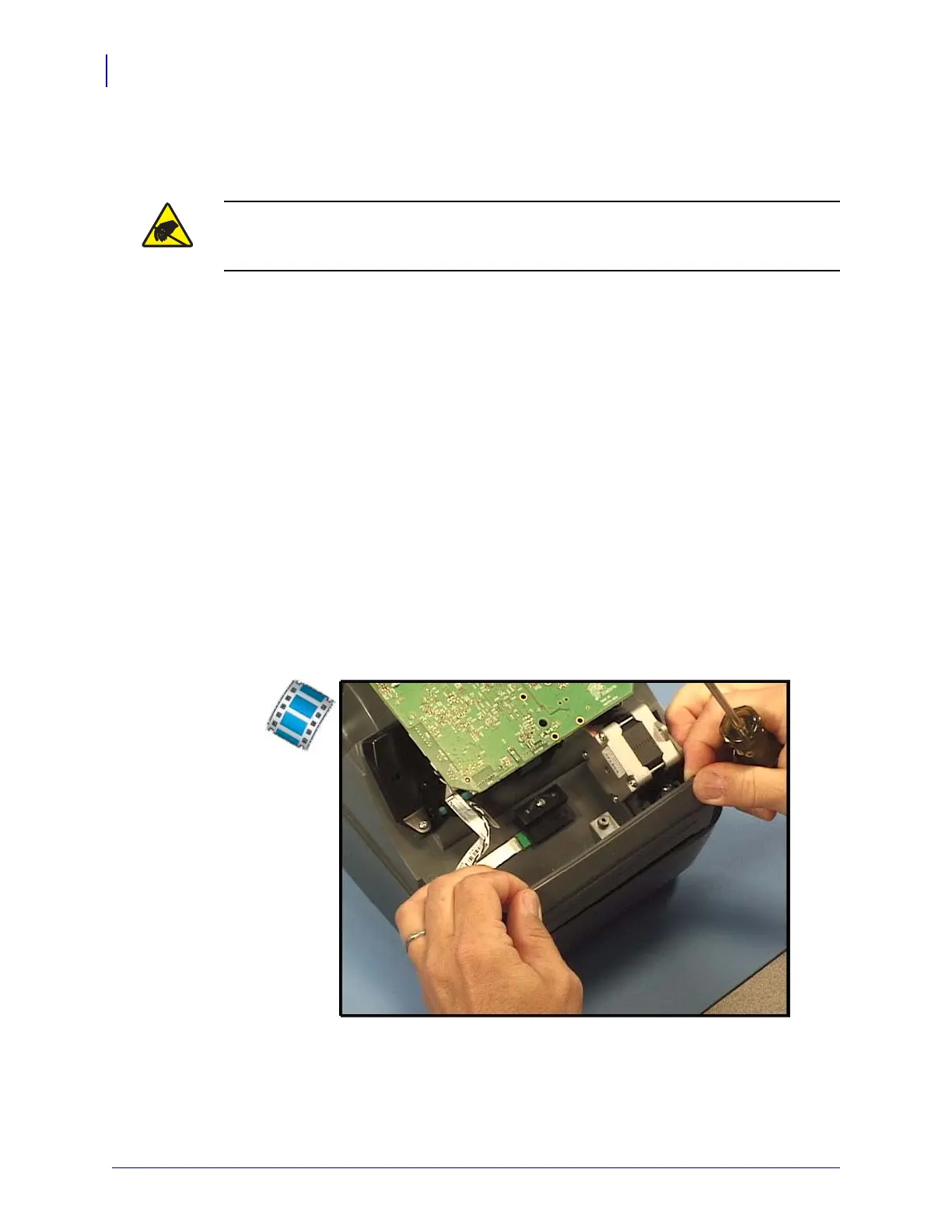

1. Turn the printer upside down. Use a #1 Phillips screwdriver to loosen and remove the
screws on the left and right sides immediately behind the bezel.
2. Lift the bezel cover away from the printer.
Installation
1. With the printer upside down, align the bezel cover so that the mounting holes face the
rear of the printer and the flat media exit faces to the top of the printer.
2. Place the bezel against the printer.
3. Replace the screws and use a #1 Phillips screwdriver to tighten them.
Replace the bottom case. Reload media. Plug in power, turn on the printer and print a status
report to ensure proper function.
Caution • Prepare your work area by protecting against static discharge. Your work area
must be static-safe and include a properly grounded conductive cushioned mat to hold the
printer and a conductive wrist strap for yourself.
