Zebra S4M User Manual

Troubleshooting
Printer Diagnostics
118
13290L-004 Rev. A S4M User Guide 6/15/09

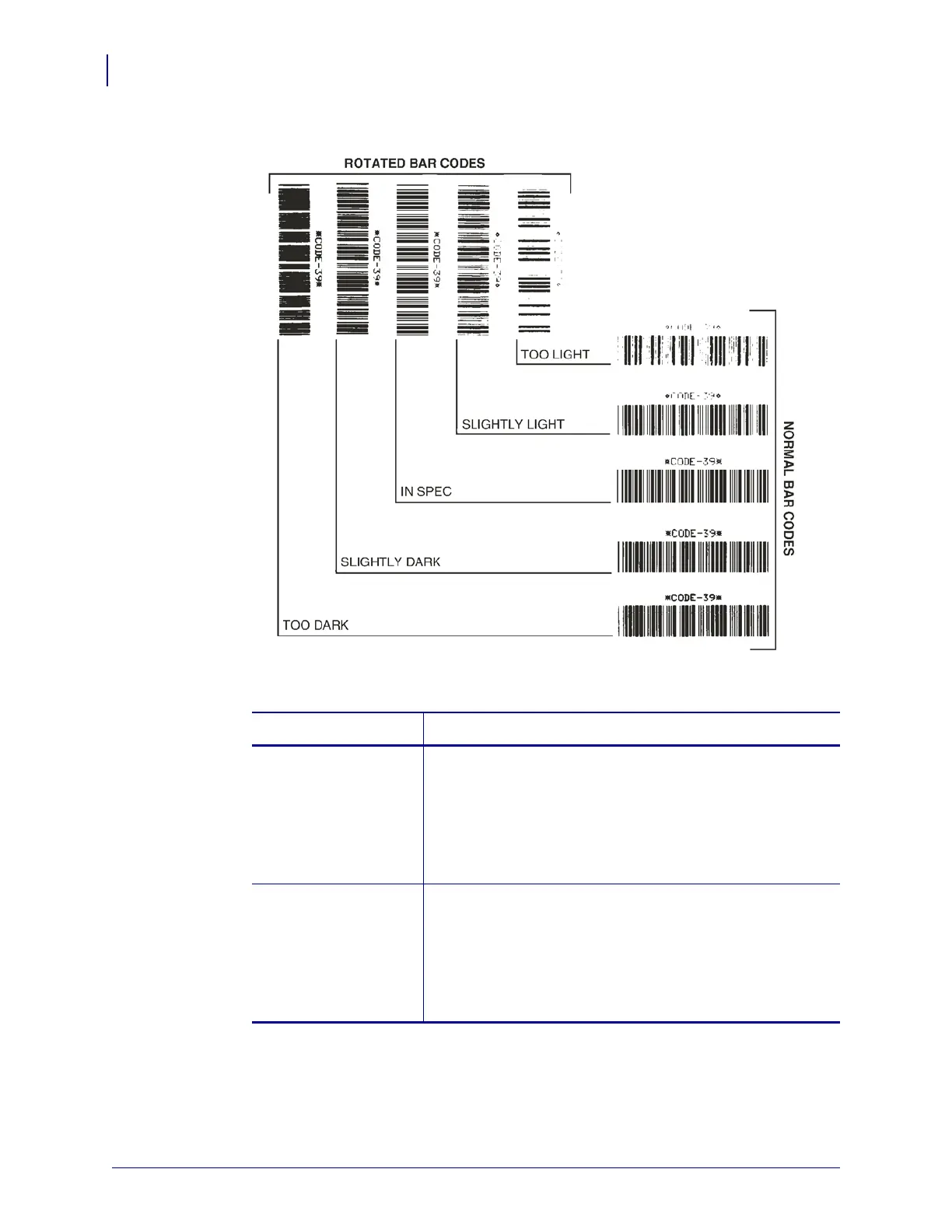

Figure 26 • Bar Code Darkness Comparison
Table 24 • Judging Bar Code Quality
Print Quality Description
Too dark Labels that are too dark are fairly obvious. They may be
readable but not “in-spec.”
• The normal bar code bars increase in size.
• The openings in small alphanumeric characters may fill in
with ink.
• Rotated bar code bars and spaces run together.
Slightly dark Slightly dark labels are not as obvious.
• The normal bar code will be “in-spec.”
• Small character alpha numerics will be bold and could be
slightly filled in.
• The rotated bar code spaces are small when compared to
the “in-spec” code, possibly making the code unreadable.

Zebra S4M Specifications

General

Flash memory	4 MB
Internal memory	8 MB
Dimensions (WxDxH)	272 x 477 x 295 mm
Media types supported	continuous, die-cut, tag, black mark
Media thickness	0.076 - 0.15 mm
RS-232 ports	1
Standard interfaces	USB 2.0
Storage temperature (T-T)	5 - 40 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 85 %
Operating relative humidity (H-H)	20 - 85 %

Weight and Dimensions

Weight	12400 g
