Zebra S4M User Manual

45
Operations
Load Media in Peel-Off Mode
6/15/09 S4M User Guide 13290L-004 Rev. A
Load Media in Peel-Off Mode
This section applies only if the Peel-Off option is installed (Figure 10).
The peel assembly consists of several spring-loaded rollers to ensure the proper roller
pressure. Use the peel release lever and your right hand to open and close the peel assembly.
Doing this will keep your fingers away from the rollers.

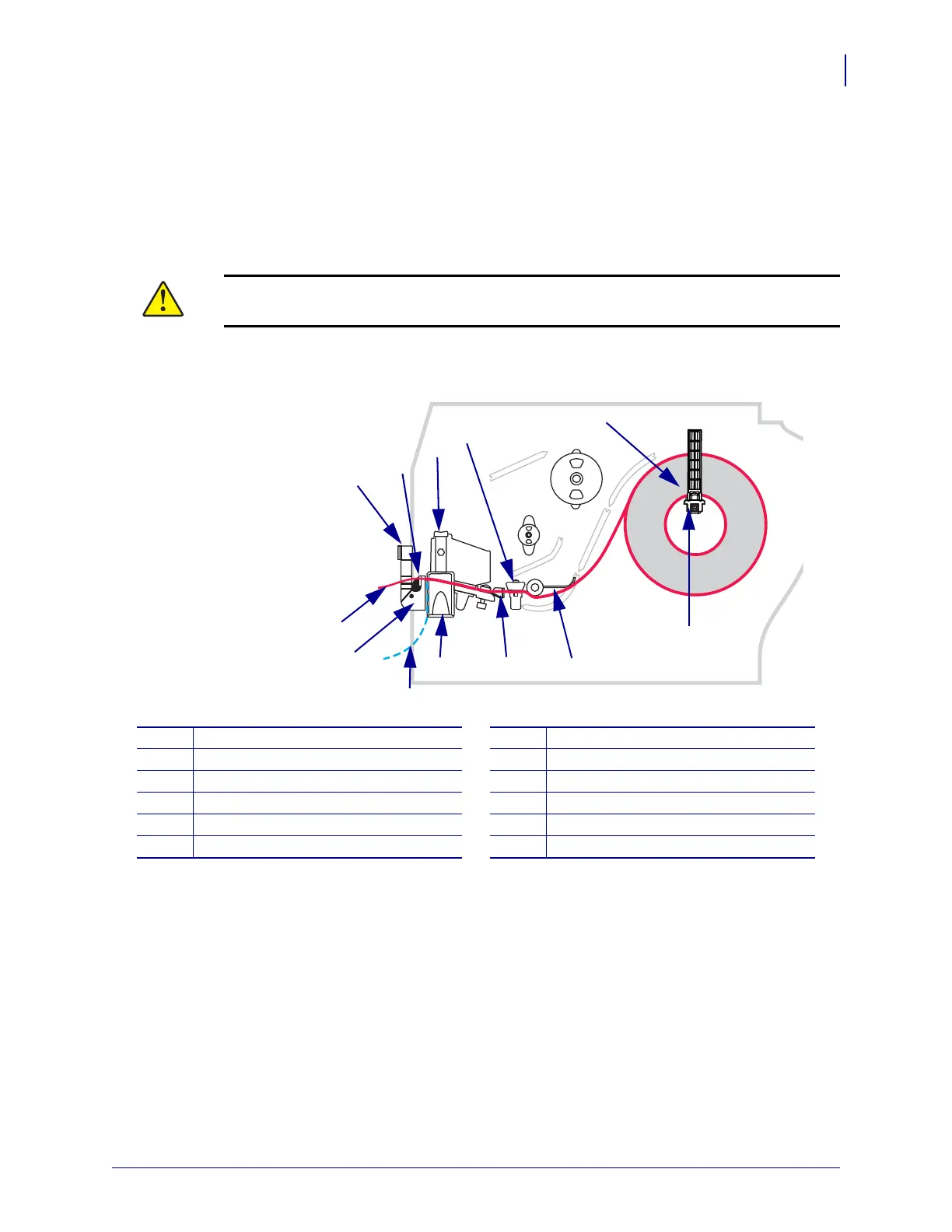

Figure 10 • Peel-Off Mode
Caution • Do not use your left hand to assist in closing the peel assembly. The top edge of
the peel roller/assembly could pinch your fingers.
4
5
6
789
10
11
12
1
2
3
1
Peel lever
7
Dancer
2
Tear-off/peel-off bar
8
Media guide
3
Printhead assembly
9
Printhead release latch
4
Transmissive sensor
10
Label liner
5
Media supply guide
11
Peel assembly
6
Media supply hanger
12
Label

Zebra S4M Specifications

General

Flash memory	4 MB
Internal memory	8 MB
Dimensions (WxDxH)	272 x 477 x 295 mm
Media types supported	continuous, die-cut, tag, black mark
Media thickness	0.076 - 0.15 mm
RS-232 ports	1
Standard interfaces	USB 2.0
Storage temperature (T-T)	5 - 40 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 85 %
Operating relative humidity (H-H)	20 - 85 %

Weight and Dimensions

Weight	12400 g
