• Configured IED Description (*.cid) for the IEC 61850 structure as needed
for the IED at runtime.
• IED Capability Description (*.icd) for the IEC 61850 structure, see Figure
66.
IEC08000416 V1 EN

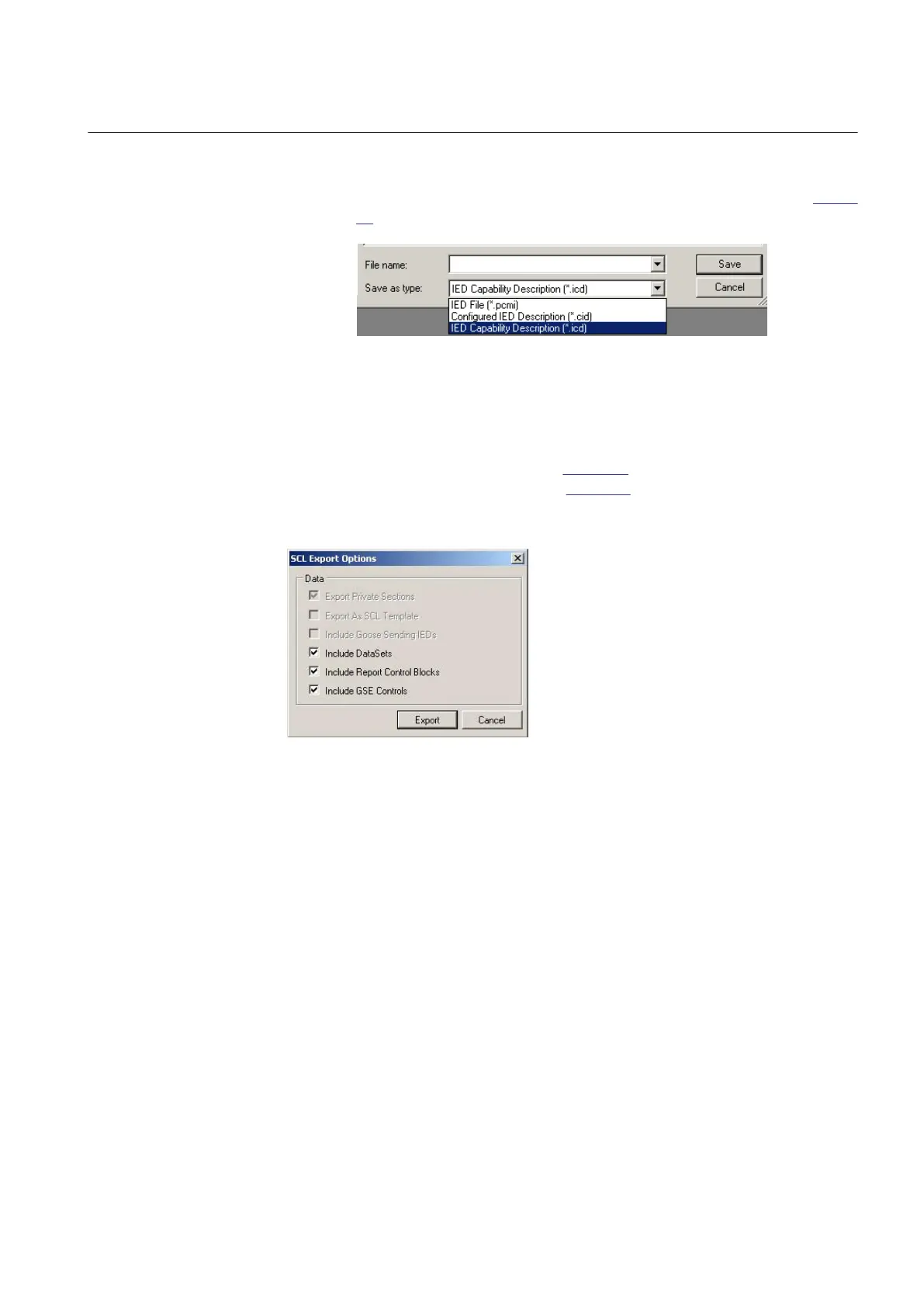

Figure 66: IEC 61850: Export IED file type selection
3. The SCL Export Options window opens.
4. Select Export Private Sections, Export As SCL Template or Include Goose
Sending IEDs and click Export, see Figure 67. Note that the options in SCL
Export Options window according to
Figure 67 is only available when an ICD file
is exported.
IEC08000418 V1 EN
Figure 67: IEC 61850: Export IED file Options
7.4 Engineering of vertical and horizontal communication
in IET600
For IEC 61850 engineering a separate system configuration tool is needed to be used
with PCM600. In PCM600 Ver. 2.3 or earlier the recommended tool is CCT600. In
PCM600 Ver. 2.4 or later the recommended tool is IET600, which is also included in
the PCM600 Engineering Pro installation package. In PCM600 Ver. 2.5, a lot of
engineering described below can be done in the PCM directly.
Procedure for signal engineering for the station by using IET600:
1. Create a project in IET600.
2. Import the SCD file exported from PCM600.
1MRK 511 284-UEN A Section 7
IEC 61850 communication engineering
650 series 95
Engineering manual
