ABB 650 series Engineering Manual

IEC09000613-2-en.vsd
IEC09000613 V2 EN

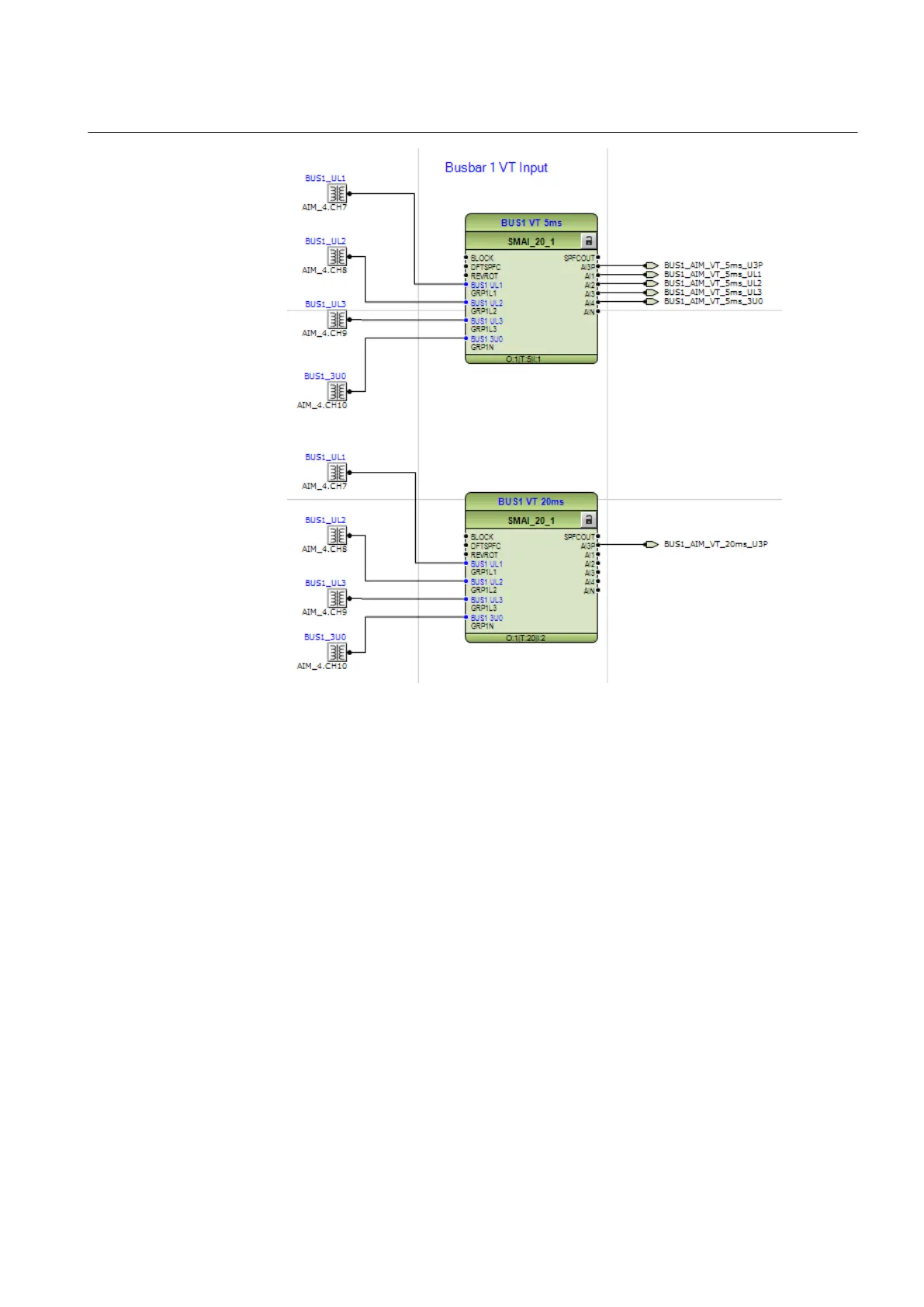

Figure 38: ACT: HW signal channels
5.1.8 Validation
Validation checks the application configuration on errors about the rules and
restrictions defined for doing a MainApplication on three levels.
• During creating the logic while doing a connection or placing a function block.
• On demand by starting the validation.
• When writing the application configuration into the IED.
Validation when creating the application configuration
Validation is made when creating the application configuration, for example:
• A connection between two input signals or two output signals is not possible.
• A connection between two different data types is not possible, for example a
binary output to an analog input.
1MRK 511 284-UEN A Section 5
Protection and control engineering
650 series 57
Engineering manual
