Please see the IET600 user manual for additional information about
vertical and horizontal station communication engineering.
7.5 Importing SCL files to PCM600
The IED engineering tool must be able to receive a SCD file or an ICD file as import
to receive the engineered communication extensions, for example for the different
IEDs.
7.5.1 Importing SCD files
Procedure to import a SCD file to PCM600:
1. Select the station in the plant structure.
2. Right-click the station and select Import ...
3. Select the file to be imported from the open standard Windows menu and start the
reading.
4. A SCL Import Options window opens, which queries how the file should be
handled during import, see
Figure 68.

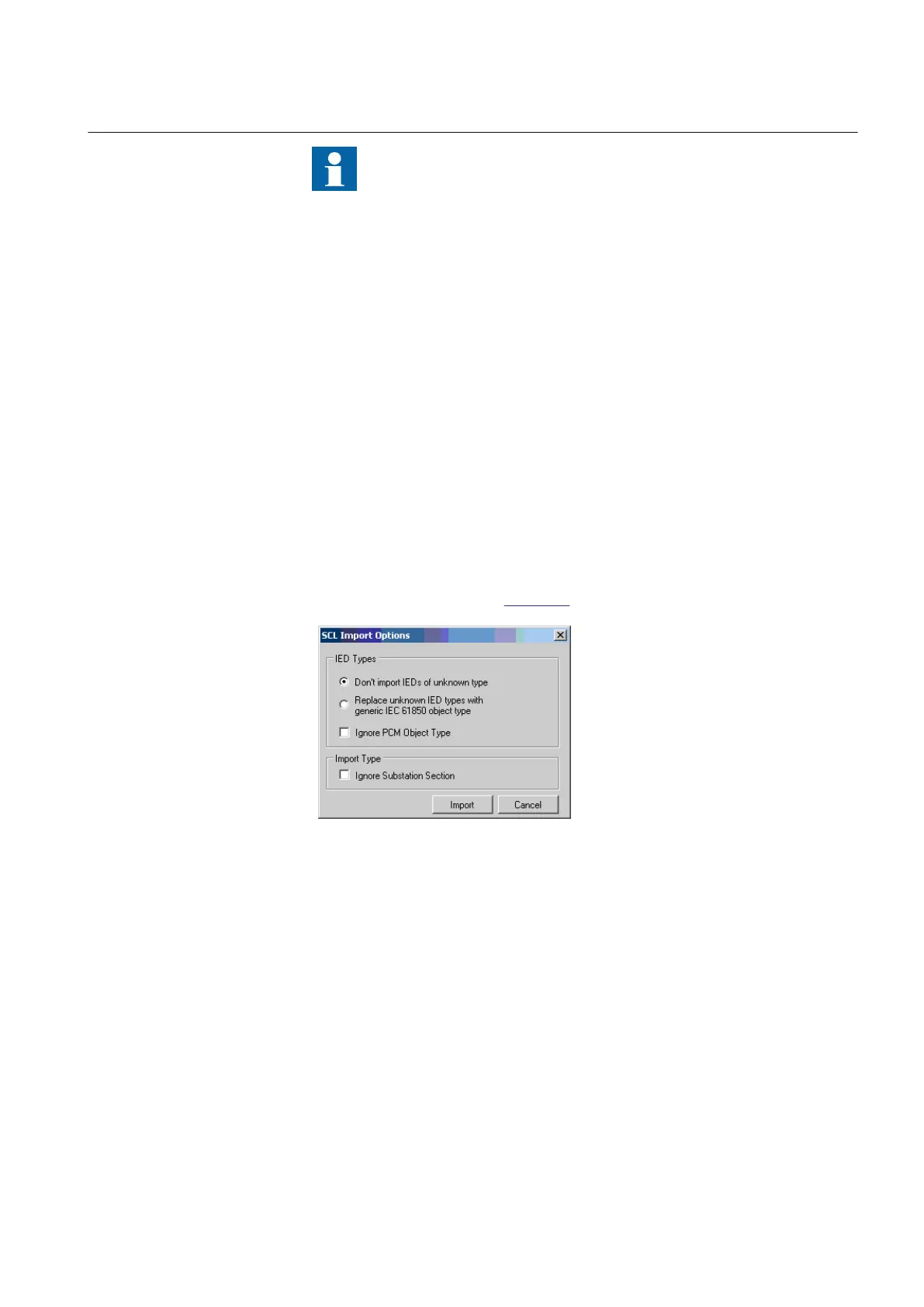

IEC09000631 V1 EN
Figure 68: IEC 61850: Import SCD file
4.1. Click Ignore Substation Section to not import the "SSD-file" part of the
SCD-file.
4.2. Click Don't import IEDs of unknown type to protect the existing IEDs in
case the SCD file does not match the original configuration in PCM600.
4.3. Click Replace unknown ... can be used when it is known, that the file
includes additional IEDs that are needed. The IED of type “Generic IEC
61850 IED” is used to integrate these kinds of IEDs in the plant structure
etc.
4.4. Click Ignore PCM Object Type to update the IED object(s) in PCM600
from the IED type(s) in the SCD file, disregarding if the IED type(s) in the
SCD file matches the IED object(s) in PM600 or not. (Can be used when
1MRK 511 284-UEN A Section 7
IEC 61850 communication engineering
650 series 97
Engineering manual
