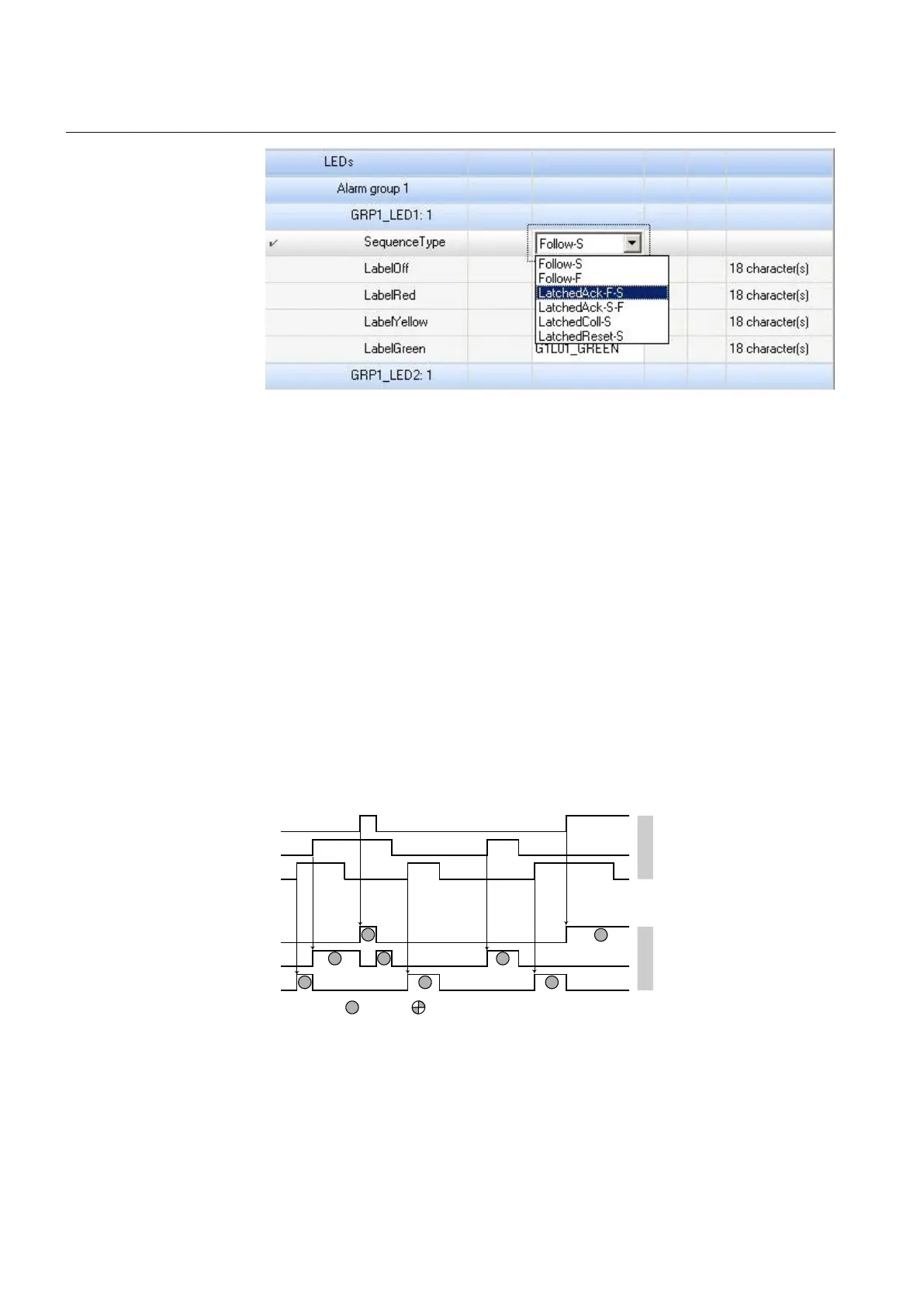

Figure 45: LHMI: LED operation mode
6.1.2 LED operation modes
Description of different operation modes for LEDs to be configured in Application
Configuration tool and Parameter Setting tool.
Six operation modes are listed in the drop down menu in Parameter Setting tool.
• Follow-S
• Follow-F
• LatchedAck-F-S
• LatchedAck-S-F
• LatchedColl-S
• LatchedReset-S
LED operation mode Follow-S
IEC08000395.vsd
= Steady = FlashIllumination =>
R
Y
G
R
Y
G
S
i
g
n
a
l
s
L
E
D
IEC08000395 V1 EN
Figure 46: LHMI: LED operation mode Follow-S
Section 6 1MRK 511 284-UEN A
Local HMI engineering
68 650 series
Engineering manual
