ABB 650 series Engineering Manual

IEC11000425-1-en.vsd
IEC11000425 V1 EN

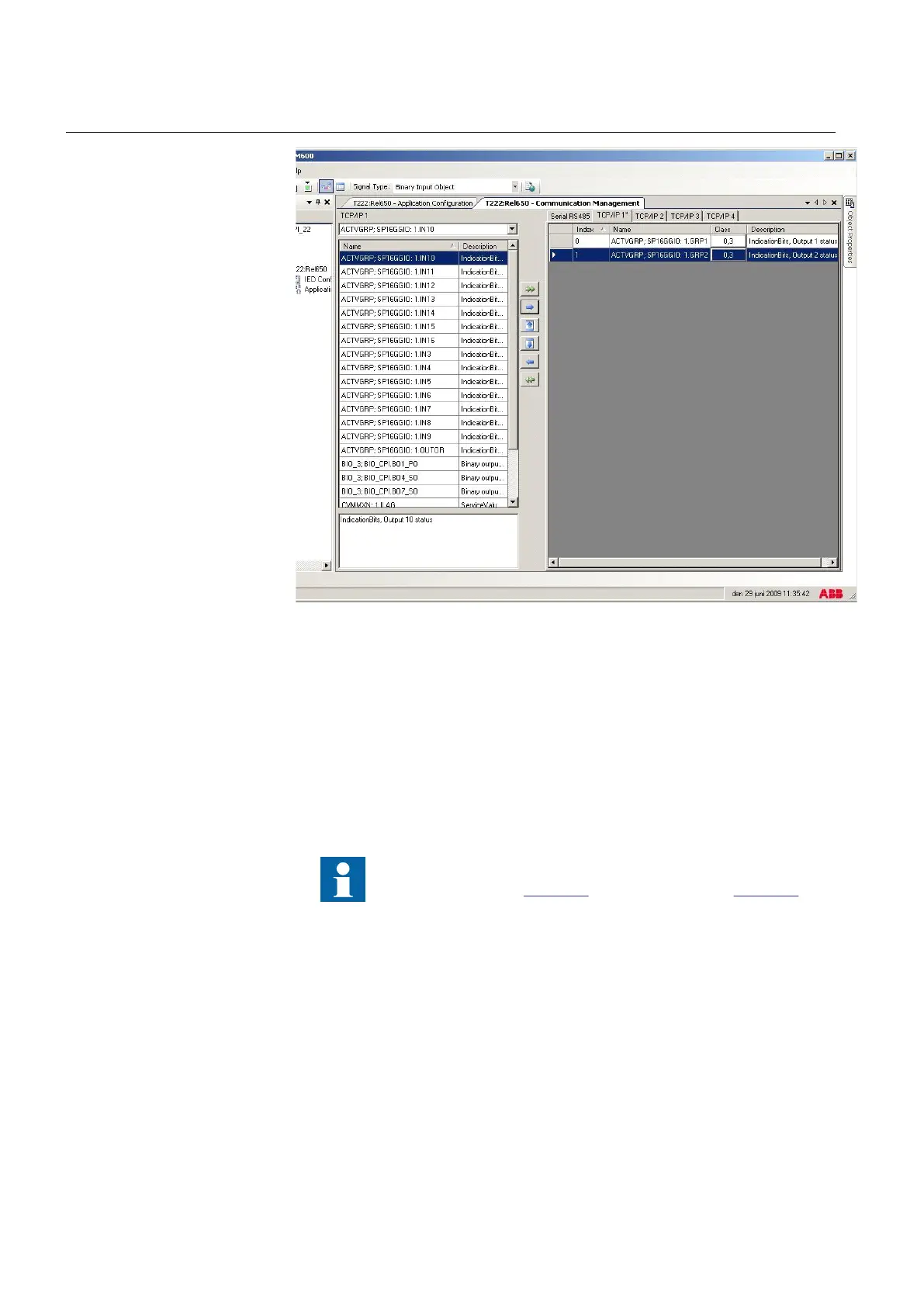

Figure 75: Selecting the signals into the DNP signal list
9.3 Configuring DNP3 protocol signals
1. Save the actual project configuration in PCM600 to make all signals visible for
CMT.
Direct configured hardware channels in the application
configuration (see Figure 76) appear in CMT (see Figure 77). Do
not configure these hardware channels to be sent by DNP3, as
they are not event-handled.
Section 9 1MRK 511 284-UEN A
DNP3 communication engineering
108 650 series
Engineering manual
