4.6 Building a plant structure
The plant structure is used to identify each IED in its location within the substation
organization. It is a geographical image of the substation and the bays within the
substation. The organization structure for the IEDs may differ from the structure of the
primary equipment in the substation. In PCM600 it is possible to set up a hierarchical
structure of five levels for the IED identification.
Build up the plant structure according to the project requirements. PCM600 offers
several levels to build the hierarchical order from Center down to the IEDs in a bay.
The following levels are available:
1. Project = Project name
2. Substation = Name of the substation
3. Voltage Level = identifies to which grid type or part in the substation the IED
belongs to
4. Bay = Bay within the voltage level
5. IED = selection of the IED, which is used in the bay. Several IEDs are possible
within a bay, for example one control IED and two protection IEDs.
IEC08000365 V2 EN

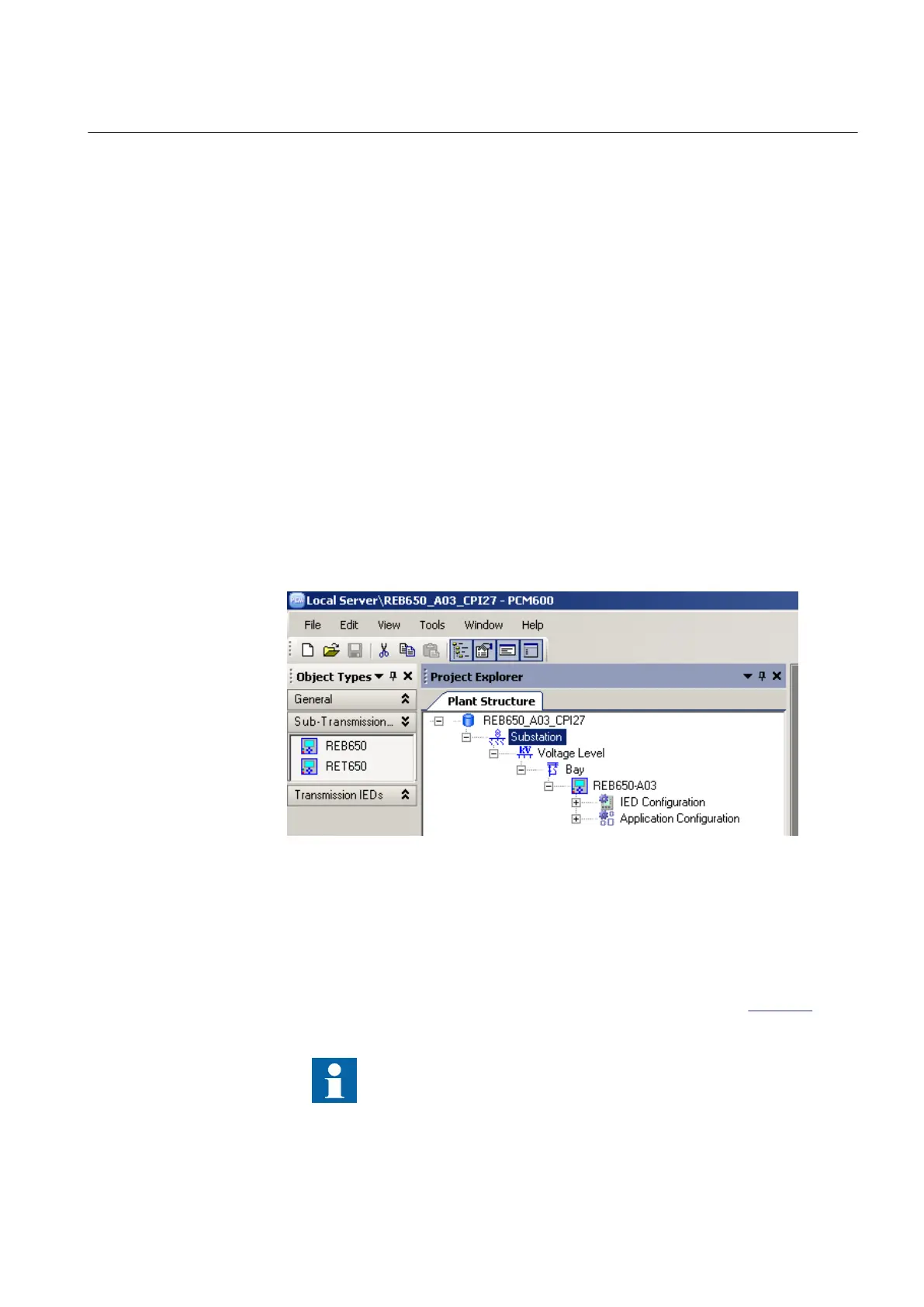

Figure 16: PCM600: Set up a plant structure
Once a plant structure is built the name of each level in the structure should be renamed
by the names/identifications used in the grid. Use the right mouse button to build the
plant structure by selecting the elements from the context menu. Rename the level
after insertion, using the Rename possibility or the Object Properties.
Figure 16 shows
the start of a project with two IEDs placed but still not renamed.
The plant structure corresponds to the complete grid including the
needed IEDs.
1MRK 511 284-UEN A Section 4
Setting up a project
650 series 33
Engineering manual
