Safety Instructions
14 ACS 600 MultiDrive
Fibre Optic Cables
WARNING! Handle the fibre optic cables with care (especially when
joining the shipping splits). When unplugging optic cables, always grab
the connector, not the cable itself. Do not touch the ends of the fibres
with bare hands as the fibre is extremely sensitive to dirt.
Cooling
WARNING! The cooling air flow and space requirements must be
fulfilled. Air flow from below (from a cable conduit) to the cabinet must
be prevented to ensure the degree of protection and fire protection.

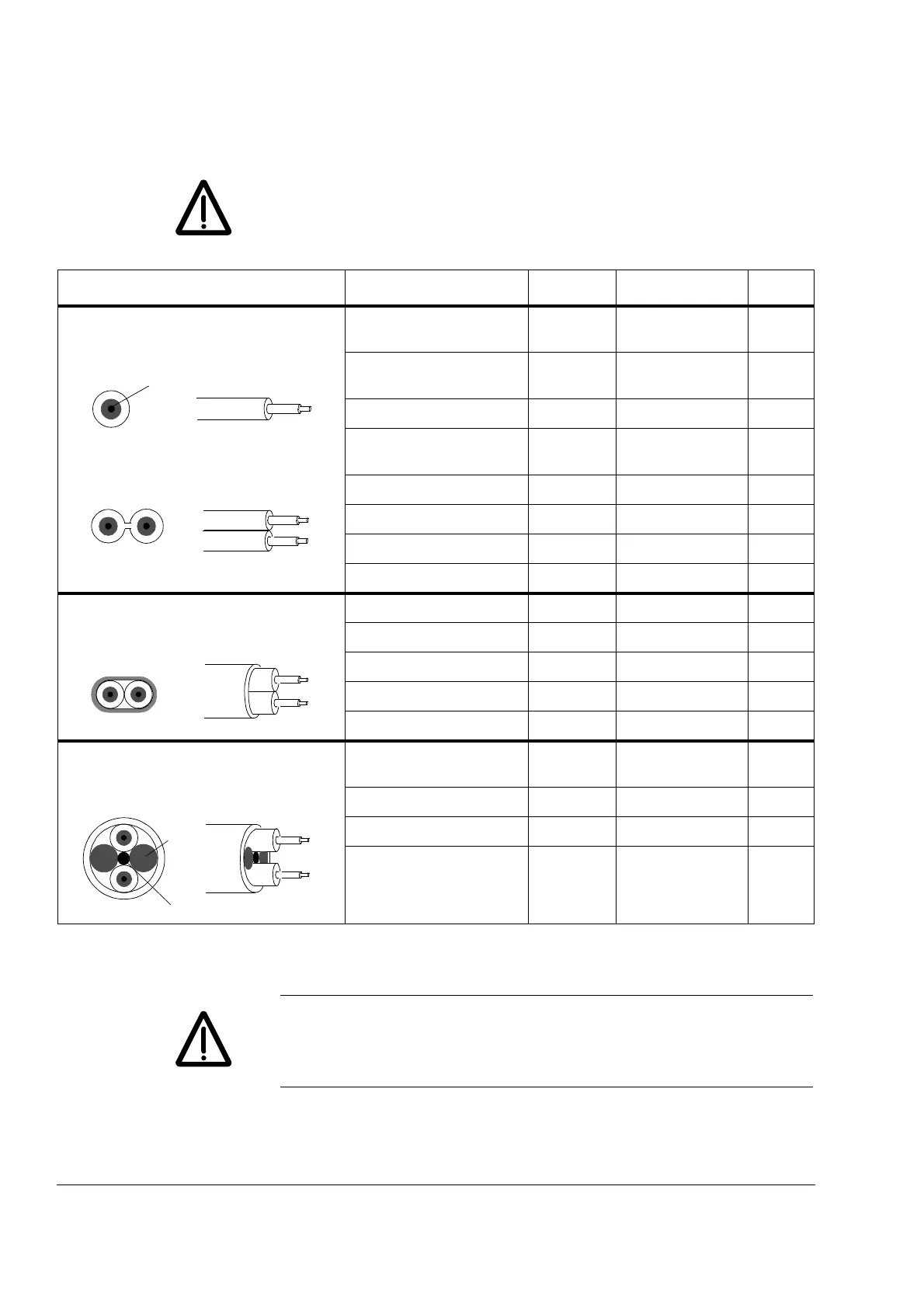

Cable Type Parameter Minimum Maximum Unit
Plastic Optical Cable (POF, fibre core
diameter 1 mm):
Storage and Operating
Temperature
-55 +85 °C
Simplex
Recommended Operating
Temperature
-40 +85 °C
Installation Temperature -20 +70 °C
Short Term Tensile Force Simplex: 50
Duplex: 100
N
Duplex (zipcord)
Short Term Bend Radius 25 mm
Long Term Bend Radius 35 mm
Long Term Tensile Load 1 N
Flexing 1000 cycles
Hard Clad Silica Oval Shape Duplex Cable
(HCS
â
, SpecTran, fibre core diameter
200 mm, outer dimensions 3.2 x 5.4 mm)
Storage Temperature -40 +80 °C
Operating Temperature -20 +80 °C
Short Term Tensile Force 46/205 lbs./N
Long Term Tensile Force 10/44 lbs./N
Bend Radius 25 mm
Hard Clad Silica 2-channel (Duplex) Cable
(HCS
â
, SpecTran, fibre core diameter
200 mm, outer diameter 7.5 mm):
Storage and Operating
Temperature
-40 +85 °C
Short Term Tensile Force 46/205 lbs./N
Long Term Tensile Force 10/44 lbs./N
Bend Radius 75 mm
Optical fibre
Filler
Strength member
