Advant Controller 450 Product Guide
Section 2.7 Drives Integration
3BSE 015 953R201 Rev B 2-7
2.7 Drives Integration
Connection to ACS 600, DCS 600 and DCS 500B drive systems is done via Advant Fieldbus
100. Each fieldbus node connects up to 24 drives via a S800 I/O Fieldbus Communication
Interface (FCI). A series of PC elements is used for sending/receiving data to/from the drives.
To minimize engineering efforts, a predefined type circuit is offered
2.8 Variable Speed Drive Control
Converters for both d.c. and a.c. motor drives can be connected to Advant Controller 450 via
Advant Fieldbus 100 or MasterFieldbus. For TYRAK, which has a built in modem for the
MasterFieldbus, the following limitations apply:
• the max. no. of convertors connected to the same LDB is 9.
• the max. no. of convertors connected to one Advant Controller 450 is 64.
2.9 Communication
Detailed information about the various networks and buses that can be integrated
in Advant Controller 450 is given in Product Guide for Advant OCS with Master Software,
Overview.
Below is a list of communication functions in Advant Controller 450.
Control Network
• MasterBus 300
• MasterBus 300E
Fieldbus Communication
• Advant Fieldbus 100
• PROFIBUS-DP
• RCOM/RCOM+
• Master Fieldbus
• L
ONWORKS Network Interface.

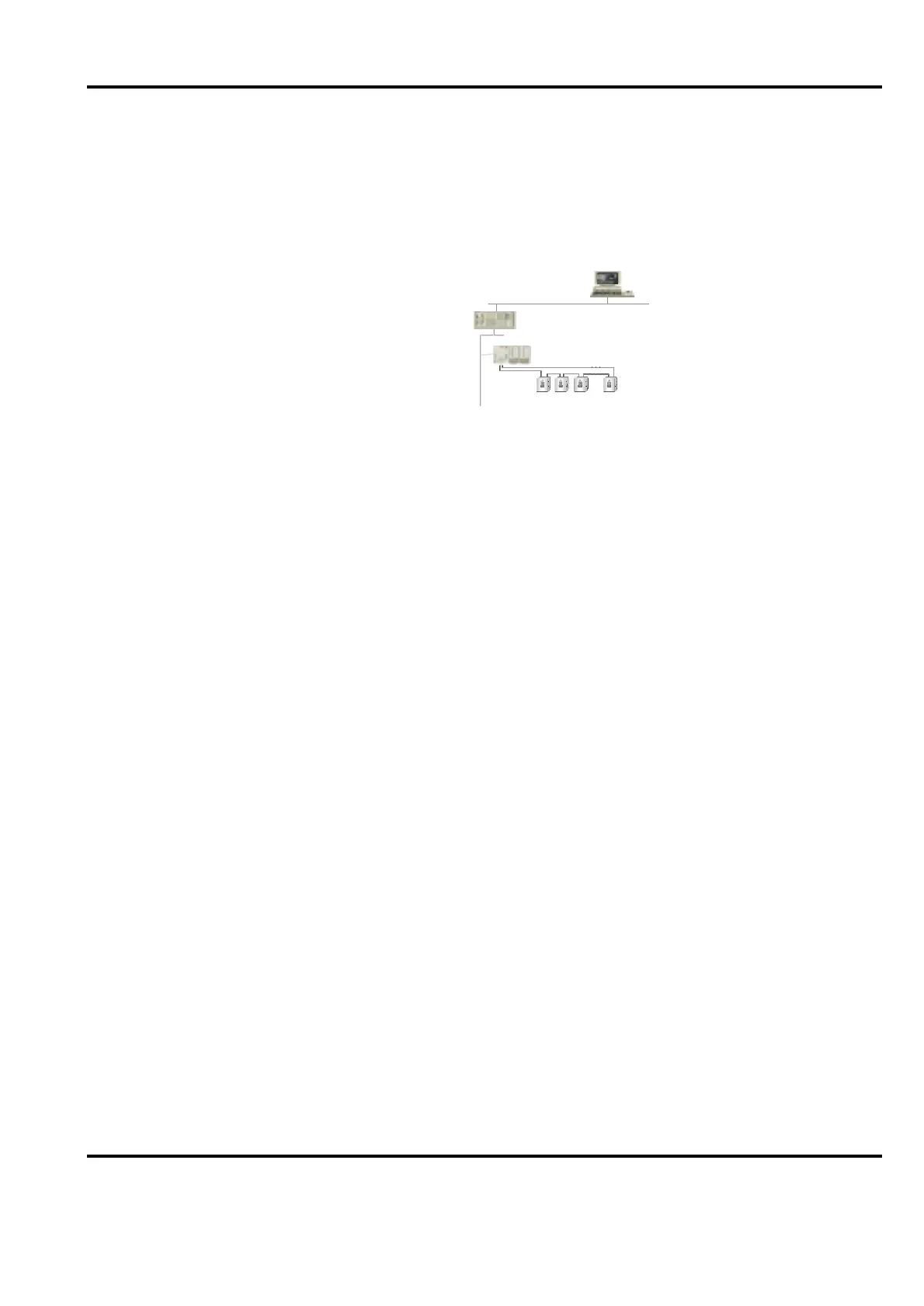

Figure 2-2.
$&6HULHVFRQILJXUDWLRQZLWKGULYHV
Advant Controller 400 Series
AF 100
I/O I/O
AdvaCom mand
S800 I/O
O ptic a l M o d u le B us
To Next Page
