Advant Controller 450 Product Guide
Chapter 4 Hardware Components
4-6 3BSE 015 953R201 Rev B
4.8 Communication
Below follows configuration examples for all buses in Advant Controller 450 showing how
the buses are connected to the controller.
4.8.1 Control Network
MasterBus 300 or 300E
NOTE
Bus redundancy can be achieved by using two single buses.
4.8.2 Fieldbus Communication
Advant Fieldbus 100 using Coaxial Media

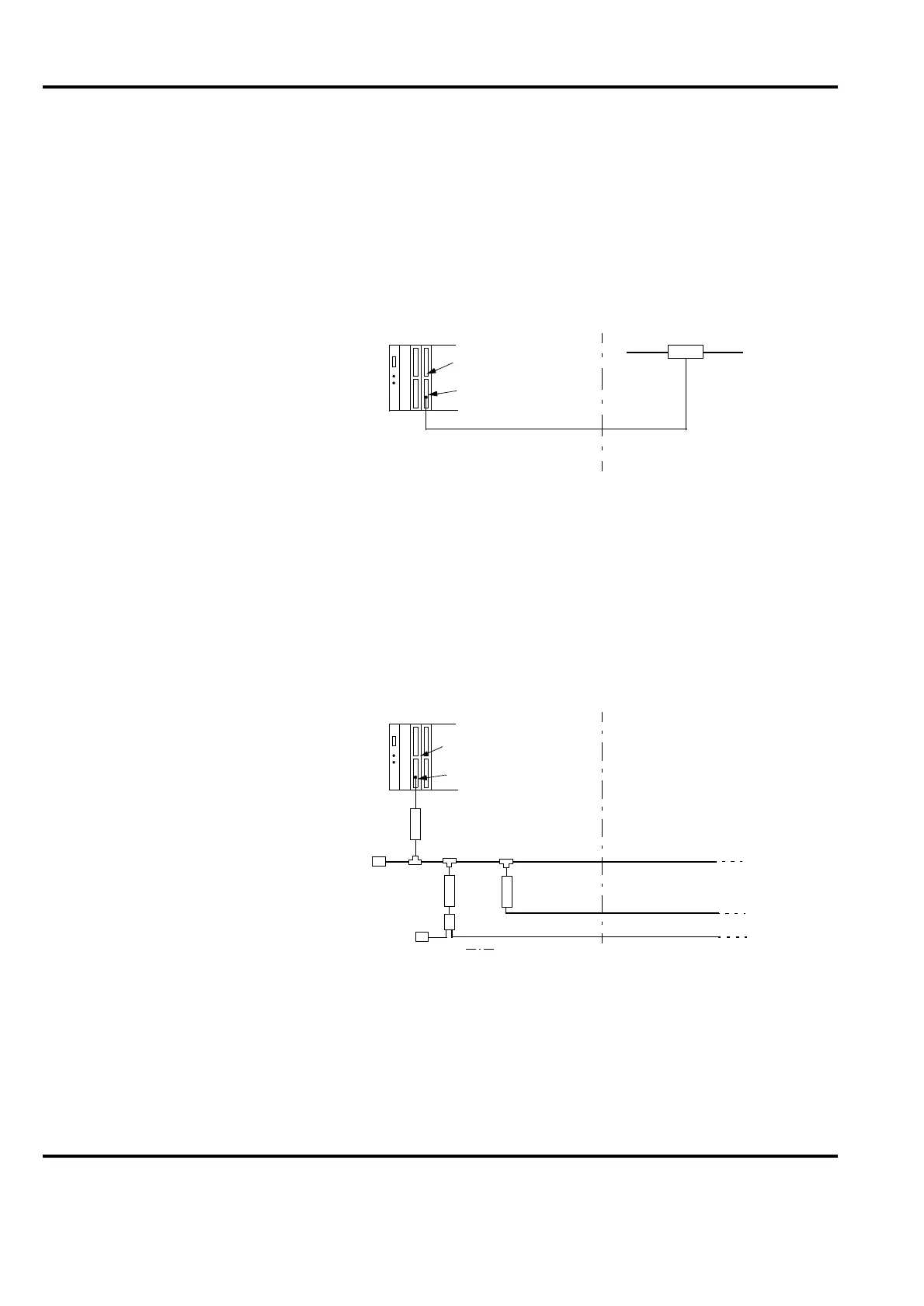

Figure 4-3. MasterBus 300/300E connected to Advant Controller 450
Figure 4-4. Advant Fieldbus 100 using Coaxial Media connected to Advant Controller 450
AC 450
TK576V015
SC510 or SC520
CS513
or TK576V115
Transceiver
AC 450
SC510 or SC520
CI522A
TK803
TC625
Twisted pair cable
Coaxial cable
Optical fibre
TC513V1
TC505
TC630
T
T
