Advant Controller 450 Product Guide
Chapter 4 Hardware Components
4-8 3BSE 015 953R201 Rev B
Advant Fieldbus 100 using Bus Redundancy
Only twisted pair media is shown.
NOTE
For connection to a coaxial bus 4 x TC 625 and 4 x TK516 are required instead of
2 x TC516 and 2 x TC505.
RCOM/RCOM+
NOTE
Bus redundancy can be achieved by using two single buses.

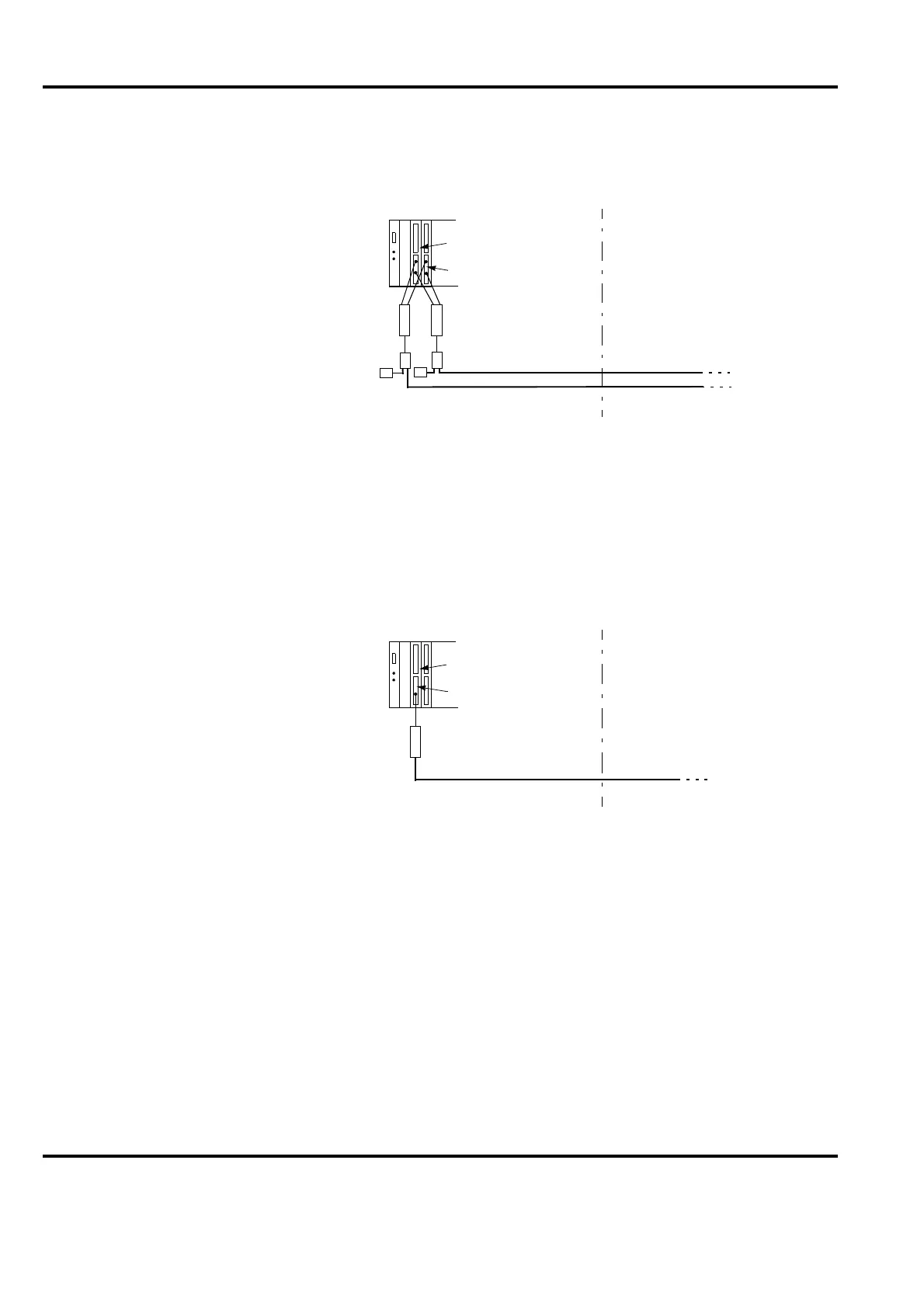

Figure 4-7. Advant Fieldbus 100 using Bus Redundancy connected to Advant Controller 450
Figure 4-8. RCOM/RCOM+ connected to Advant Controller 450
AC 450
SC510 or SC520
2 x CI522A
2 x TK803
TC516
Bus redundancy with
twisted pair media
TC505
T
T
TC505
TC516
2 x TK803
AC 450
SC510 or SC520
CI532V01
TC562
Single bus
TK595
