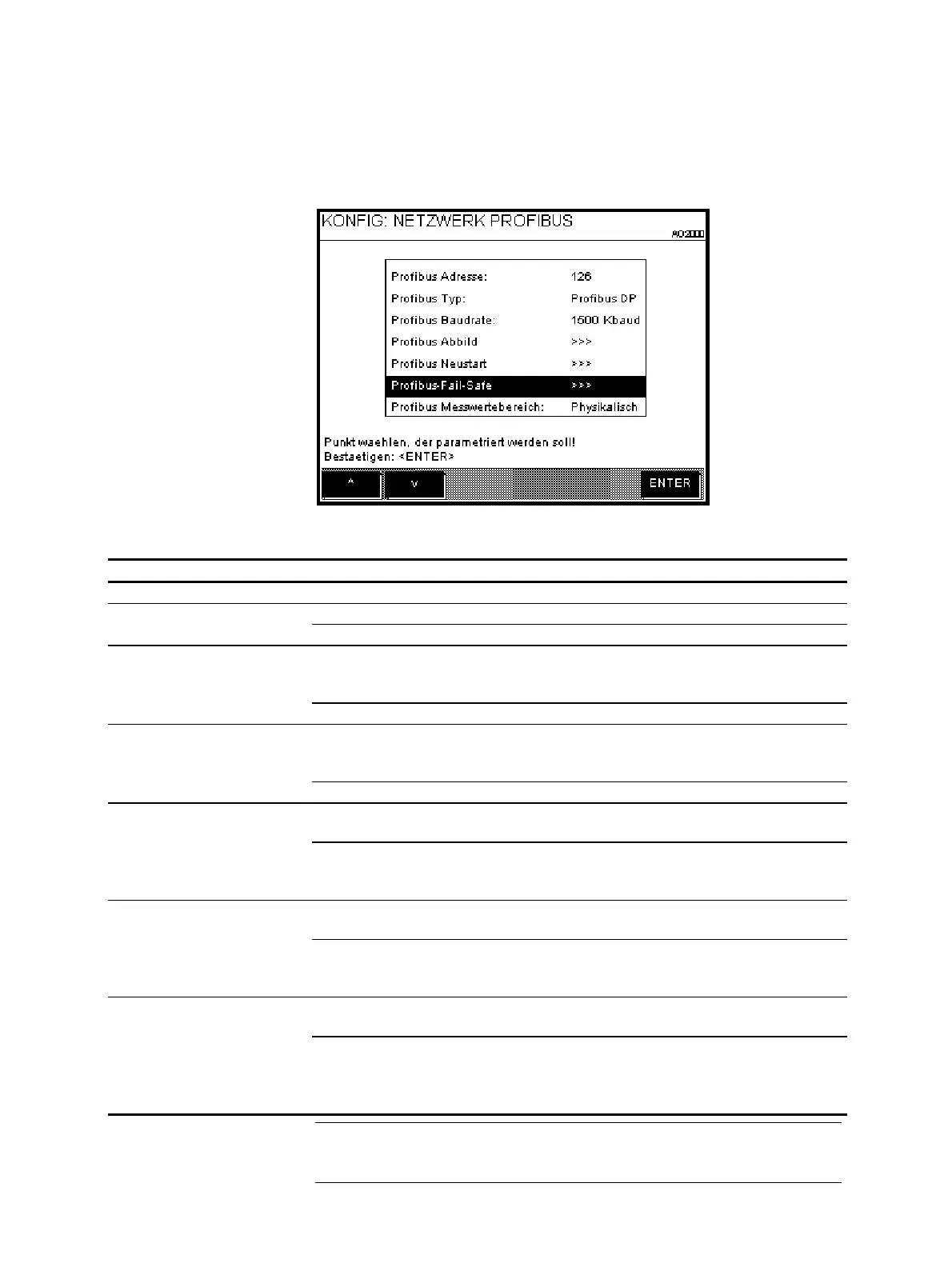

Configuring Profibus
Menu path
MENU → Configure → System → Network → Profibus
Parameters
Parameter Range selection
Profibus address
1 to 126
Profibus type
Profibus DP Connection to the RS485 interface
Profibus PA Connection to the MBP interface (non-intrinsically safe)
Profibus baudrate
RS485 interface automatically,
9600 Baud, 19200 Baud, 93750 Baud, 187.5 KBaud,
500 KBaud, 1500 KBaud, 3000 KBaud, 6000 KBaud
MBP interface set to 31250 Baud
Profibus map
Profibus inputs Measured values, Bus analog outputs, Analog inputs,
Analog outputs, Digital inputs, Bus digital outputs,
Digital outputs
Profibus outputs Bus analog inputs, Bus digital inputs
Profibus restart
Warm start With Warm start the Profibus stack is reset, compara-
ble with a power off/on.
Cold start With Cold start, all the parameters which are stored in
the Profibus stack as store parameters are reset to the
default value.
Profibus fail safe
Measured value The value of the Profibus function block comes after
the output value of the AO2000 function block.
Hold value The Profibus function block holds the last output value.
The display of the AO2000 function block may differ
from this.
Profibus meas. value
range
Physical The Profibus-AI value is the physical measured value for
AO2000.
VDI 4201 The physical measured values of AO2000 are scaled to
the range −10000 to 0 to +10000. 0 equals physically
zero and 10000 corresponds to the end value of the
indication range (according to VDI 4201).
NOTE
For additional information on "Profibus", refer to the Technical Information
"AO2000 Profibus DP/PA Interface".
