Value entry
Configuring value entry
Description
The source of the display element Value Entry is the function block Con-
stant that is automatically generated during configuration. The output of
this function block accepts the entered value.
For the entered value to be effective, the generated function block must be
linked (see Technical Information "Function Blocks – Descriptions and Con-
figuration" for detailed description).

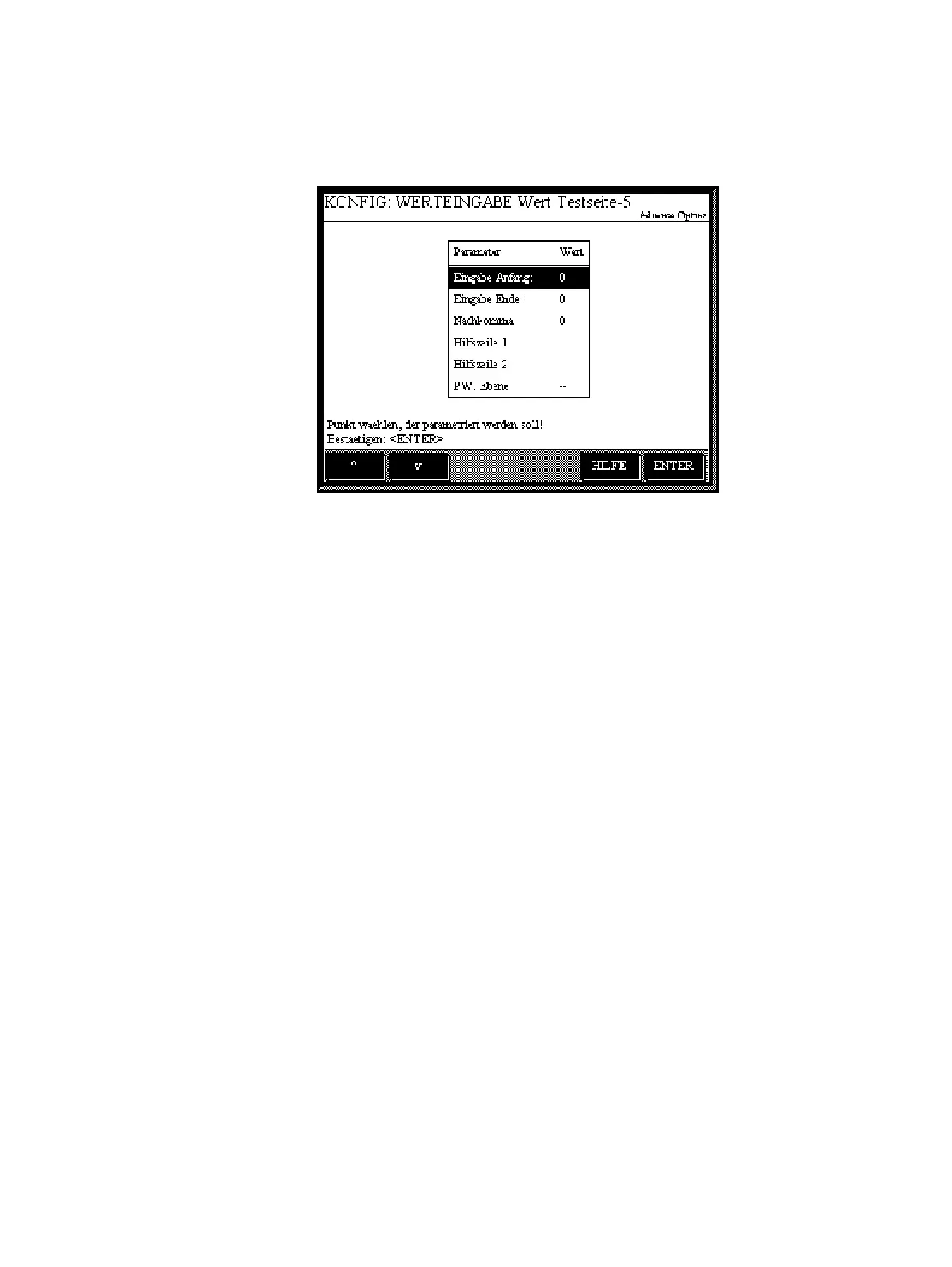

Configuration
The following are to be configured for the display element Value Entry
• the start and end of the entry range,
• the number of decimal places in the display,
• two lines of text that are displayed when the display element is used,
and
• the password level on which the entry value can be changed.
Use
Values are entered during measurement by pressing the number key that
corresponds to the position of the display element in the display and is in-
dicated above the display element. A field then appears for entering the
value (see section "Operating by value entry" (see page 147)). The display
element Value Entry accordingly represents a response to the actual value
entry.
