AO2000 CONTINUOUS GAS ANALYZERS | OI/AO2000-EN REV. B 93
Uras26: Gas connections
Gas connections

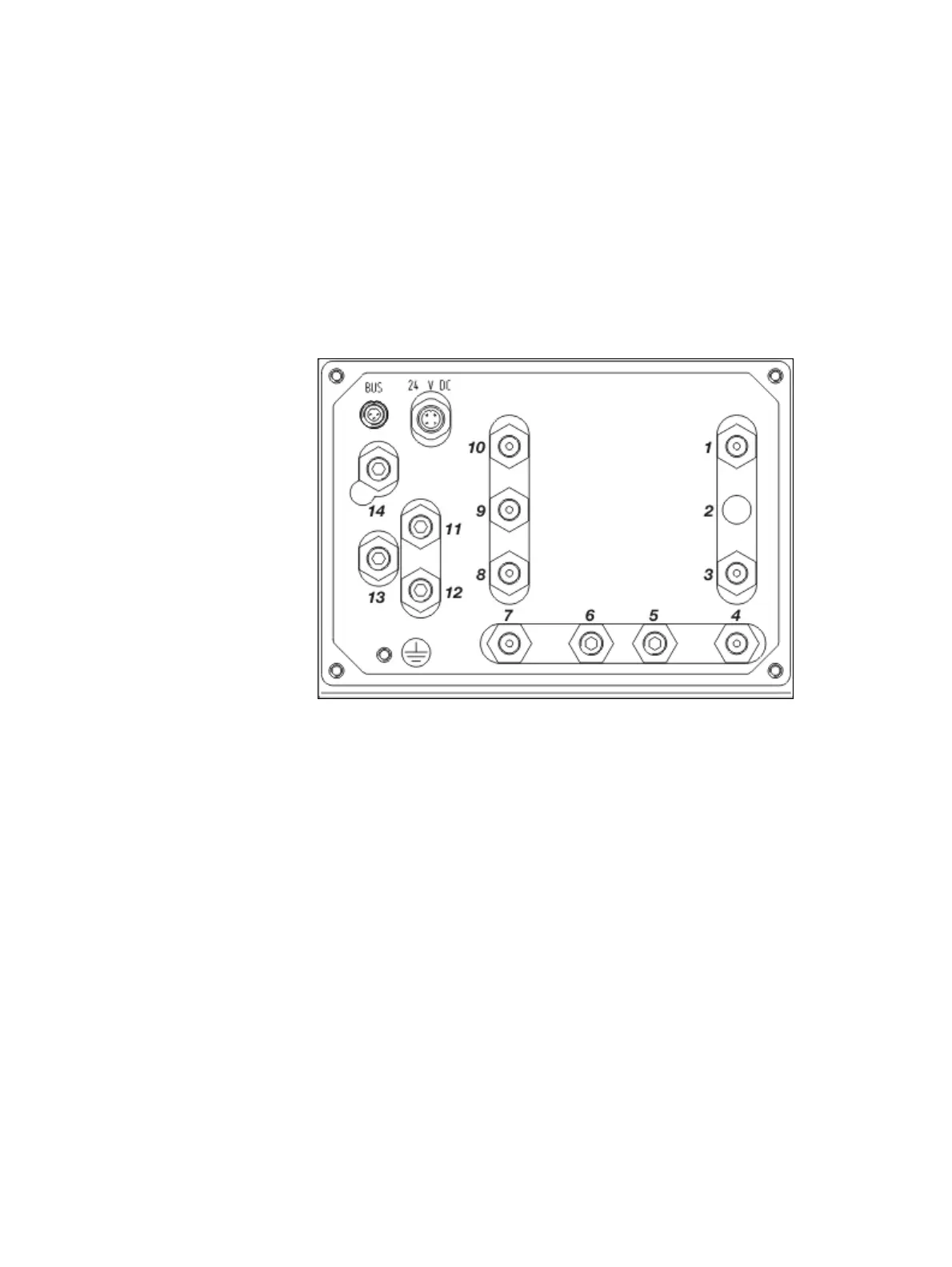

The following illustration shows the assignment of the gas connections as
an example for the three variants
A
1 gas path with 1 sample cell,
B
1 gas path with 2 sample cells in series and
C
2 separate gas paths with 1 sample cell each.
The assignment of the gas connections of a supplied analyzer module is
documented in the analyzer data sheet enclosed with the gas analyzer.
