4 Repair
4.7.3. Replacement of gearbox, axis 3
3853HAC022033-001 Revision: K
© Copyright 2004-2011 ABB. All rights reserved.

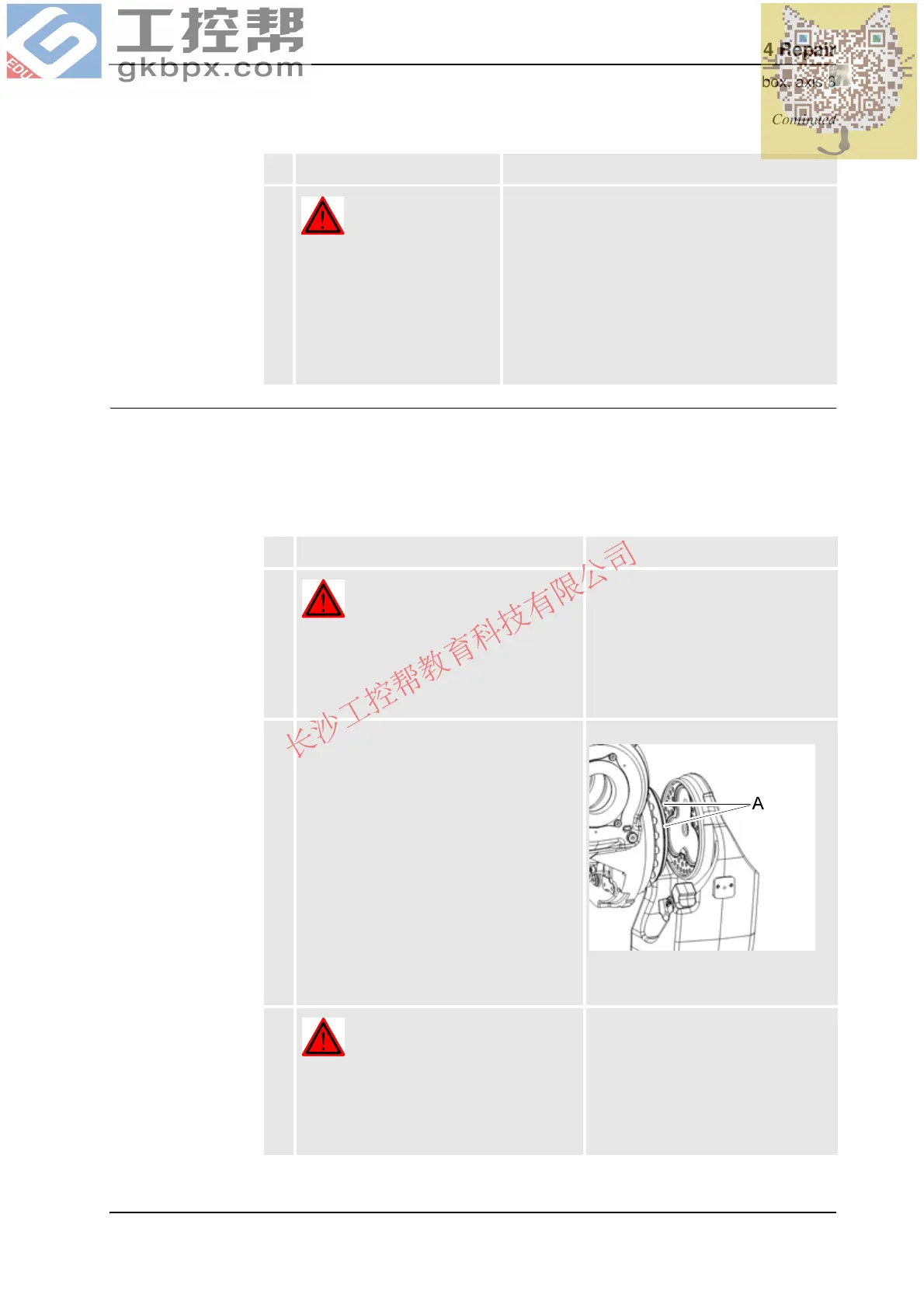

Refitting, gearbox axis 3 (Foundry Prime)
Robots working with Foundry Prime and that have the special tightness for this application
require special repair routines to maintain the tightness level.
The repair must be done according to the repair chapter in the Product Manual with the
following additions.
15.
DANGER!
Make sure all safety require-
ments are met when performing
the first test run. These are
further detailed in the section
DANGER - First test run may
cause injury or damage! on
page 47.
Action Note
Action Note
1.
DANGER!
Turn off all electric power, hydraulic and
pneumatic pressure supplies to the robot!
For Foundry Prime robots: Do not turn off the
air pressure to motors and SMB.
2. Apply Mercasol on surfaces on lower arm and
gear before assembly.
Area where Mercasol shall be applied:
• gaps around screw heads and
washers.
xx0600003138
• A: Apply Mercasol 3106 on
surfaces
3.
DANGER!
Make sure all safety requirements are met
when performing the first test run. These are
further detailed in section DANGER - First test
run may cause injury or damage! on page 47.
Continued
To Next Page
