2.2. Robot transportation precautions
553HAC022033-001 Revision: K
© Copyright 2004-2011 ABB. All rights reserved.
Method 2
Transportation according to method 2 is approved by ABB, if use of method 1 is not
possible.
Always follow these instructions when transporting an ABB robot according to method 2:
• Always read and follow the instructions in section Securing the robot on page 61
• Always place the robot in the ABB recommended transport position for robot with
tool, detailed in sub section Transport position with a transport support on page 57.
• Always use the recommended transport support detailed in sub section Recommended
transport support on page 59.

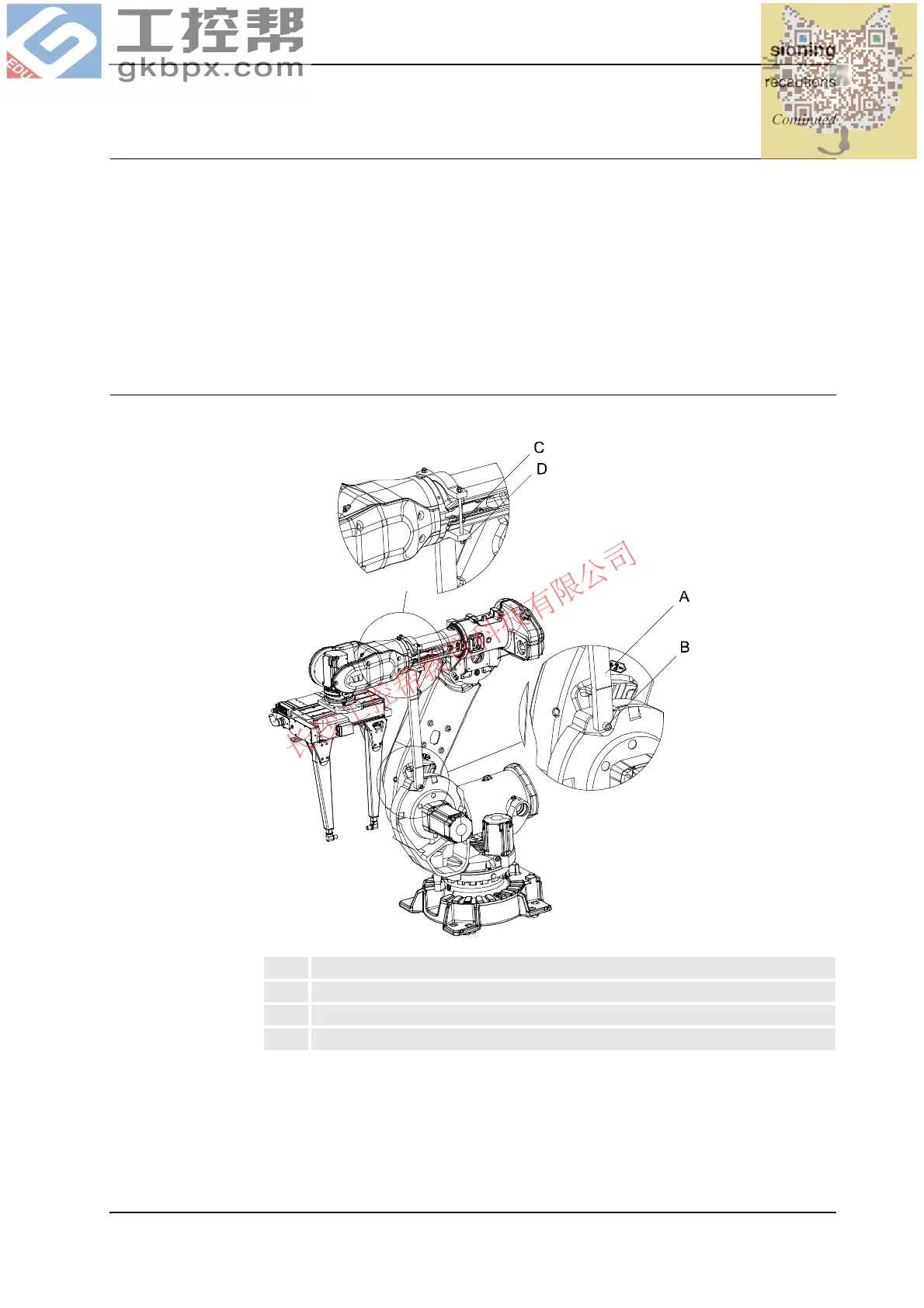

IRB7600/IRB66XX
xx0800000037
A Transport Support
B Hexagon socket head cap screw M16x140
C Threaded bar M10x200
D Nut M10
