Softstarters Type PSE18...PSE370 Installation and commissioning manual 1SFC132057M020138 Chapter 5
5.2.4.4 Reset event, terminal 10
The reset control terminal 10 is in circuit with terminals 11 or 12 used for remote
reset of trip events. See gures 5.13 and 5.14.
Warning!
Do not connect an external voltage to any of the control terminals 8, 9, 10,
11, 12 and 13. Failure to observe the above may damage the softstarter and
the warranty may no longer be valid.

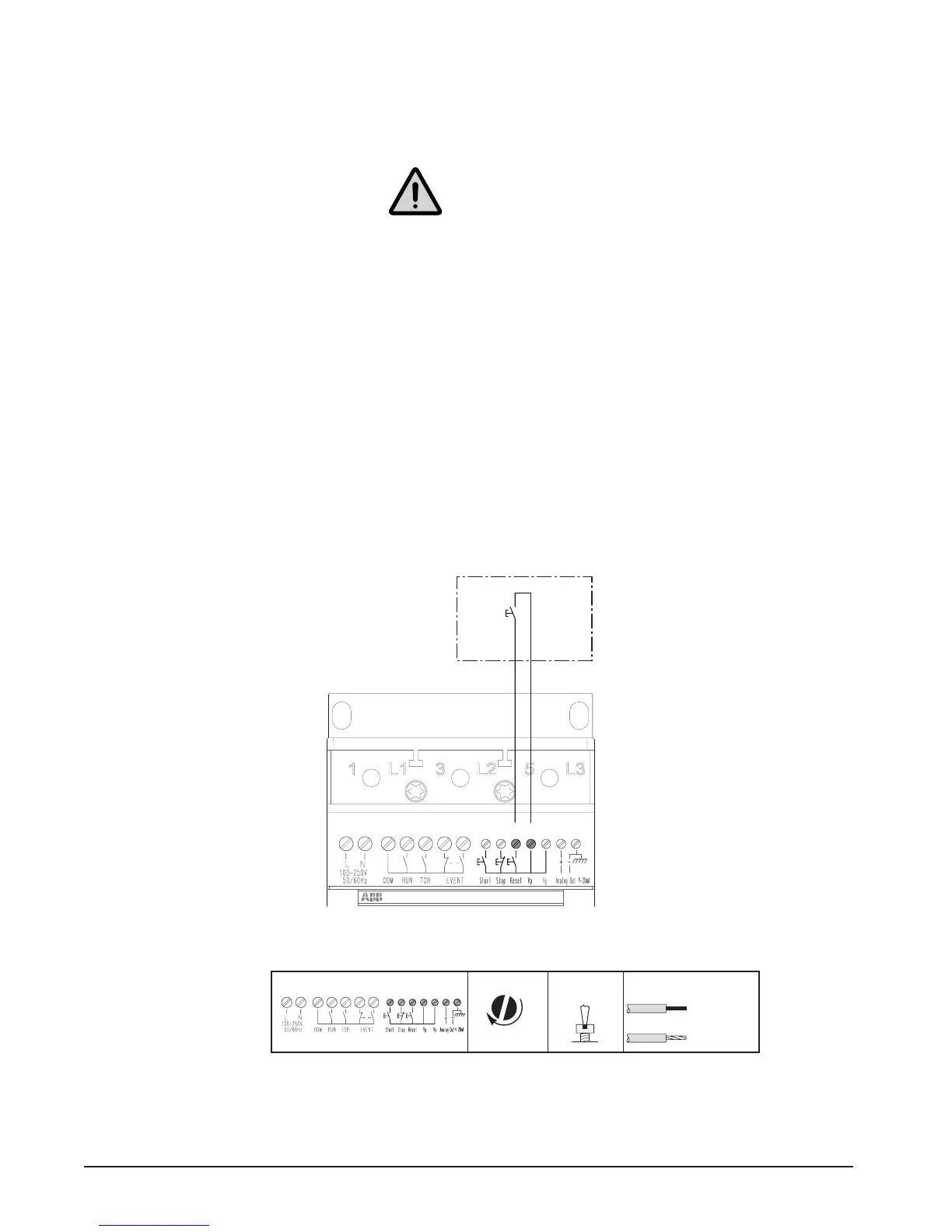

Figure 5.13: Terminal for reset event
12 34567
8910 11
12 13
0,2 .. 2,5 mm
2
2x0,2 .. 1,5 mm
2
0,2 .. 2,5 mm
2
2x0,2 .. 1,5 mm
2
AWG 24 ... 12
0,5 Nm - 4,3 lb.in
3,5 x 0,6 mm
(0.138 x 0.024 in)
M3
14
Figure 5.14: Tightening torques and wire area
PSE 18-600-70
812 34567 91011121314
Reset
