Softstarters Type PSE18...PSE370 Installation and commissioning manual 1SFC132057M020140 Chapter 5
12 34567
8910 11
12 13 14
0,2 .. 4 mm
2
2x0,2 .. 1,5 mm
2
0,2 .. 4 mm
2
2x0,2 .. 1,5 mm
2
AWG 24 ... 12
0,5 Nm - 4,3 lb.in
4 x 0,8 mm
(0.157 x 0.031 in)
M3

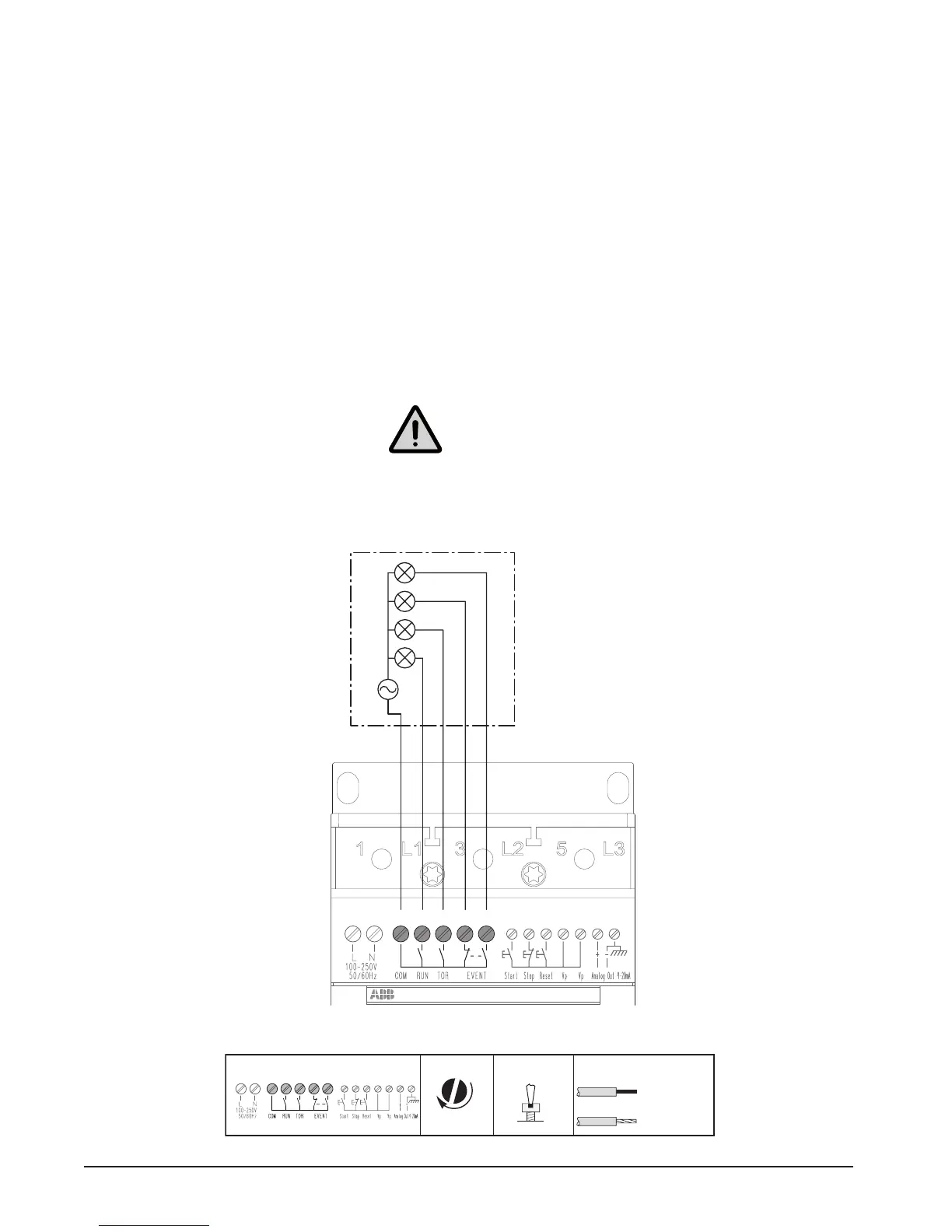

Figure 5.18: Tightening torques and wire area
Figure 5.17: Terminals for status output signals
5.2.4.6 Status output relays, terminals 3, 4, 5, 6, and 7
By connection to terminals 3, 4, 5, 6, and 7, RUN, TOR and EVENT are available
for a contactor, a PLC or a status indicator, which can use these signals as an
input.
The COM connection on terminal 3 is a shared neutral connection for terminals 4,
5, 6, and 7.
Run signal is given from terminal 4 during start ramp, running, and stop ramp if
used. It can be used to control the line contactor.
Top of Ramp (TOR) signal is given from terminal 5 when full voltage to the motor is
applied.
The event relay is available as normal closed outlet on terminal 6 and normal open
outlet on terminal 7. It is indicating a present fault or protection. The event signal
can be used as input for a status indicating lamp or a LED.
For connection see gures 5.17 and 5.18.
Warning!
The same external voltage (24 V DC or 110-250 V AC) must be connected to
the output relay terminals 3, 4, 5, 6 and 7. Failure to observe the above may
damage the softstarter and the warranty may no longer be valid.
PSE 18-600-70
812 34567 91011121314
AC
