5.3.1.2 Transfer of parameters
To transfer (copy) parameters from one PSE Softstarter to another, connect the
External keypad to the chosen softstarter and follow the sequence below. For
more information about navigating, see Chapter 6 in this manual. The Transfer
Parameter menu is hidden and only possible to reach when the external keypad is
connected to the softstarter. Start in Settings Level with cursor on I
e
icon. Press
Arrow Up to enter Transfer Parameter menu, and the text tP will be displayed on
the LCD.
5.3.1.2.1 Transfer of parameters from softstarter to external keypad
Transfer of parameters from softstarter to external keypad is possible in all states,
except during ramping. During ramping it is not possible to enter the TP menu.
When you are in the Transfer Parameter menu conrm and continue by pressing
Select. A text toSS will now be present on the LCD display. Scroll to FrSS and
conrm selection by pressing Select key, and the text FrSS will now be ashing.
Continue and transfer by pressing Select. If the transfer was successful, the text
donE will be displayed on the LCD, otherwise a fault code will be displayed. Press
Exit or select to return to Transfer Parameter menu. Press then exit for returning to
a higher menu level.
5.3.1.2.2 Transfer of parameters from external keypad to softstarter
Transfer of parameters from external keypad to softstarter is possible only in
standby state. During ramping, it is not possible to enter the TP menu. If transfer
of parameters is done during TOR, a fault code will be displayed.
When you are in the Transfer Parameter menu conrm and continue by pressing
Select. A text toSS will now be present on the LCD display. Conrm selection of
toSS by pressing Select key and the text toSS will now be ashing. Continue by
pressing select. If valid parameters will be accepted, a value for parameter Rated
Motor Current Ie will be displayed, otherwise a fault code will be displayed. Scroll
and select a setting for Ie, see chapter 7.5.1. Conrm selection and save by
pressing Select. If transfer is performed, the text donE will be displayed, otherwise
a fault code will be displayed. Press Exit or Select to return to Transfer Parameter
menu. Press Exit for returning to a higher menu level.
A list showing all parameters which will be transferred is available in chapter 7.3
List of available parameters.
The parameters Rated Current of the motor and PSE will not be transferred.
Display Description
Transfer Parameter
Transfer of parameters from external keypad to
softstarter
Transfer of parameters from softstarter to external
keypad
Conrmation of successful transfer
How to operate the External keypad, see Chapter 6 Human-Machine Interface
(HMI).

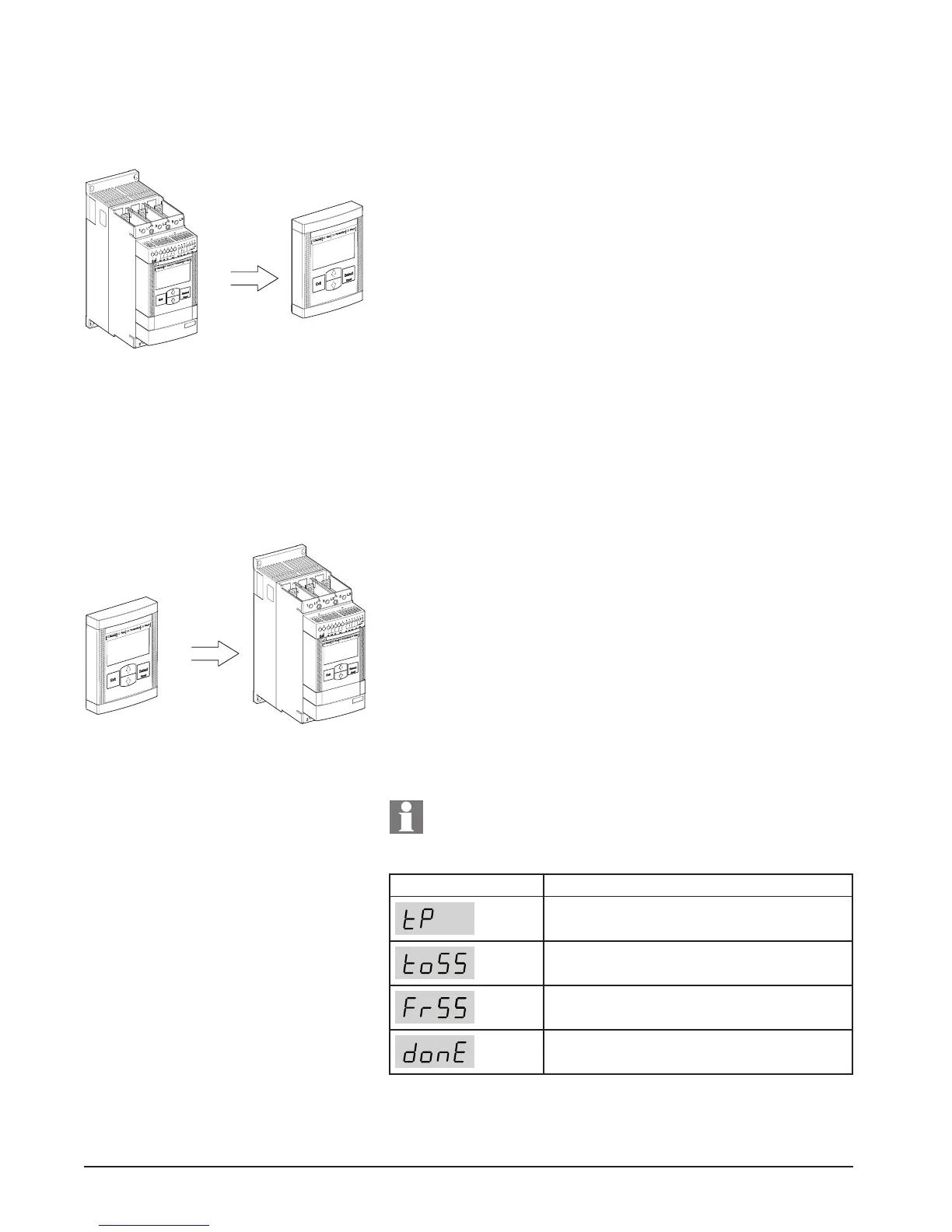

Figure 5.22: Transfer of parameters from external
keypad to softstarter
Figure 5.21: Transfer of parameters from softstarter
to external keypad
PSE 18-600-70
1SFC132292F0001
PSE 18-600-70
1SFC132293F0001
