Softstarters Type PSE18...PSE370 Installation and commissioning manual 1SFC132057M0201 39 Chapter 5
PSE 18-600-70
812 34567 91011121314
12 34567
8910 11
12 13
0,2 .. 2,5 mm
2
2x0,2 .. 1,5 mm
2
0,2 .. 2,5 mm
2
2x0,2 .. 1,5 mm
2
AWG 24 ... 12
0,5 Nm - 4,3 lb.in
3,5 x 0,6 mm
(0.138 x 0.024 in)
M3
14

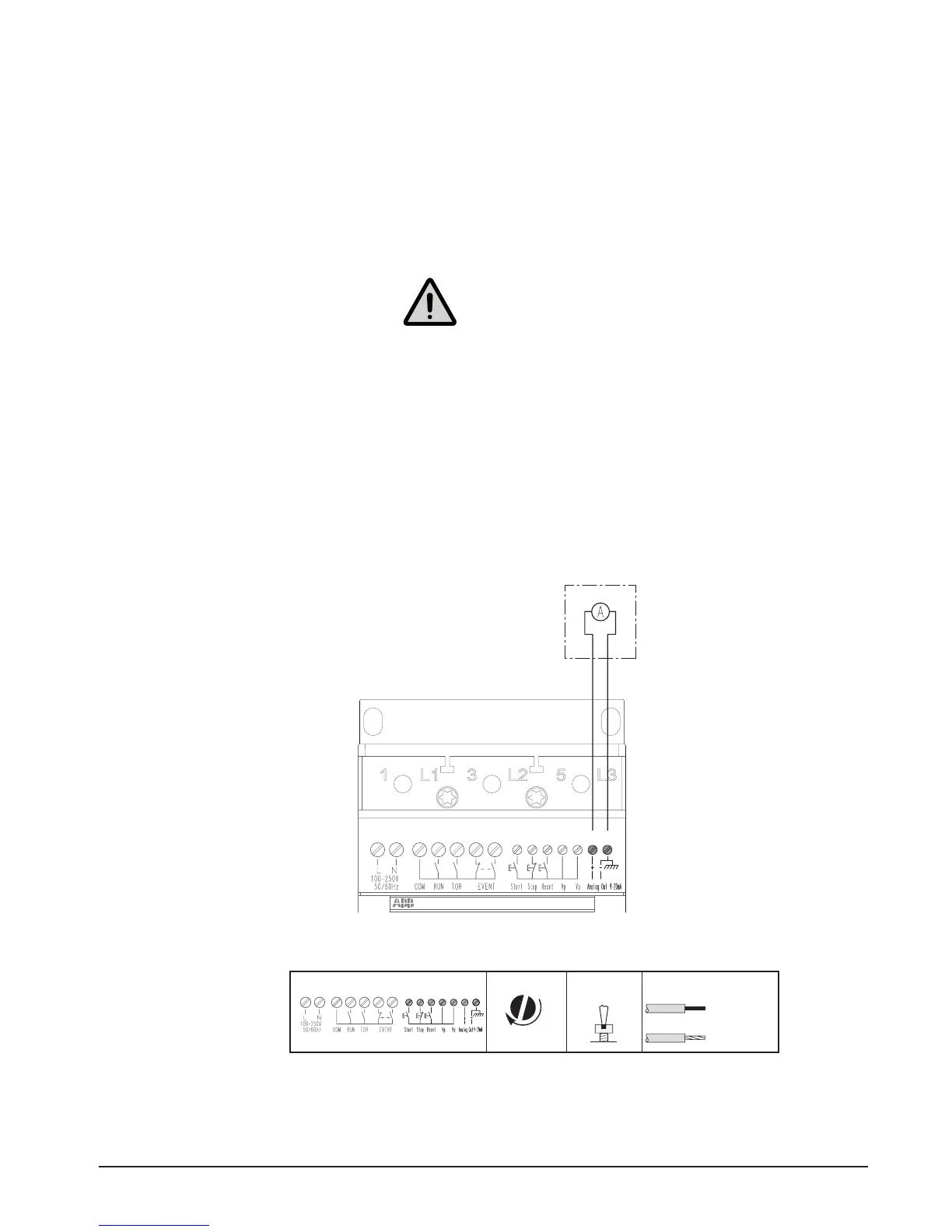

Figure 5.16: Tightening torques and wire area
Figure 5.15: Terminals for analog output
5.2.4.5 Analog output, terminals 13 and 14
Analog output can be used for the connection of analog instruments.
If the analog output is used, the cables shall be connected to terminals 13 (+) and
14 (-). See gures 5.15 and 5.16.
Analog out signal can vary in the range 4 - 20 mA, corresponding to 0 - 120 per-
cent of set value for parameter I
e
. 100 percent corresponds to 17.3 mA.
Warning!
Do not connect an external voltage to any of the control terminals 8, 9, 10,
11, 12 and 13. Failure to observe the above may damage the softstarter and
the warranty may no longer be valid.
