3.6.4 Switch groups
In configuration C, the switch group function blocks are organized in four groups:
binary inputs, internal signal, GOOSE as well as binary outputs and LEDs.
Binary Outputs and LEDs
GOOSE
Binary Inputs Protection and Control
GOOSE
GOOSE
GOOSE
Binary Inputs
(1...3, 4...9*)
Received GOOSE
(0...19)
ISWGAPC3
INRPHAR1_BLK2H
OSWGAPC2
OSWGAPC1
OSWGAPC16
OSWGAPC15
OSWGAPC14
OSWGAPC13
OSWGAPC12
OSWGAPC11
SELGAPC4
LEDs
SELGAPC3
Binary Outputs
OSWGAPC10
OSWGAPC9
OSWGAPC8
OSWGAPC7
OSWGAPC6
OSWGAPC5
OSWGAPC4
OSWGAPC3
Binary Outputs
(1...6, 7..9*)
LEDs
(1…8)
DPHLPDOC1
DPHLPDOC2
DPHHPDOC1 PHIPTOC1
EFHPTOC1 DEFLPDEF1
DEFLPDEF2
NSPTOC1
DEFHPDEF1
NSPTOC2
INTRPTEF1 PDNSPTOC1
ROVPTOV1 ROVPTOV2
ROVPTOV3 T1PTTR1
INRPHAR1
CBXCBR1 DARREC1*
TCSSCBR1 TCSSCBR2
CCBRBRF1
Internal Signal
SELGAPC1
Binary Inputs
ISWGAPC2
ISWGAPC1
SELGAPC2
Blocking
TCS Blocking
ISWGAPC9
GOOSE Blocking
ISWGAPC10
GOOSE Block CB
Alarm
Trip
Start
Master trip
ISWGAPC5
Basic
Angle Control
ISWGAPC4
DARREC1_PROT_CRD
* Optional Function
CBPSOF1
OSWGAPC17
CBPSOF1_Initiation
GUID-EB1D6B16-8E51-4EF4-B6FF-47FCDF6ABF3D V2 EN

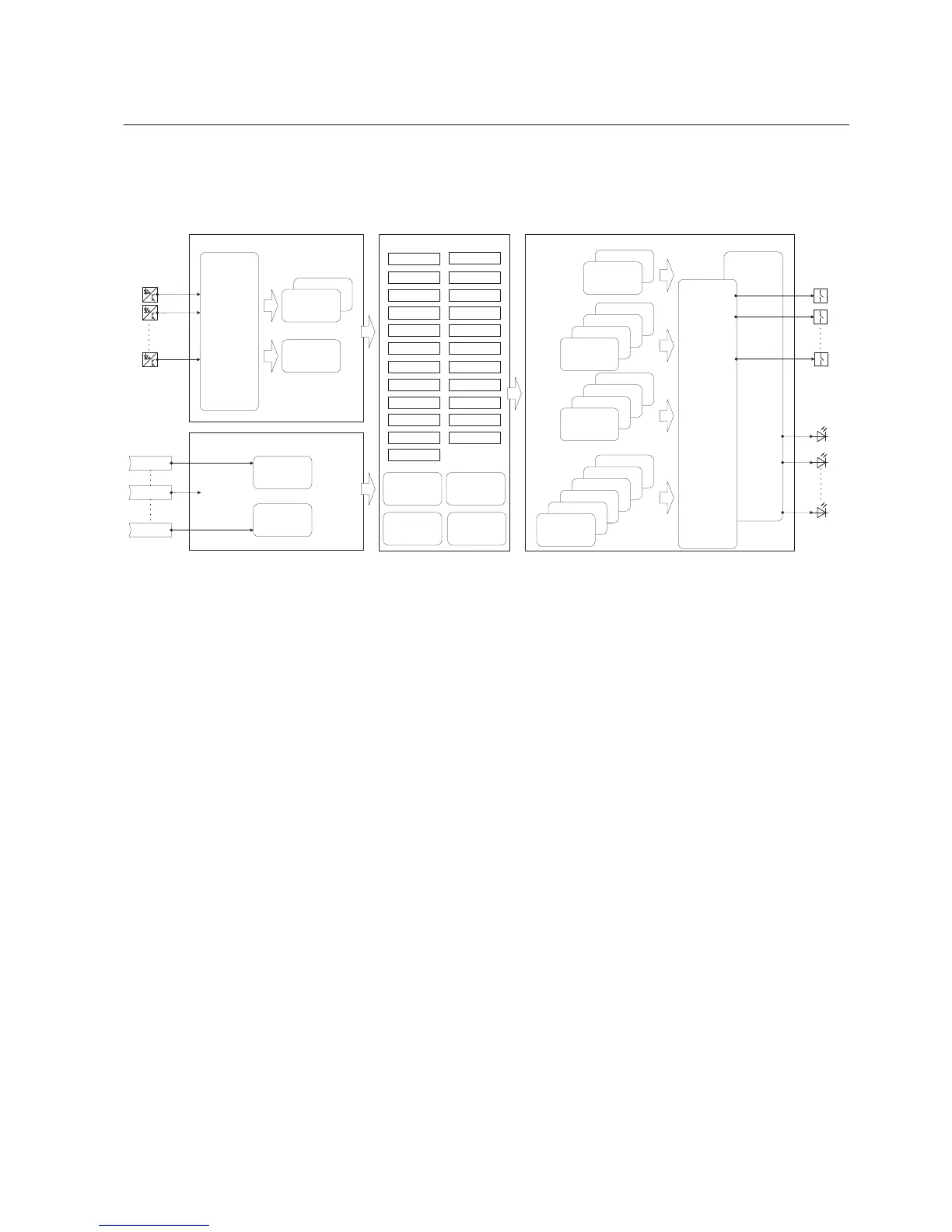

Figure 117: Configuration C switch group overview
3.6.4.1 Binary inputs
The binary inputs group includes one SELGAPC and three ISWGAPCs. SELGAPC1
is used to route binary inputs to ISWGAPC or directly to protection relay functions.
ISWGAPC1 and ISWGAPC2 are used to configure the signal to block the protection
functions. ISWGAPC5 is used to control the characteristic angle of DEFxPDEF.
1MRS757456 D Section 3
REF611 standardized configurations
REF611 137
Application Manual
