3.4.3.3 Functional diagrams for control
OR
X100 PO3
OSWGAPC1
OR
IN_1
IN_2
IN_3
IN_4
IN_5
IN_6
IN_7
IN_8
IN_9
IN_10
IN_11
OUT
IN_12
IN_13
IN_15
IN_14
X100 PO4
MASTER TRIP #1
OR
SELGAPC3
OUT_6
IN_2
SELGAPC3
OUT_5
IN_1
OSWGAPC2
OR
IN_1
IN_2
IN_3
IN_4
IN_5
IN_6
IN_7
IN_8
IN_9
IN_10
IN_11
OUT
IN_12
IN_13
IN_15
IN_14
IN_17
TRIP
CL_LKOUT
BLOCK
RST_LKOUT
TRPPTRC1
OPERATE
SELGAPC1_RST_LKOUT
DARREC1_OPEN_CB
CBXCBR1_EXE_OP
PHLPTOC1_OPERATE
PHHPTOC1_OPERATE
PHHPTOC2_OPERATE
PHIPTOC1_OPERATE
DEFLPDEF1_OPERATE
DEFLPDEF2_OPERATE
DEFHPDEF1_OPERATE
ROVPTOV1_OPERTAE
NSPTOC1_OPERATE
NSPTOC2_OPERATE
PDNSPTOC1_OPERATE
ROVPTOV2_OPERTAE
ROVPTOV3_OPERTAE
EFHPTOC1_OPETATE
INTRPTEF1_OPERATE
PHLPTOC1_OPERATE
PHHPTOC1_OPERATE
PHHPTOC2_OPERATE
PHIPTOC1_OPERATE
DEFLPDEF1_OPERATE
DEFLPDEF2_OPERATE
DEFHPDEF1_OPERATE
ROVPTOV1_OPERTAE
NSPTOC1_OPERATE
NSPTOC2_OPERATE
PDNSPTOC1_OPERATE
ROVPTOV2_OPERTAE
ROVPTOV3_OPERTAE
EFHPTOC1_OPETATE
INTRPTEF1_OPERATE
CCBRBRF1_TRRET
SELGAPC1_External Trip
Q1
Q2
IN1
IN2
MVGAPC1
OR
GOOSERCV_BIN 2_OUT
GOOSERCV_BIN 3_OUT
MASTER TRIP #2
OR
TRIP
CL_LKOUT
BLOCK
RST_LKOUT
TRPPTRC2
OPERATE
SELGAPC1_RST_LKOUT
SELGAPC1_External Trip
Q1
Q2
IN1
IN2
MVGAPC1
OR
GOOSERCV_BIN 2_OUT
GOOSERCV_BIN 3_OUT
GUID-A4419861-FA17-4E12-8951-ABEB715AA740 V2 EN

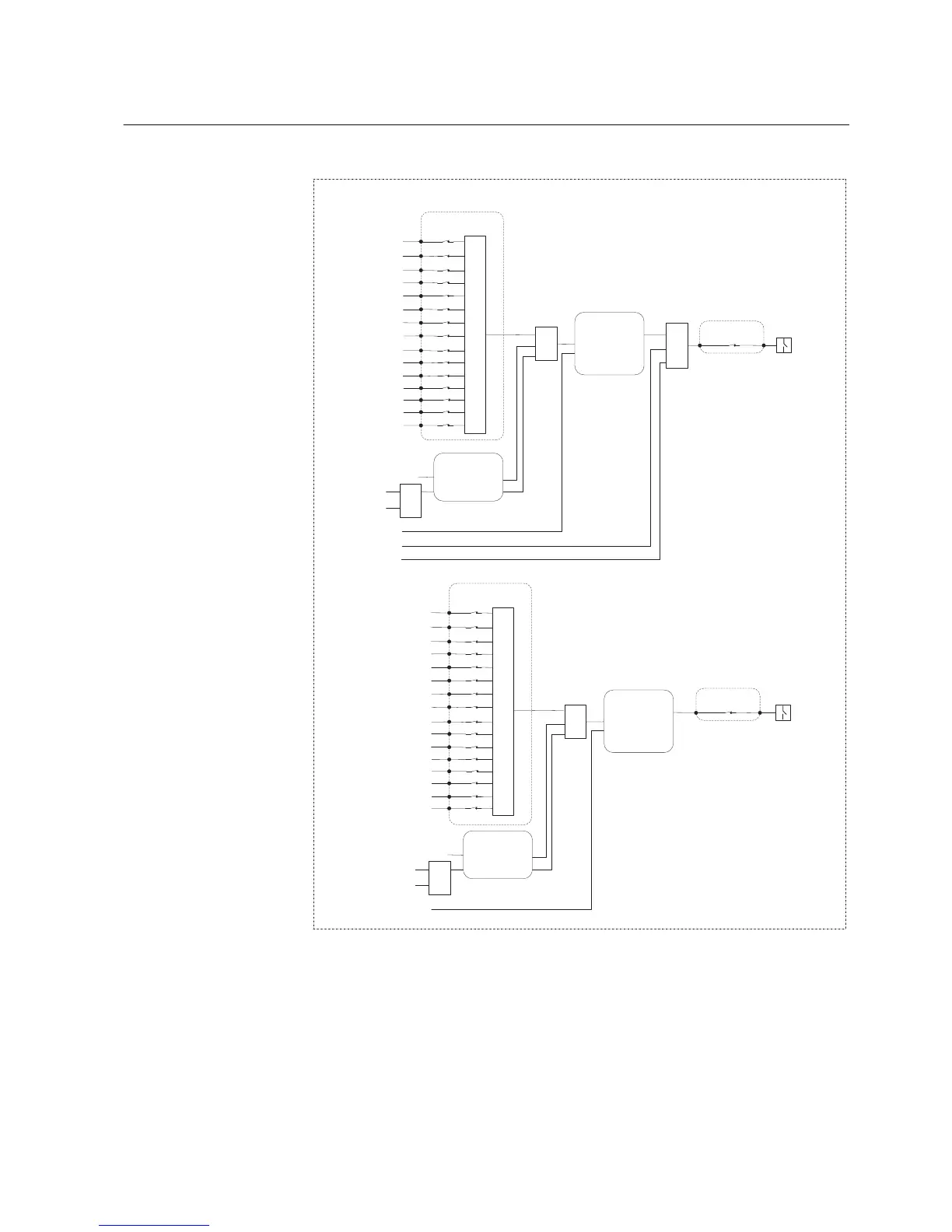

Figure 24: Master trip
The operate signals from the protections and an external trip are connected to the two
trip output contacts PO3 (X100:15-19) and PO4 (X100:20-24) via the corresponding
Master Trips TRPPTRC1 and TRPPTRC2. Open control commands to the circuit
breaker from local or remote CBXCBR1_EXE_OP or from the autoreclosing
1MRS757456 D Section 3
REF611 standardized configurations
REF611 47
Application Manual
