3.4.4 Switch groups
In configuration A, the switch group function blocks are organized in four groups:
binary inputs, internal signal, GOOSE as well as binary outputs and LEDs.
GUID-70D440AE-3136-411D-8A5C-56CABE711F69 V2 EN

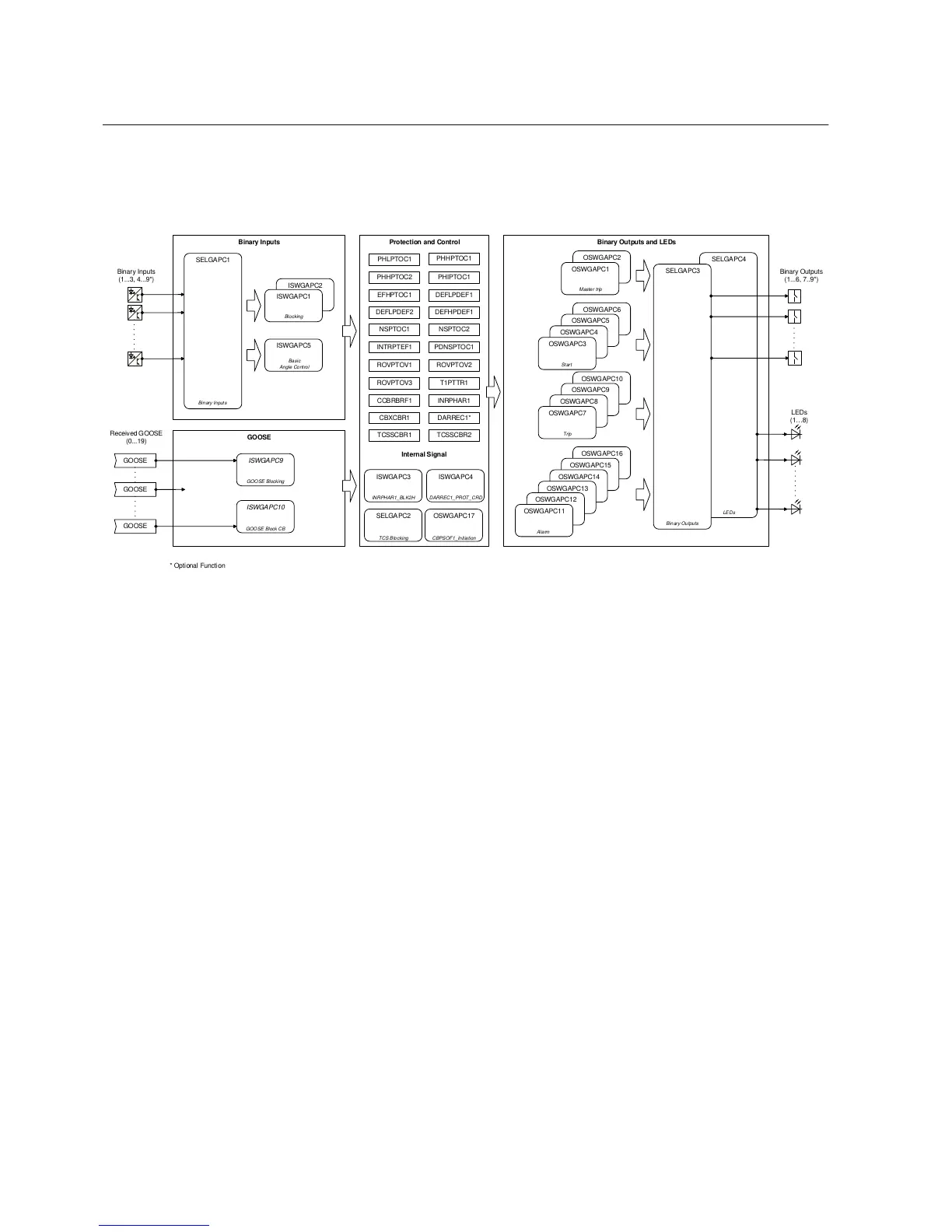

Figure 27: Configuration A switch group overview
3.4.4.1 Binary inputs
The binary inputs group includes one SELGAPC and three ISWGAPCs. SELGAPC1
is used to route binary inputs to ISWGAPC or directly to protection relay functions.
ISWGAPC1 and ISWGAPC2 are used to configure the signal to block the protection
functions. ISWGAPC5 is used to control the characteristic angle of DEFxPDEF.
Section 3 1MRS757456 D
REF611 standardized configurations
50 REF611
Application Manual
