Blocking 2
SELGAPC1_OUT_13
ISWGAPC2
IN
OUT_1
OUT_2
OUT_3
OUT_4
OUT_5
OUT_6
OUT_7
OUT_8
OUT_9
OUT_10
OUT_11
OUT_12
OUT_13
OUT_14
OUT_15
OUT_16
PHLPTOC1_BLOCK
PHHPTOC1_BLOCK
PHHPTOC2_BLOCK
PHIPTOC1_BLOCK
EFHPTOC1_BLOCK
DEFLPDEF1_BLOCK
DEFLPDEF2_BLOCK
DEFHPDEF1_BLOCK
ROVPTOV1_BLOCK
ROVPTOV2_BLOCK
ROVPTOV3_BLOCK
INTRPTEF1_BLOCK
NSPTOC1_BLOCK
NSPTOC2_BLOCK
PDNSPTOC1_BLOCK
T1PTTR1_BLOCK
OUT_17
CBPSOF1_BLOCK
GUID-56855209-1CDA-4B53-A920-3976BF96C636 V2 EN

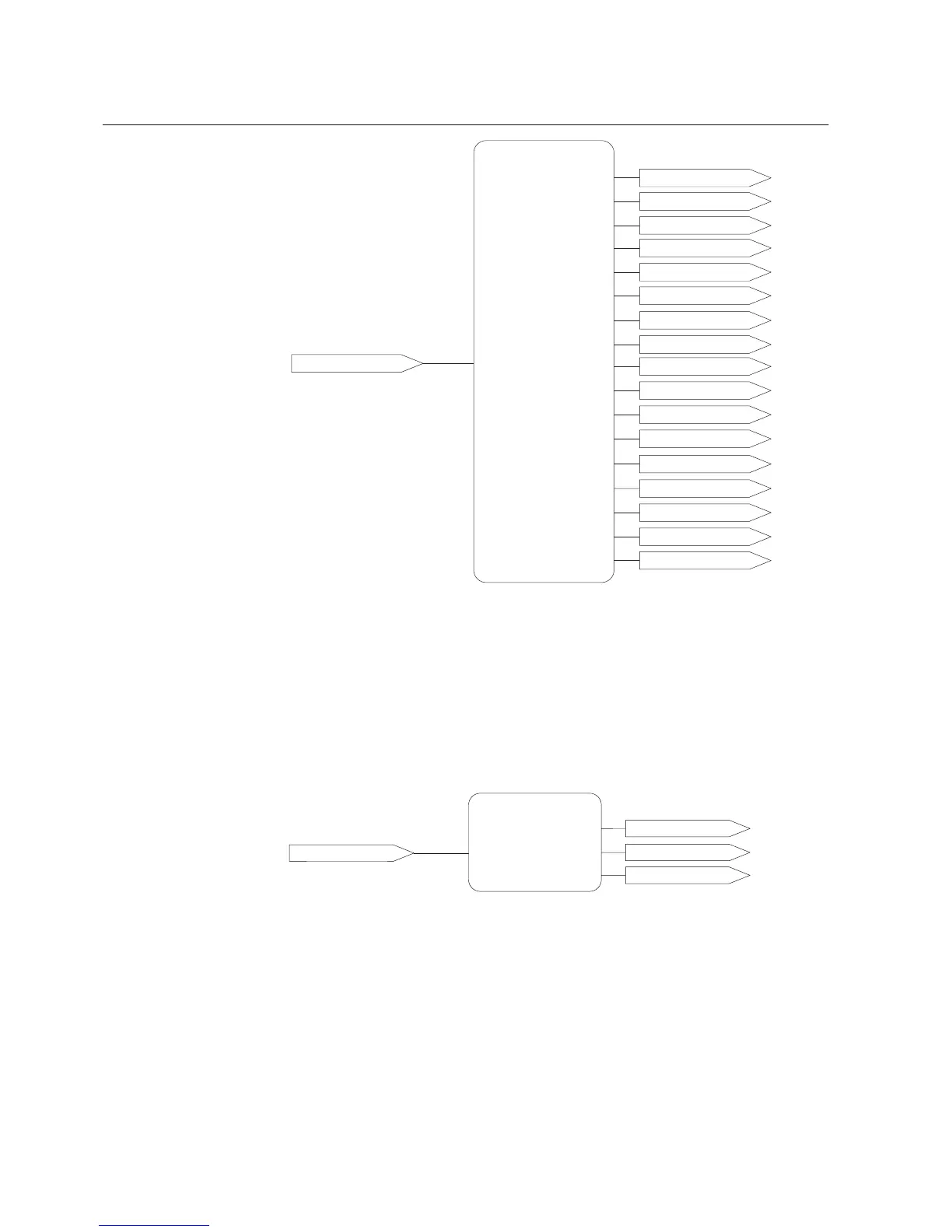

Figure 31: ISWGAPC2
ISWGAPC5
ISWGAPC5 input is used to select which directional earth-fault protection is
controlled by ISWGAPC5 input by changing the ISWGAPC5 parameters.
ISWGAPC5 input is routed from SELGAPC1 output OUT_4 Basic Angle
Control. ISWGAPC5 outputs are connected to RCA_CTL inputs of directional
earth-fault protection functions.
ISWGAPC5
IN
OUT_1
OUT_2
OUT_3
SELGAPC1_OUT_4
DEFLPDEF1_RCA_CTL
DEFLPDEF2_RCA_CTL
DEFHPDEF1_RCA_CTL
Basic Angle
Control
GUID-47706B0D-5CB7-4D8D-8B07-846B87DDBDB4 V1 EN
Figure 32: ISWGAPC5
3.4.4.2 Internal signals
The internal signal group is used to configure logic connections between function
blocks. There are two ISWGAPC instances, one SELGAPC and one OSWGAPC
instance in the group.
Section 3 1MRS757456 D
REF611 standardized configurations
54 REF611
Application Manual
