GUID-A26141F0-6317-4DB1-BD64-BE704DF361AD V3 EN

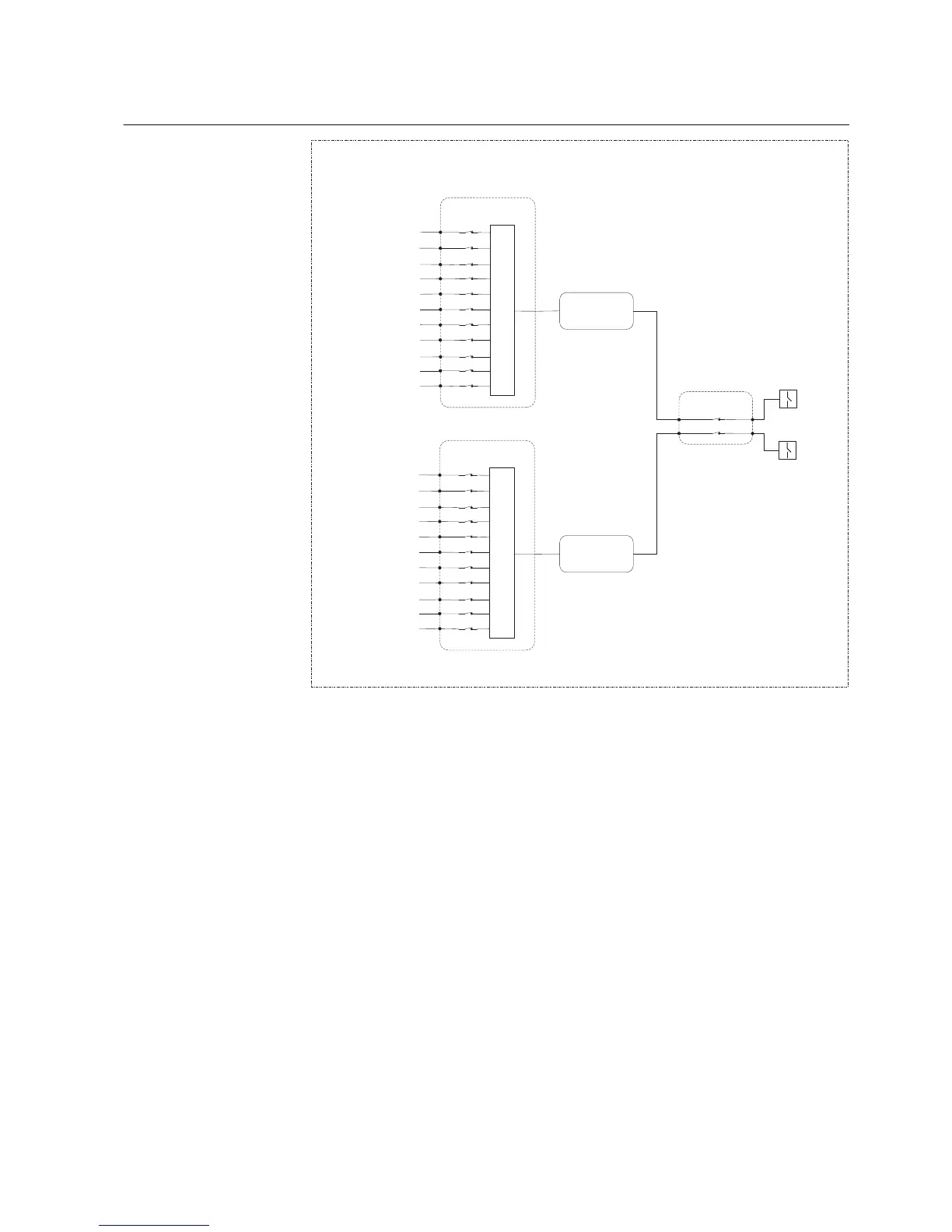

Figure 71: Common alarm indication
The signal outputs from the protection relay are connected to give dedicated
information.
• Start of any protection function SO1 (X100:10-12)
• Operation (trip) of any protection function SO2 (X100: 13-15)
TPGAPC are timers and used for setting the minimum pulse length for the outputs.
There are seven generic timers (TPGAPC1…7) available in the protection relay.
3.5.4 Switch groups
In configuration B, the switch group function blocks are organized in four groups:
binary inputs, internal signal, GOOSE as well as binary outputs and LEDs.
1MRS757456 D Section 3
REF611 standardized configurations
REF611 93
Application Manual
