ABB | SACE Emax 2
94 | © 2017 ABB | 1SDH001330R0002 - ECN000058721 Rev. A Ekip Touch protection trip unit | 12 - G Touch protections

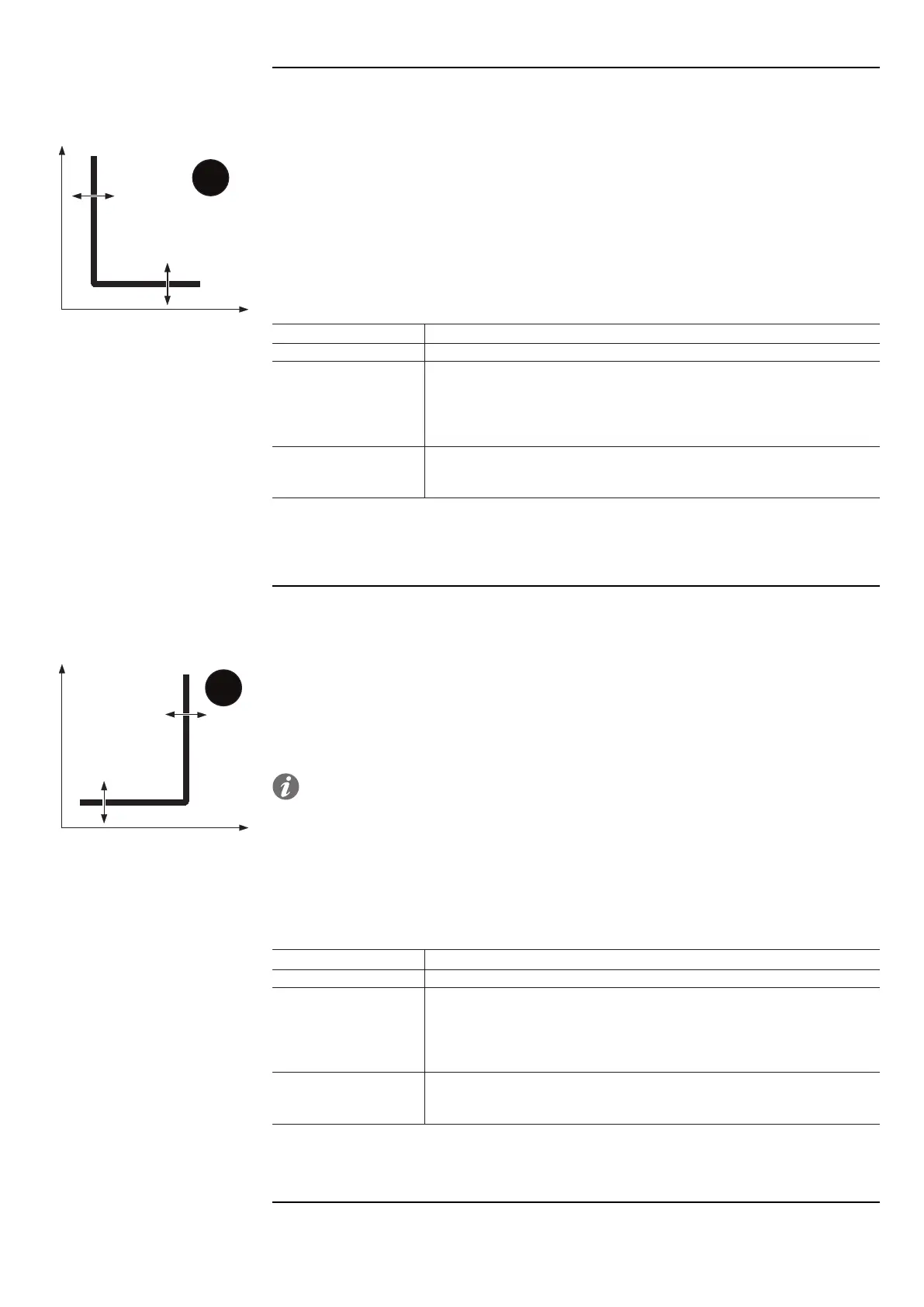

OP Protection
P26
t
t26
P
OP
Path
Main page - Menu - Advanced
Function
OP protection trips when the active supplied rises above the set threshold.
If the active power rises above the activation threshold, the protection trips within a fixed time set by the user.
Parameters
It is possible to modify various parameters:
Parameter Description
Enable To activate/deactivate the protection.
Threshold P26
It defines the active power value above which the protection is activated (with
reference to the figure above, the threshold is the part of the curve parallel to
the y-axis).
It is represented both as an absolute value (kW) and a relative value (Sn,
referring to the rated voltage set on the trip unit).
Time t26
The delay time between the exceeding of the P26 threshold and the sending of
the opening command (with reference to the figure above, the threshold is the
part of the curve parallel to the x-axis).
OP protection has StartUp enable, see page 71.
Via Ekip Connect it is also possible to access the blocking functions, see page 72.
UP Protection
P23
t
t23
P
UP
Path
Main page - Menu - Advanced
Function
UP protection trips when the power supplied drops below the set threshold.
If the active power drops below the activation threshold, the protection trips within a fixed time set by the
user.
NOTE:
• The protection is not active for voltages <30V and if the circuit-breaker is open.
• The protection is active also for negative (reverse) active power, but is independent from the RP
protection (protection against reverse active power).
Parameters
It is possible to modify various parameters:
Parameter Description
Enable To activate/deactivate the protection.
Threshold P23
It defines the active power value below which the protection is activated (with
reference to the figure above, the threshold is the part of the curve parallel to
the y-axis).
It is represented both as an absolute value (kW) and a relative value (Sn,
nominal value defined on the trip unit).
Time t23
The delay time between the exceeding of the P23 threshold and the sending of
the opening command (with reference to the figure above, the threshold is the
part of the curve parallel to the x-axis).
UP protection has Trip Enable and Startup Enable , see page 71.
Via Ekip Connect it is also possible to access the blocking functions, see page 72.
