140 | © 2017 ABB | 1SDH001330R0002 - ECN000058721 Rev. A Protection curves | 3 - Touch protections

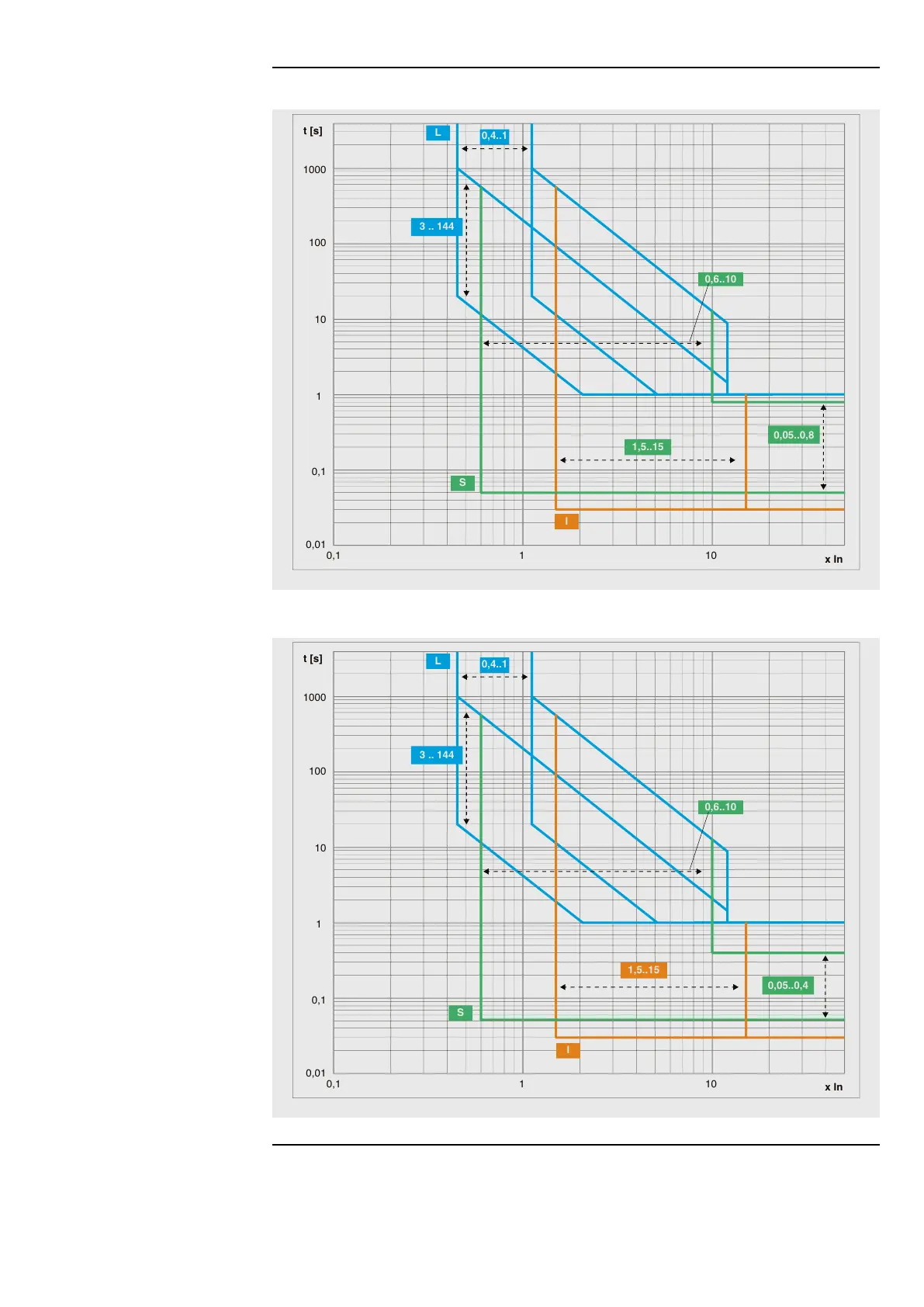

Tripping curve for L-S(t = k)-I
protections
Version IEC
1000
1
0,1
100
10
0,01
101
x In
t [s]
0,1
0,4..1
L
l
S
3 .. 144
0,05..0,8
0,6..10
1,5..15
Version UL
1000
1
0,1
100
10
0,01
101
x In
t [s]
0,1
0,4..1
L
l
S
3 .. 144
0,05..0,4
0,6..10
1,5..15
