ABB | SACE Emax 2
Ekip Touch protection trip unit | 6 - Menu53 | © 2017 ABB | 1SDH001330R0002 - ECN000058721 Rev. A
Measurements history
To open the page, from the menu Measurements, you need to select Historicals - Measurements, and an
item in the list.

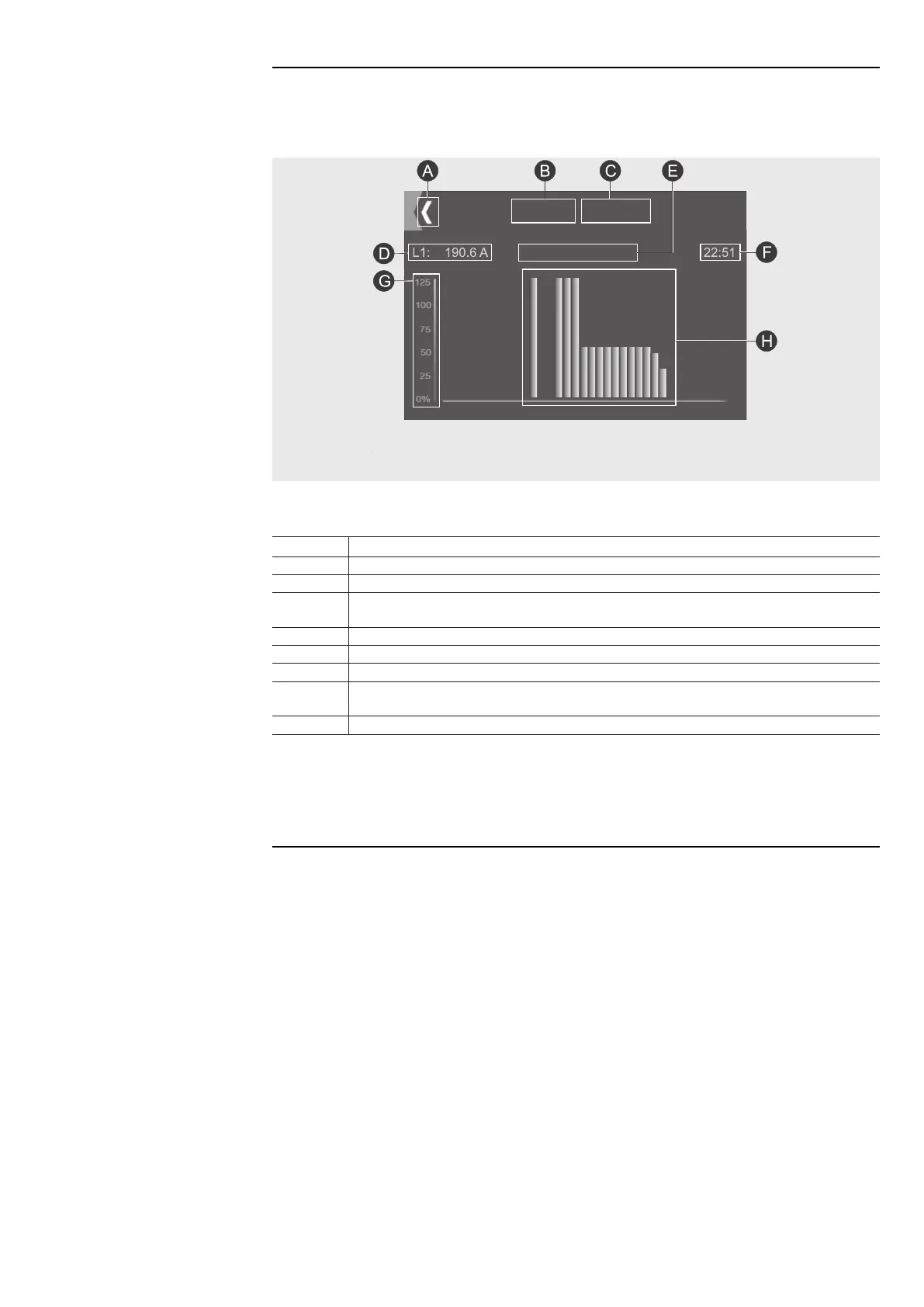

The page appears as follow:
I max 5min
Mar 04, 2013
Figure 14
The following table provides a description of the various areas of the page:
Pos. Description
A It cancels the operation, and opens the Measurements list.
B Item selected in the Measurements list.
C
Time interval between the selected measurement (see flashing bar) and the previous one.
Value 0 indicates the first measurement after a unit shutdown.
D Measurement of the bar that is flashing in the histogram.
E Date of the selected measurement.
F Time of the selected measurement (see flashing bar).
G
Histogram y-axis, with the measurements expressed as percentages of the nominal value
set.
H Bars that represent the measurements of the dimension in position D.
In this page, you can do the following:
• Touch the sides of the display to scroll along the time axis, and select the bar before or after the flashing bar.
• Return to the list Measurements.
