Mechanical accessories | 4 - Operating modes for E2.2-E4.2-E6.2275 | © 2017 ABB | 1SDH001330R0002 - ECN000058721 Rev. A
Mechanical position indicators
The following are the possible positions where you can find the mobile part of a withdrawable circuit-breaker
during its use:
• circuit breaker in DISCONNECT position (see Figure 65)
• circuit-breaker in test position (see Figure 66)
• circuit-breaker in CONNECT position (see Figure 67)

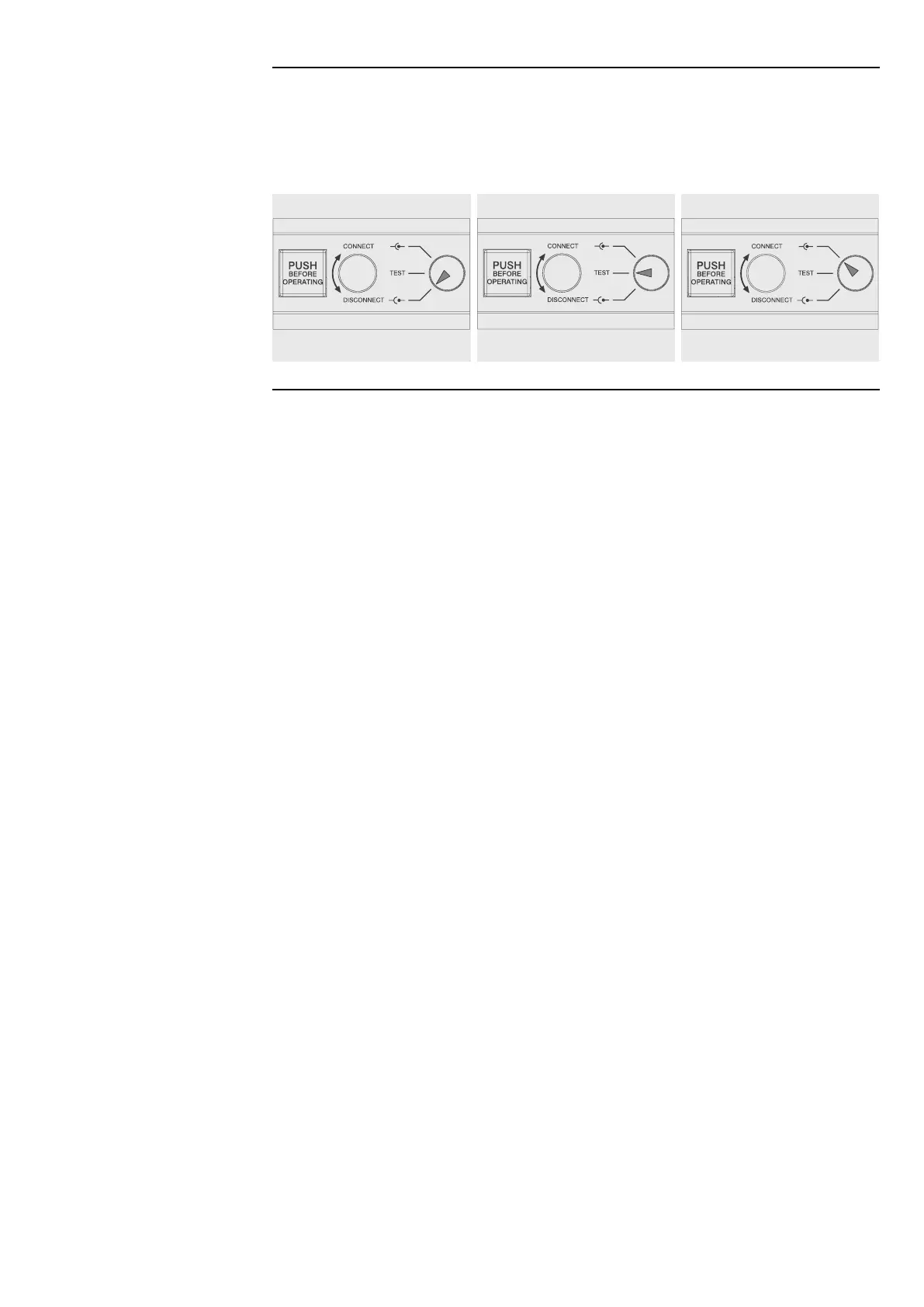

Figure 65 Figure 66 Figure 67
