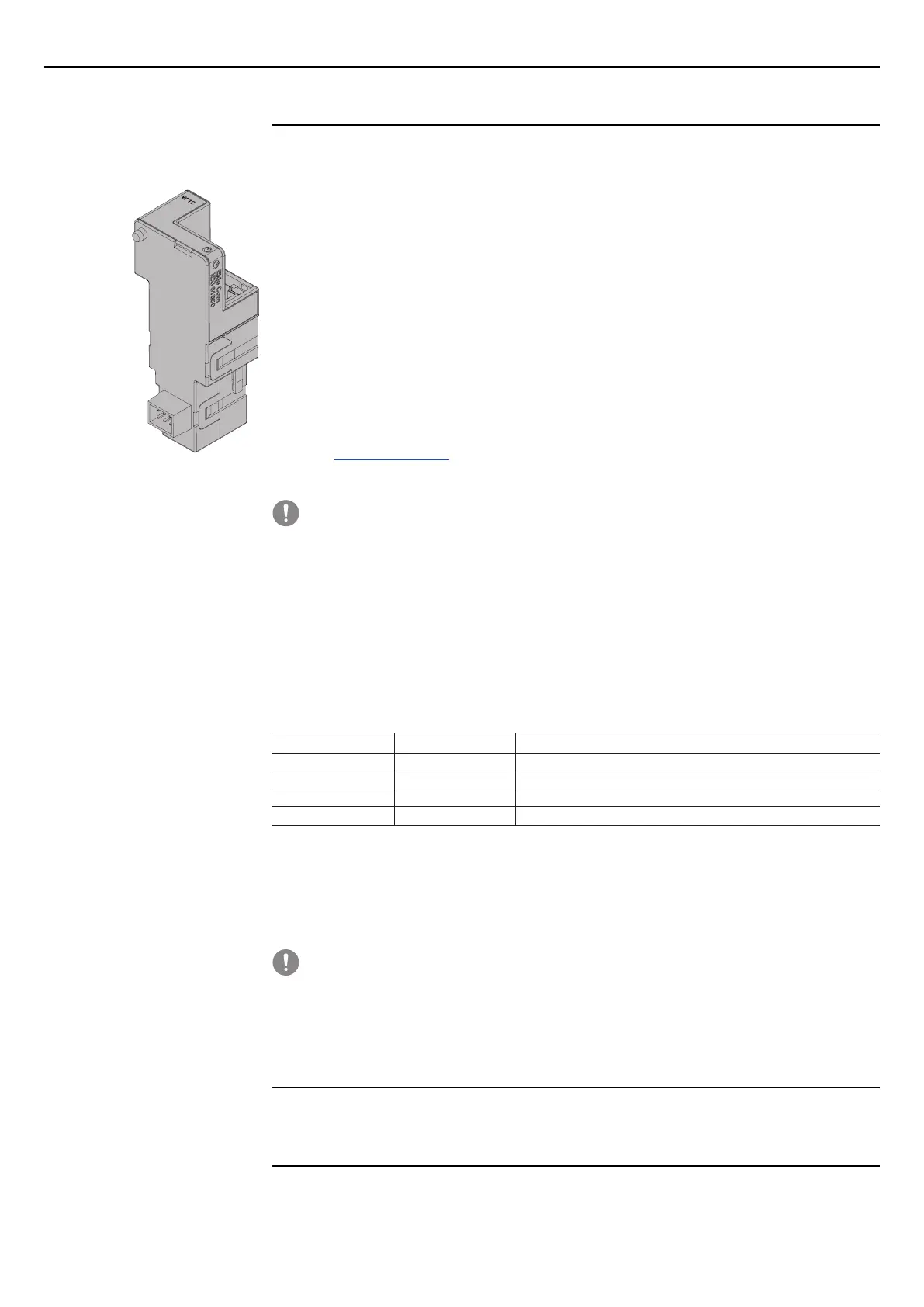

13 - Ekip Com IEC 61850 modules
Description
Ekip Com IEC 61850 is an accessory module that can function as a communication module by integrating
the circuit-breaker in an industrial remote supervision and control network.
It can be connected to an Ethernet network with an IEC 61850 communication protocol, and allows you to:
• Connect the trip units to the network, with dialog functionality.
• Command opening and closing of the circuit-breaker from remote.
• Provide information on the state of the circuit-breaker (open, closed, tripped).
• If mounted on a circuit-breaker in withdrawable version, detect the connected/disconnected position.
• Provide vertical communication (report) towards higher-level supervision systems (SCADA) with states and
measurements (re-transmitted whenever, and only if, they change with respect to the previous report).
• Provide horizontal communication (GOOSE output) towards other circuit-breakers (non-Emax 2, e.g.
medium voltage circuit-breakers), with all the information about state and measurements normally shared
by Emax 2 communication modules on busbars.
Remote opening and closing of the circuit-breaker can be performed only if the circuit-breaker is equipped
with an Ekip Com Actuator module (see page 243).
The configuration for the IEC 61850 protocol to assign the Technical Name, and, where necessary, to enable
the GOOSE (by setting the corresponding MAC addresses), is carried out by loading a configuration file in
the module. For further information, see the chapter "System Interface" on page 155, and in particular the
document 1SDH001140r0001 referenced in the chapter
IMPORTANT: since the module allows control of the circuit-breaker and access to
the data contained in the trip unit, it can only be connected to networks that meet
all the necessary requirements for security and prevention of unauthorized access
(for example, the network of the control system of an installation). It is the installer's
responsibility to ensure that all the necessary security measures are adopted (for
example, firewalls, and so on). The module cannot be connected directly to the
Internet. Connection to dedicated Ethernet networks through the IEC 61850
communication protocol is recommended.
The following table shows the ports used by the module:
Ethertype Port Protocol
0x0800 - IP. 102 ISO Transport Service on top of the TCP (RFC 1006)
0x88B8. - GOOSE Messages
0x0800 - IP. 123 UDP NTP - Network Time Protocol
0x0800 - IP. 69 UDP TFTP - Trivial File Transfer Protocol
For applications in which a high network reliability is necessary, the module can be installed along with the
corresponding Redundant module.
The Redundant module is identical in terms of characteristics and installation, but its wiring is different from
the non-Redundant model.
IMPORTANT: on each circuit-breaker, only one Ekip Com IEC 61850, and only one
Ekip Com IEC 61850 Redundant can be installed.
The modules are always supplied with Ekip AUP and Ekip RTC contacts (see the chapter "16 - Other
accessories" on page 244).
Compatibility and power supply
The modules can be installed combined with Ekip Touch, Hi-Touch, G Touch, and G Hi-Touch trip unit since
version 2.0 software, and require the presence of an Ekip Supply module in the first slot of the circuit-breaker
terminal box.
Connections
The modules must be mounted on the terminal box of the circuit-breaker or of the fixed part of the withdrawable
circuit-breaker, in the first free slot after the Ekip Supply module.
Information on the assembly is available on the website http://www.abb.com/abblibrary/DownloadCenter/, in
particular in the kit sheet 1SDH001000r0514.
An example with an E2.2 circuit-breaker in fixed and withdrawable versions is provided to the side.
The following is a view of the terminal box of E1.2 and E2.2-E4.2-E6.2 circuit-breakers with the relevant wiring
diagram:
R2
R1
U2
U1
38
36
35
98
96
95
YRMS33S51
YO
EKIP SupplyTrip Unit I/O
Ge-
Ge
Szc
K2
K1
W4
W3
Q4Q3Q2Q1YC
YU
YO2
RTC
I/O
TU
44
42
41
34
32
31
24
22
21
14
12
11
C12
C13
C11
C2
C3
C1
D2
D1
48
46
45
Ne
Rca
Ne-
Gzi
Szo
Szi
Gzo
Rct
Vn
V1
V2
V3
Module Module
YO
01
H4
02
K5
04
K10K9
94
92
H3
9181
H2
82
K4
K8
8474
K7
K3
H1
72
7161
HC
62
64
54
52
51
EKIP SupplyModuleTrip Unit I/O
HC
K6
Ge-
Ge
Szc
K2
K1
W4
W3
R2
R1
Q4Q3Q2Q1YC2YC
YU
YO2
RTC
I/O
TU
44
42
41
34
32
31
24
22
21
14
12
11
C22
C21
C12
C13
C11
C2
C3
C1
D2
D1
48
46
45
Ne
Rca
Ne-
Gzi
Szo
Szi
Gzo
Rct
Vn
V1
V2
V3
U2
U1
38
36
35
98
96
95
YRMS33S51
EKIP Signalling 4KQ5..Q10
Module Module
HC
A4
A3
A4
57
194
XK7 XK7
1 2
193
S75I/5
W12
RJ45
BUS 1
Ekip Com IEC 61850
n
COM
K51
O)
*
n
Ekip Com
BUS2
RJ45
W12R
67
K51
COM
R)
*
R)
*
Redundant IEC 61850
Diagrams 57 - 67
For the communication bus, a cable of type Cat.6 S/FTP must be used (Cat.6 with S/FTP double shielding).
If the circuit-breaker is in withdrawable version, the use of cables fitted with a RJ45 socket with output at 90°
is recommended.
Further information is available on page 174, or on the website http://www.abb.com/abblibrary/
DownloadCenter/, where the wiring diagram is available 1SDm000091r0001.
