ABB | SACE Emax 2
44 | © 2017 ABB | 1SDH001330R0002 - ECN000058721 Rev. A Ekip Touch protection trip unit | 4 - Measuring instruments pages
4 - Measuring instruments pages
Description
The Measuring instruments pages show an indicator of the maximum phase current, or the maximum line-
to-line voltage, or the active, reactive or apparent power.
The page orientation (horizontal by default) can be changed from the Settings menu, by selecting System -
View (see the chapter "6 - Menu", and the paragraph "Settings Menu" on page 49).
Components of the pages
The pages appear as follows:

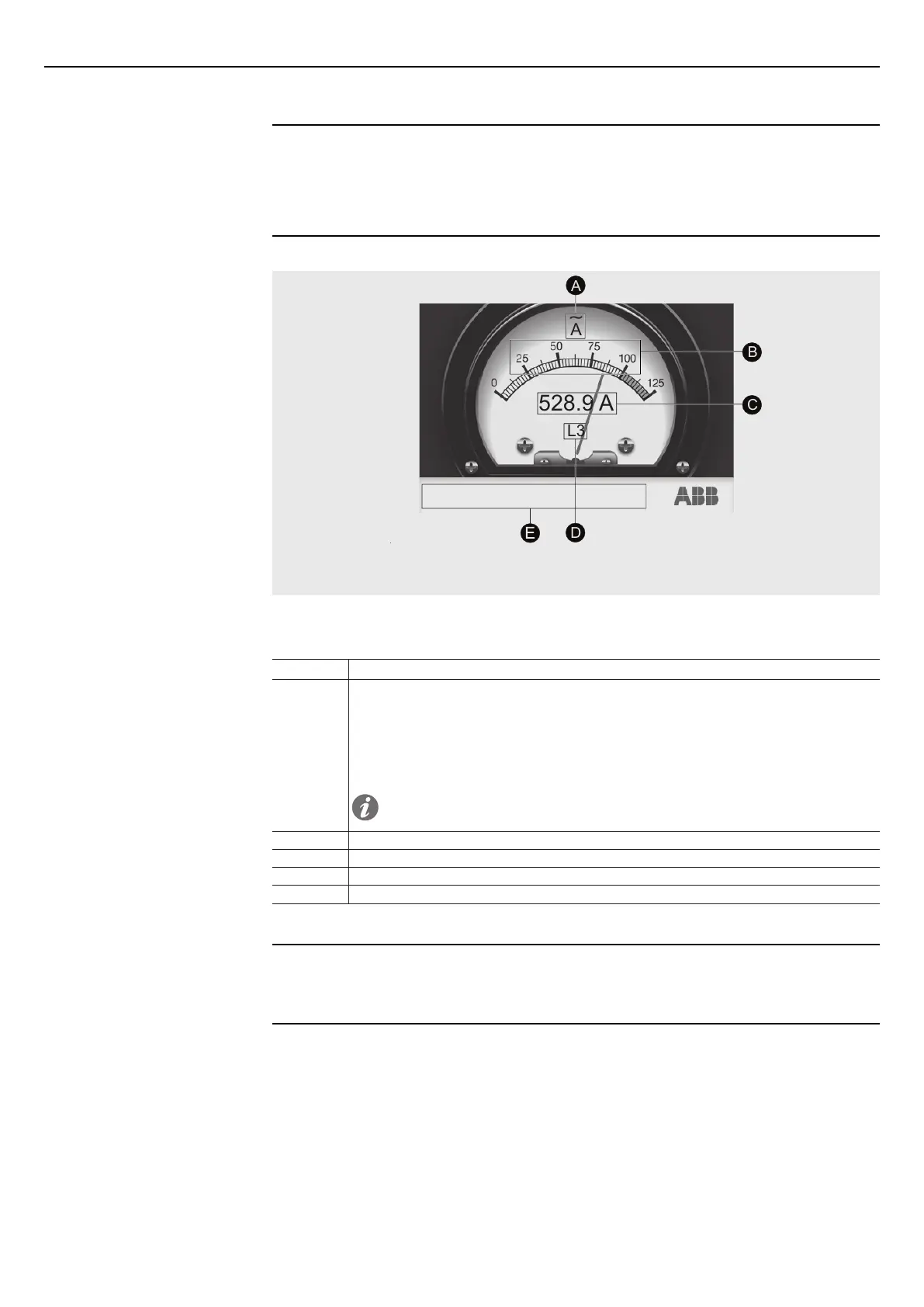

Figure 9
The following table provides a description of the various areas of the pages:
Pos. Description
A
Type of indicator:
• A: ammeter, with measurement of the maximum phase current.
• V: ammeter, with measurement of the maximum phase-to-phase voltage.
• kW: measurement of the active power.
• kVAR: measurement of the reactive power.
• kVA: measurement of the apparent power.
NOTE: all the indicators except the ammeter are available with the Ekip Measuring
module.
B Measurement expressed as a percentage of the nominal value set.
C Measurement as an absolute value (A, V, kW, kVA).
D Phase current or phase-to-phase voltage, to which the measurement refers.
E Diagnosis bar.
Possible operations
In these pages, the following operations are possible:
• By touching the sides of the display, scroll through the available indicators.
• Open the page Alarm List.
