Ekip Touch protection trip unit | 8 - Setting the parameters59 | © 2017 ABB | 1SDH001330R0002 - ECN000058721 Rev. A
Edit Parameters page by option
NOTE: In the case of Edit Parameters by option, the selection of a value brings you automatically
back to the previous Menu.

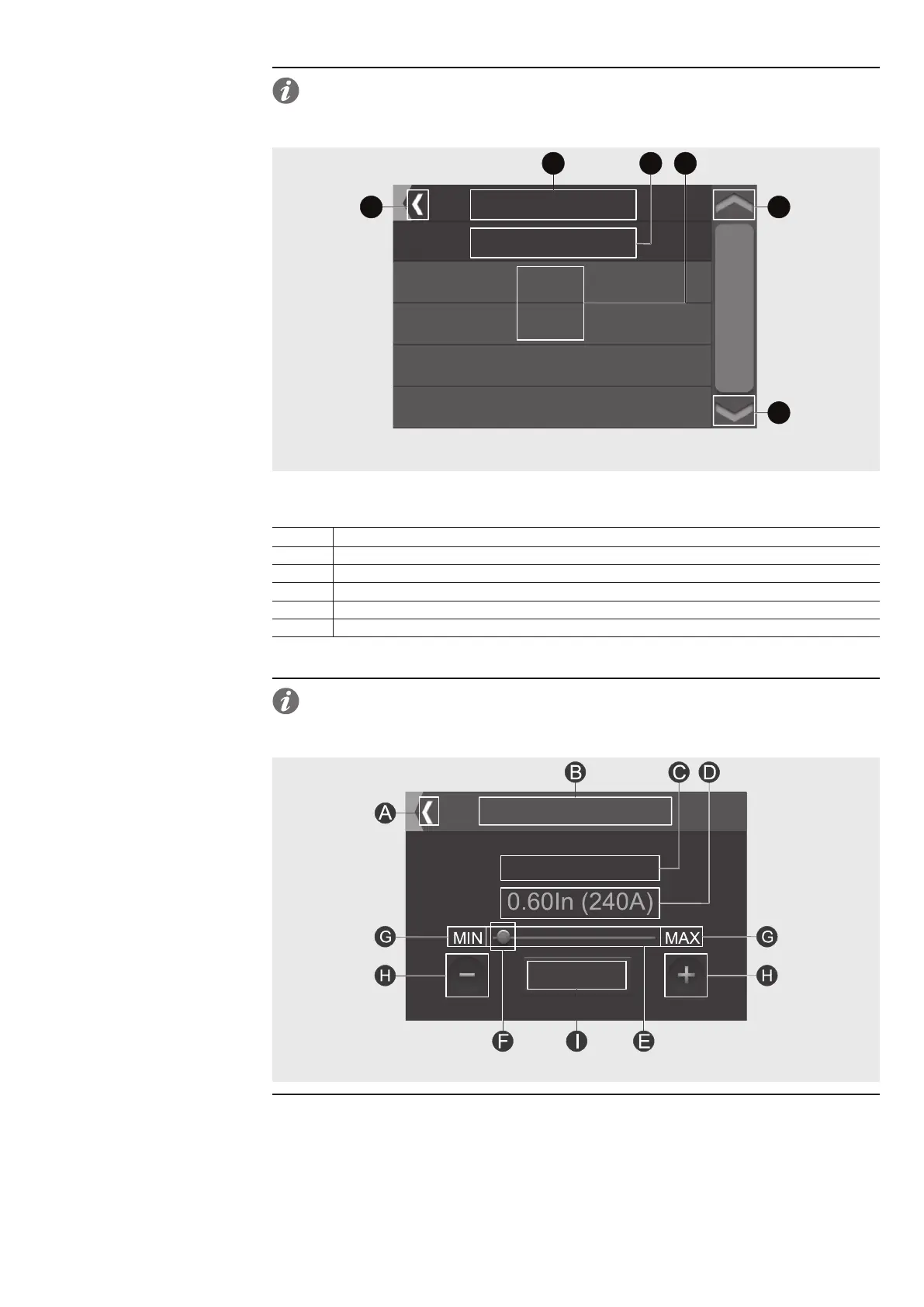

The page appears as follow:
50 Hz
60 Hz
A
B
C
D
E
E
Modify Parameter
Frequency
Figure 19
The following table provides a description of the various areas of the page:
Pos. Description
A Cancels the operation, and opens the start menu.
B Name of the page.
C Name of the parameter to be set.
D List of the selectable values.
E Scroll the list
Edit Parameters page by value
NOTE: In the case of Edit Parameters by value, in order to complete the setting and return
to the previous menu, you need to confirm the selected value.
The page appears as follow:
Confirm
I20 Threshold
Modify Parameter
Figure 20
Continued on the next page
