60 | © 2017 ABB | 1SDH001330R0002 - ECN000058721 Rev. A Ekip Touch protection trip unit | 8 - Setting the parameters
Continued from the previous page
The following table provides a description of the various areas of the page:
Pos. Description
A Cancels the operation, and opens the start menu.
B Name of the page.
C Name of the parameter to be set.
D Value selected for the parameter.
E Bar: graphic representation of the range of selectable values.
F Cursor: graphic representation of the selected value.
G
• MIN key: selects the minimum value.
• MAX key: selects the maximum value.
H - and + keys: allow you to increase and decrease the value selected.
I Confirm key: confirms the selected value.

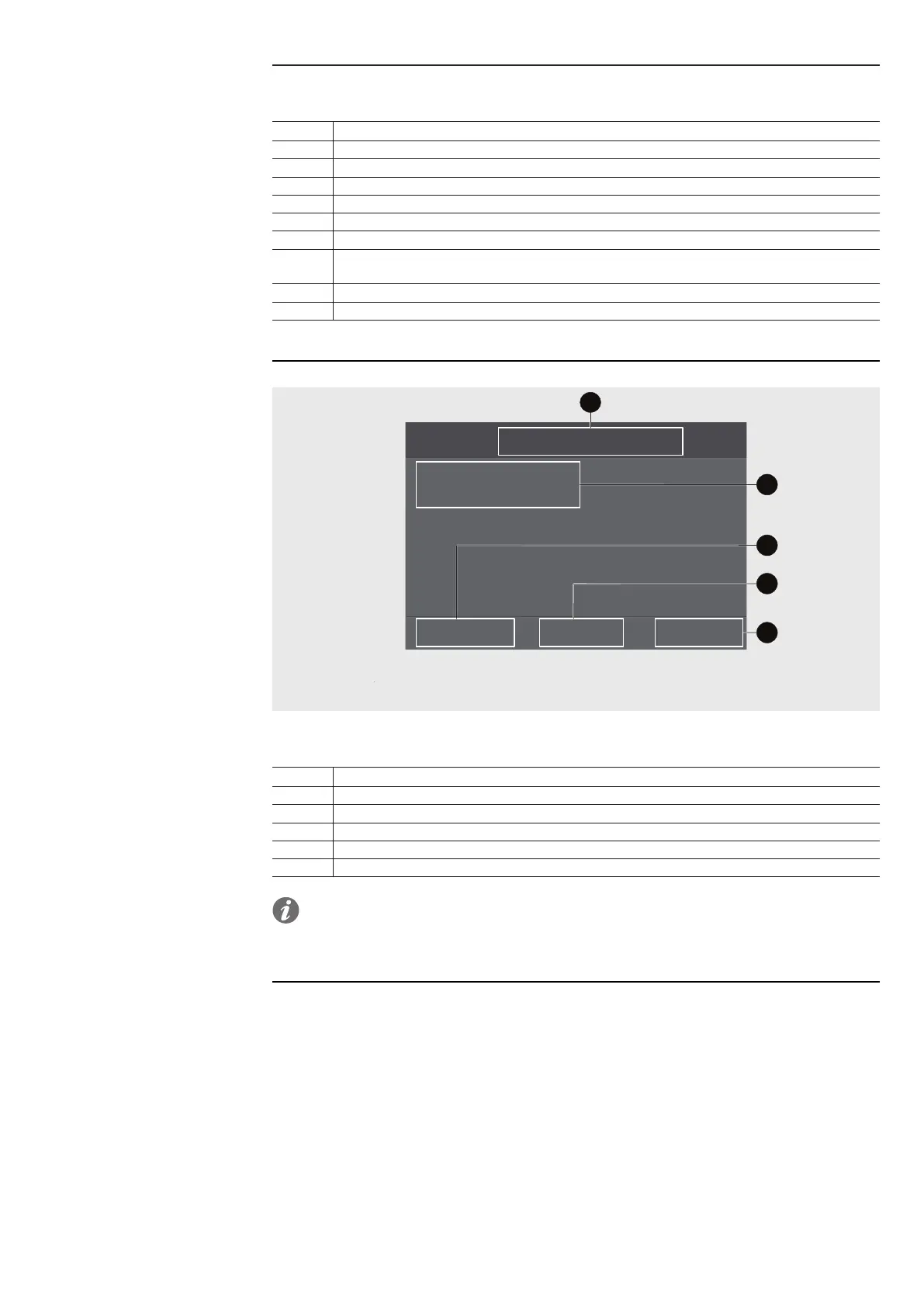

Programming Page
The page appears as follow:
A
B
E
D
C
Programming
S(V) Protection
S(V) Protection
Confirm Abort Modify
Figure 21
The following table provides a description of the various areas of the page:
Pos. Description
A Name of the page.
B List of changes made.
C Confirm key: confirms the changes (programs the trip unit), and opens the Menus page.
D Cancel key: cancels the changes, and opens the Menus page.
E Modify key: it keeps the changes and opens the menu with ticks, for further modifications.
NOTE: if the changes are confirmed:
• The Menu page is opened.
• For approximately 3 seconds, the message “Parameters updated” appears.
