Protection curves | 6 - G Touch protections151 | © 2017 ABB | 1SDH001330R0002 - ECN000058721 Rev. A

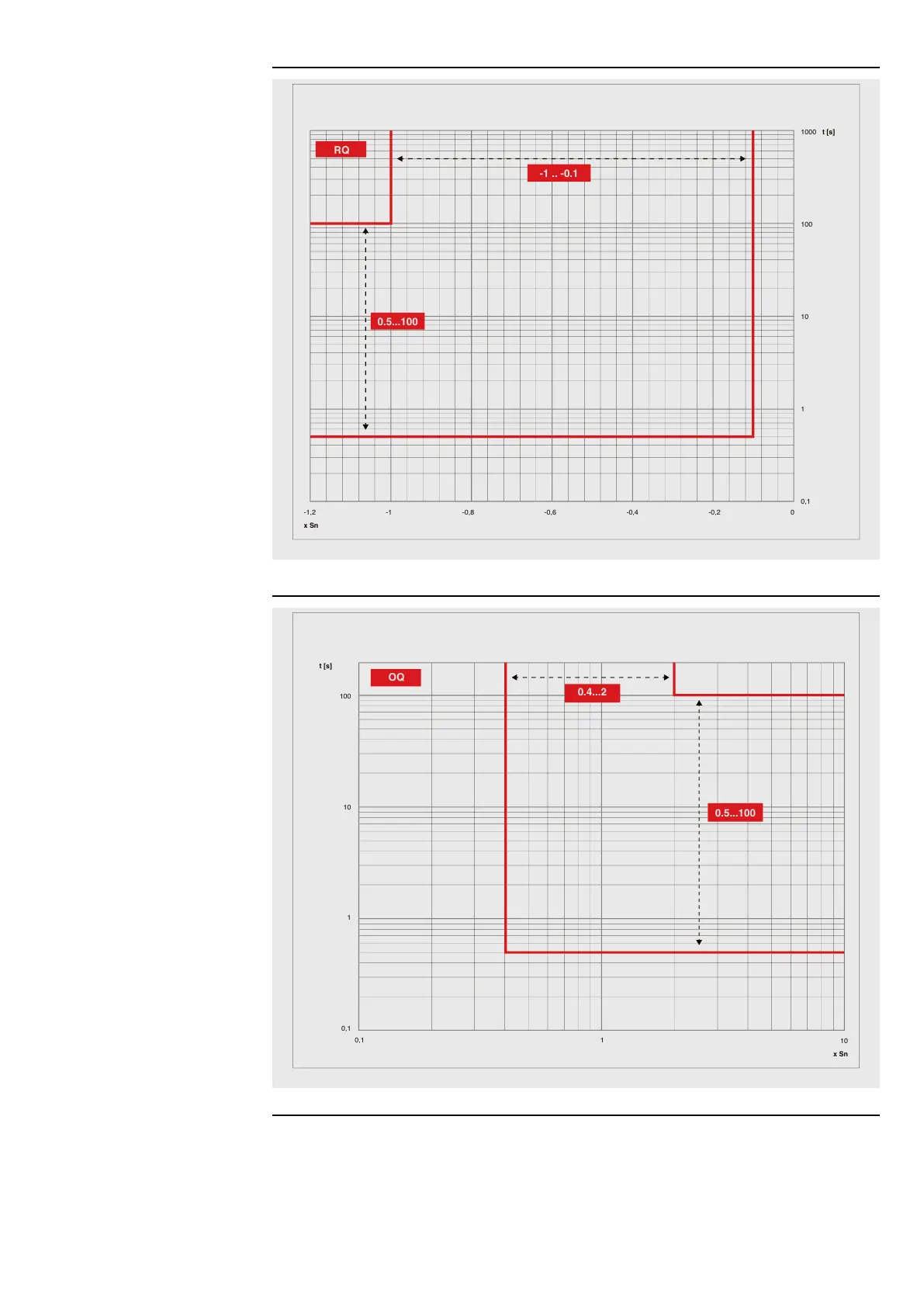

Tripping curves for RQ
protection
-1 .. -0.1
0.5...100
1000
10
100
1
0,1
-1,2 -0,8-0,4-0,2-1 -0,6 0
x Sn
t [s]
RQ
Tripping curves for OQ
protection
0.5...100
0.4...2
10
100
1
0,1
10
10,1
x Sn
t [s]
OQ
