ABB | SACE Emax 2

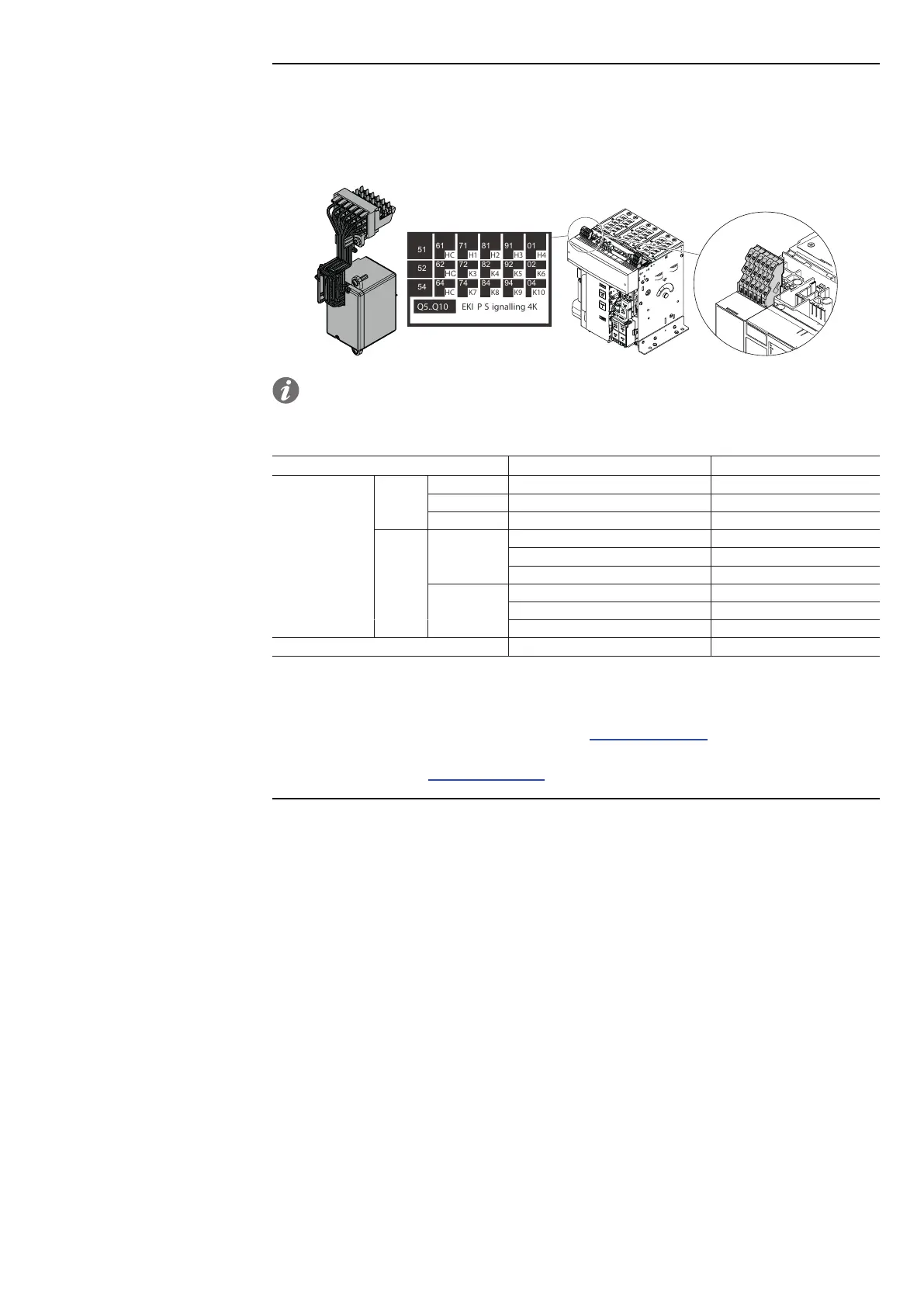

AUX 6Q

(1)

: Additional open/

closed auxiliary contacts

The additional AUX 6Q contacts signal the open/closed state of the circuit-breaker.

These are "switching" contacts and are available in three types:

• six standard contacts

• six digital signals (low power)

• three standard contacts (Q1-Q2-Q3) + three digital signals (Q4-Q5-Q6)

K10K9

9181

8474

7161

EKI PSignalling 4KQ5..Q10

(1)

Only for E2.2 - E4.2 - E6.2

NOTE: it is possible to order the AUX 6 Q contacts only if the circuit-breaker is not equipped

with a protection trip unit with the Ekip Signalling 4K module.

The following table provides information on the electrical characteristics:

Characteristics Standard Digital signals

Breaking

capacity

24V - 0.1 A

125V 0.5A @ 0ms / 0.3A @ 10ms -

250V 0.3A @ 0ms / 0.15A @ 10ms -

250V

3A cos φ 0.3 -

5A cos φ 0.7 -

5A cos φ 1 -

400V

3A cos φ 1 -

2A cos φ 0.7 -

1A cos φ 0.3 -

Minimum load 100mA @ 24V 1mA @ 5V

AUX 6Q: Connections

Further information is available on page 174, or on the website http://www.abb.com/abblibrary/

DownloadCenter/, where the wiring diagram is available 1SDm000091r0001.

Information on the assembly is available on the website http://www.abb.com/abblibrary/DownloadCenter/, in

particular with the kit sheet 1SDH001000r0601.
