4 Chapter 1

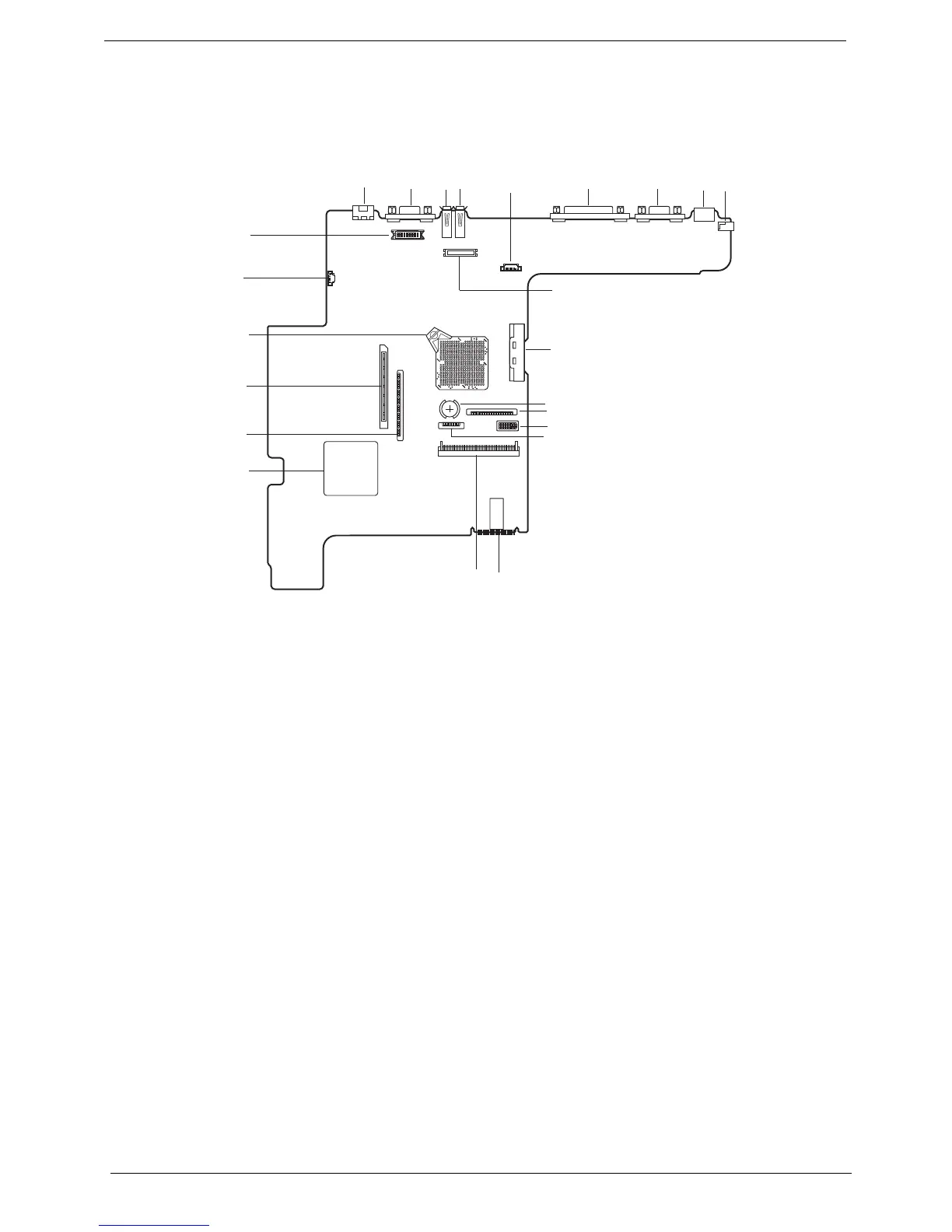

Board Layout
Top View
1 DC-in Port 13 PCMCIA Socket Connector
2 PS/2 Keyboard and Mouse Port 14 Diskette Drive Connector
3 Serial Port 15 PCMCIA (PC card)Controller (OZ6812)
4 Parallel Port 16 HDD Connector
5 Launch Key Connector 17 BIOS ROM
6 USB Port 1 18 Touch Pad Cable Connector
7 USB Port 2 19 Switch
8 External Display Port 20 Keyboard Cable Connector
9 Modem Port 21 RTC battery
10 LED & Inverter Connector 22 CD-ROM Connector
11 Fan Connector 23 LCD Connector
12 CPU (on board)
9
8
7
43
2
1
23
21
20
18
17
6
11
10
14
13
15
16
19
22
5
12
