58 Chapter 3

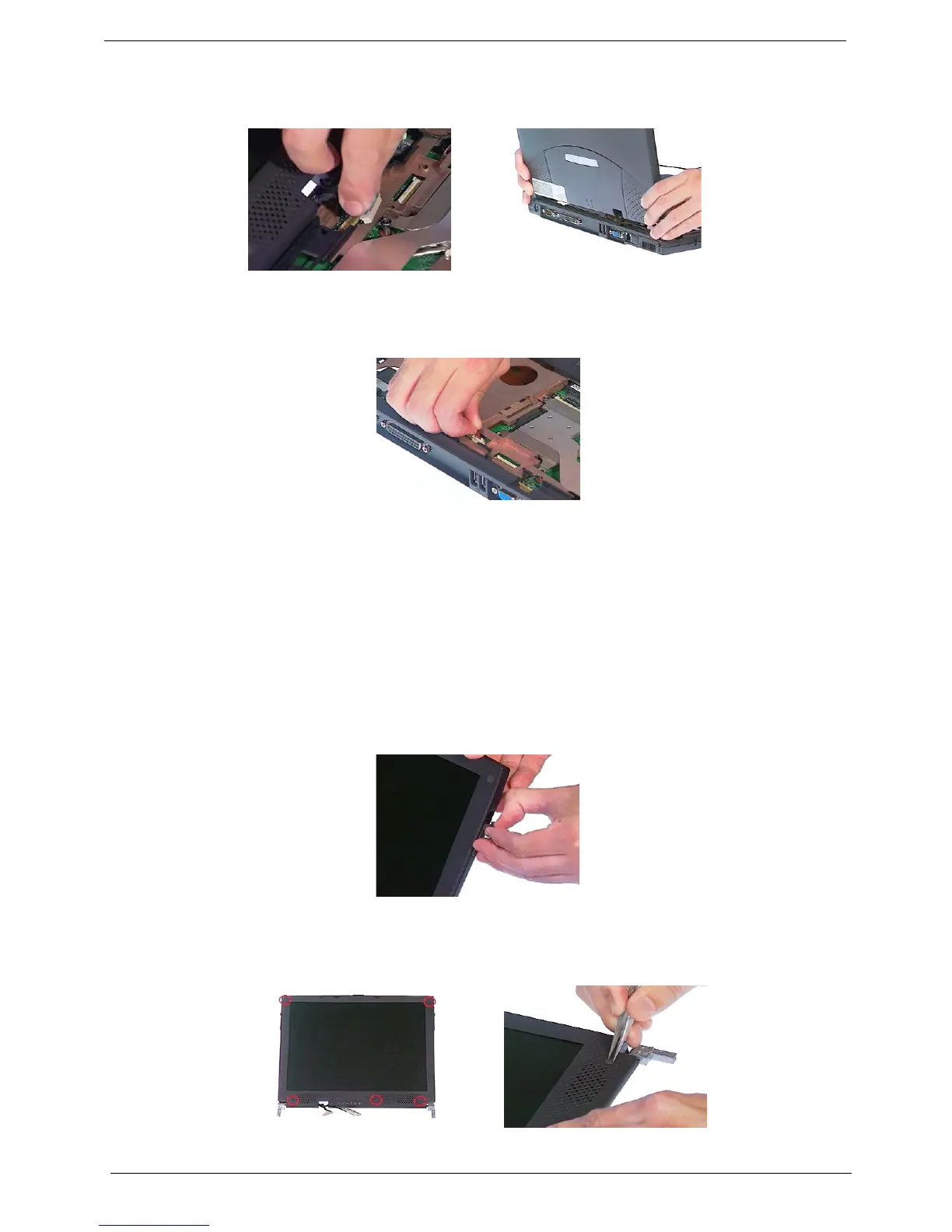

7. Disconnect the inverter cable from the main board and then remove the LCD module from the main unit.
8. Disconnect the the launch board cable from the main board and remove it.
Removing the LCD Bezel
1. See “Removing the Hinge Cap” on page 55
2. See “Removing the Middle Cover” on page 55
3. See “Removing the Keyboard” on page 56
4. See “Removing the Cable Cover” on page 56
5. See “Removing the 12.1” TFT LCD Module” on page 57
6. To remove the LCD bezel, first remove the video capture kit cover from the LCD module on each side.
7. Remove the five LCD cushions and then remove the five screws from the LCD bezel.
To Next Page
