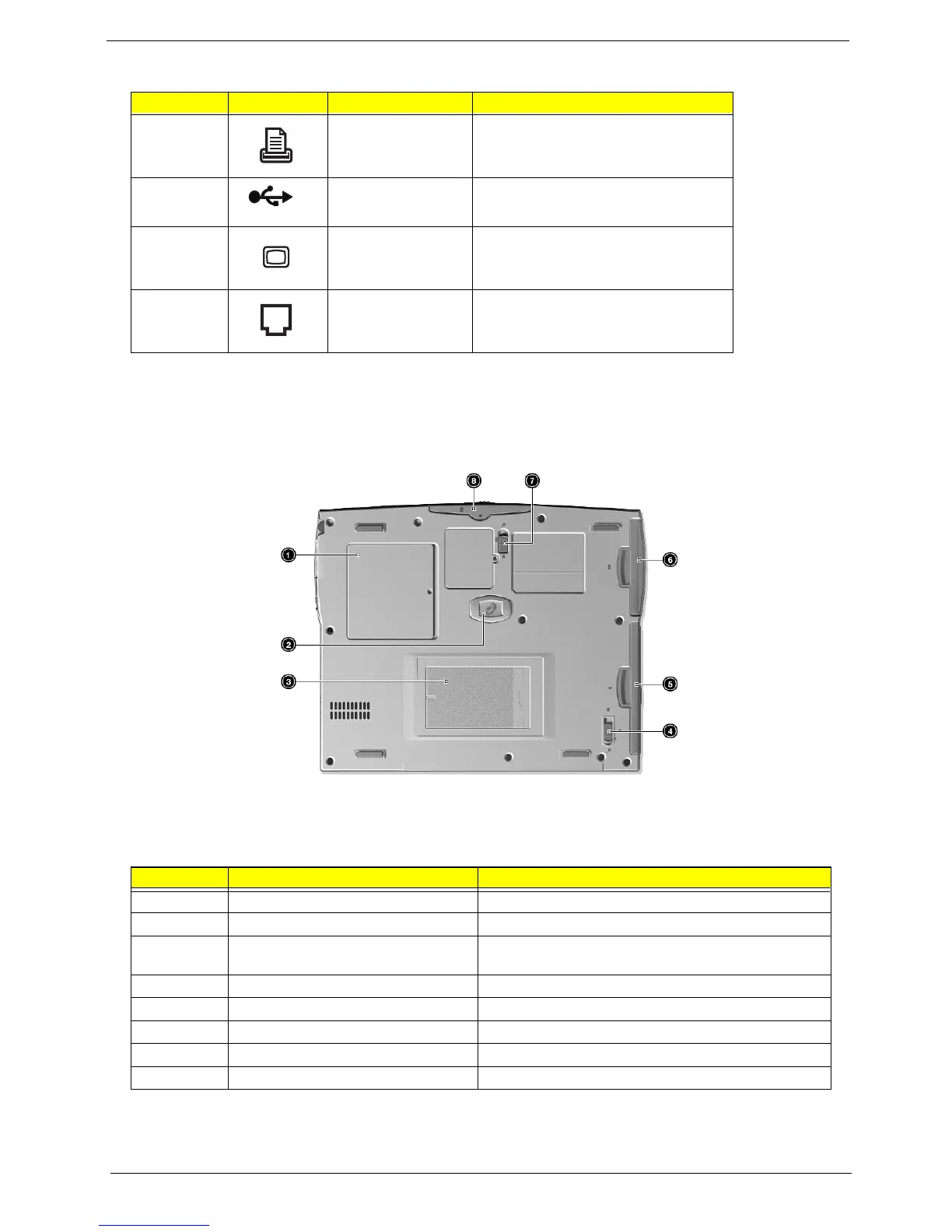

Bottom Panel
3 Parallel port Connects to a parallel device (e.g., parallel
printer)
4 USB port (two) Connects to any Universal Serial Bus
devices(e.g., USB mouse, USB camera).
5 External display port Connects to a display device (e.g., external
monitor, LCD projector) and displays up to
64K colors at 1280x1024
6 Modem jack Connects to the phone line
# Item Description
1 Memory compartment Houses the computer’s main memory.
2 Hard disk anti-shock protection Protects your hard disk against shocks.
3 Personal identification slot Insert a business card or similar-sized identification card to
personalize your computer.
4 AcerMedia bay release latch Unlatches the AcerMedia drive for removal or swapping.
5 AcerMedia bay Houses an AcerMedia drive module.
6 Battery bay Houses the computer’s battery pack.
7 Battery release latch Unlatches the battery to remove the battery pack.
8 Hard disk bay Houses the computer’s hard disk (secured by a screw).
