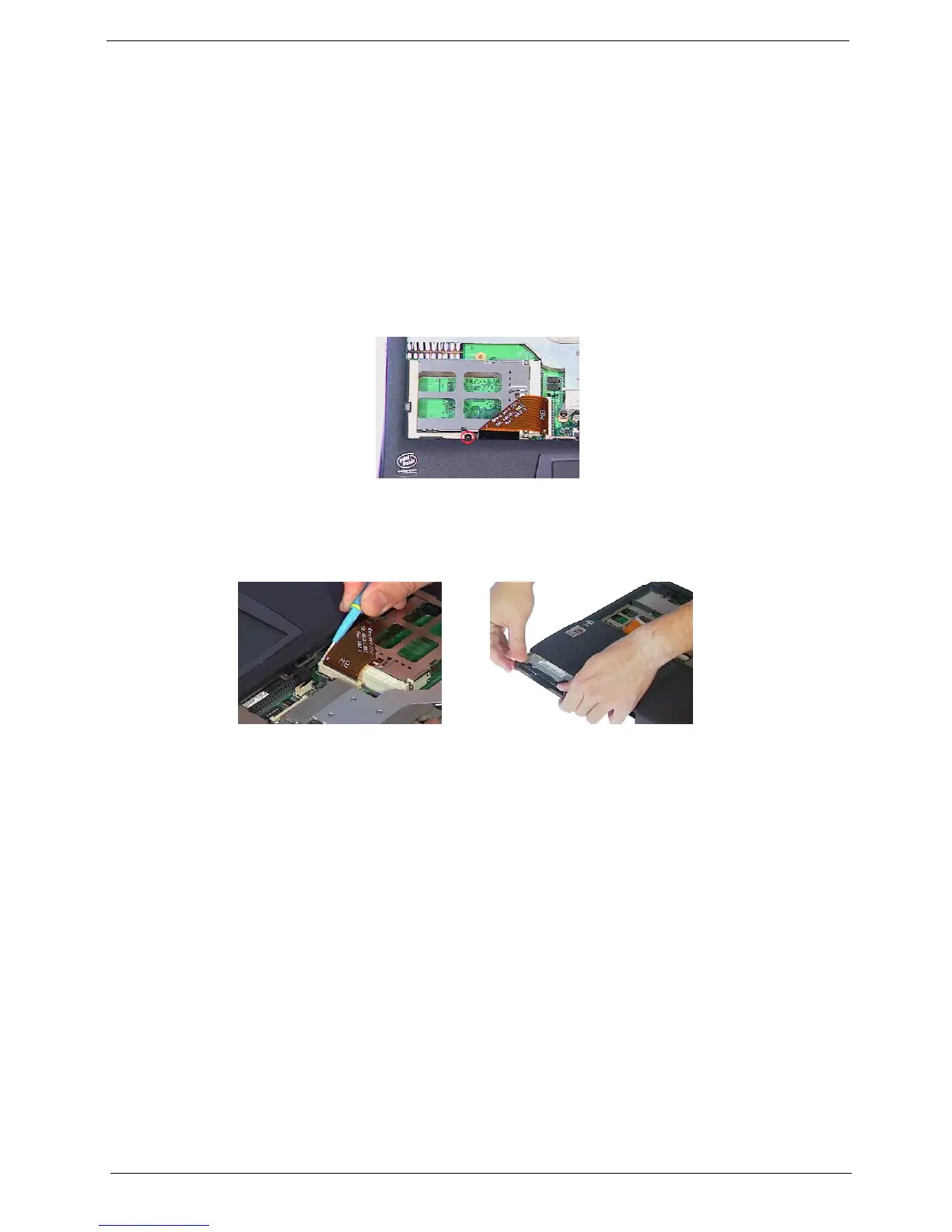

Disassembling the Upper Case
Removing the Floppy Disk Drive Module
1.
See “Removing the Hinge Cap” on page 55
2.
See “Removing the Middle Cover” on page 55
3.
See “Removing the Keyboard” on page 56
4.
See “Removing the Cable Cover” on page 56
5.
See “Removing the 12.1” TFT LCD Module” on page 57
6.
To remove the floppy disk drive module, first remove the screw from the upper case.
7.
Disconnect the floppy disk drive cable from the main unit, then pull the floppy disk drive module out from
the main unit carefully.
Disassembling the Floppy Disk Drive Module
1.
See “Removing the Hinge Cap” on page 55
2.
See “Removing the Middle Cover” on page 55
3.
See “Removing the Keyboard” on page 56
4.
See “Removing the Cable Cover” on page 56
5.
See “Removing the 12.1” TFT LCD Module” on page 57
6.
See “Removing the Floppy Disk Drive Module” on page 63
