64 Chapter 3

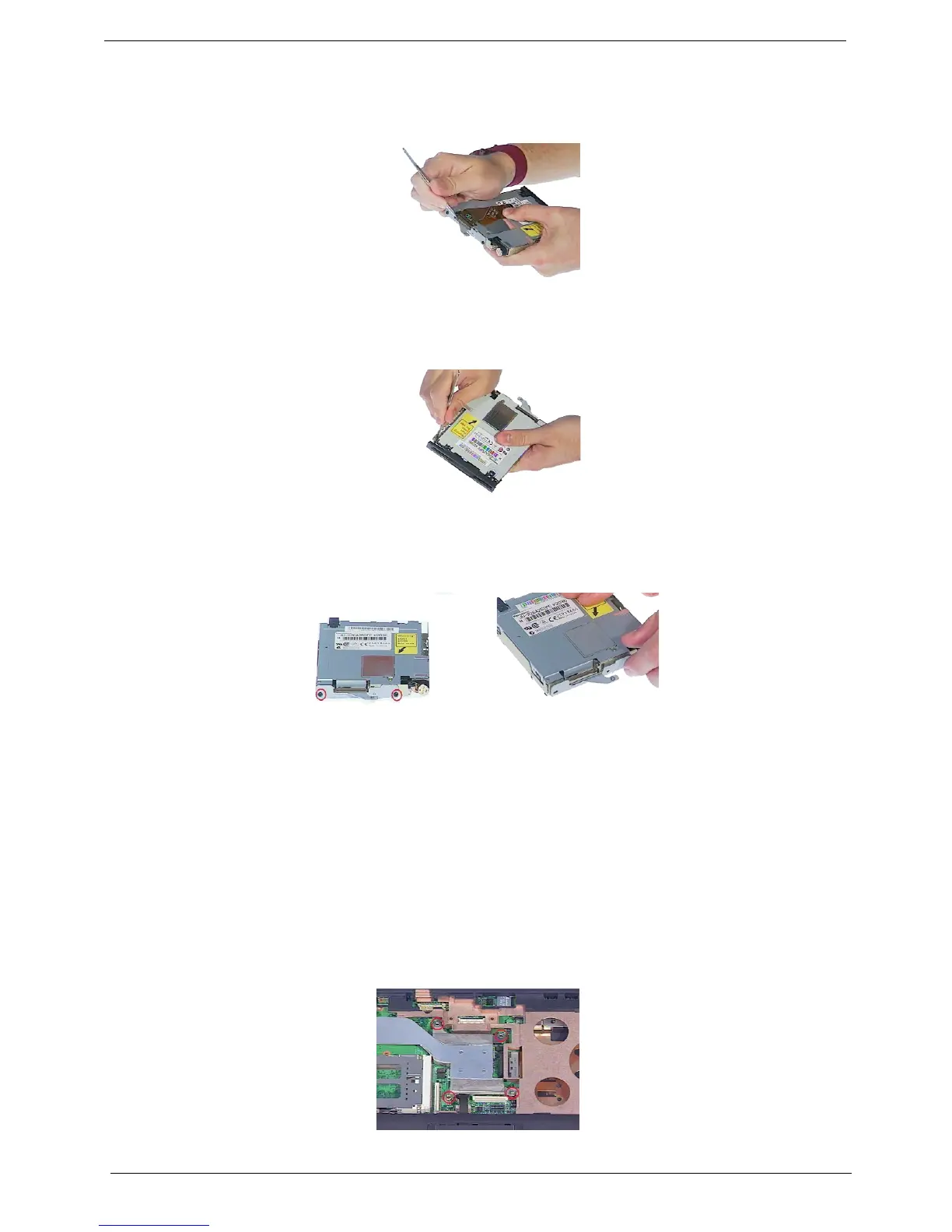

7. To disassemble the floppy disk drive module, first disconnect the floppy disk drive FPC cable from the
drive.
8. Detach the bezel from the drive carefully.
9. Remove the two screws from the floppy disk drive bracket and remove the bracket from the drive.
Removing the CPU Heatsink
1. See “Removing the Hinge Cap” on page 55
2. See “Removing the Middle Cover” on page 55
3. See “Removing the Keyboard” on page 56
4. See “Removing the Cable Cover” on page 56
5. See “Removing the 12.1” TFT LCD Module” on page 57
6. Remove four screws from the CPU heatsink.
