56 Chapter 3

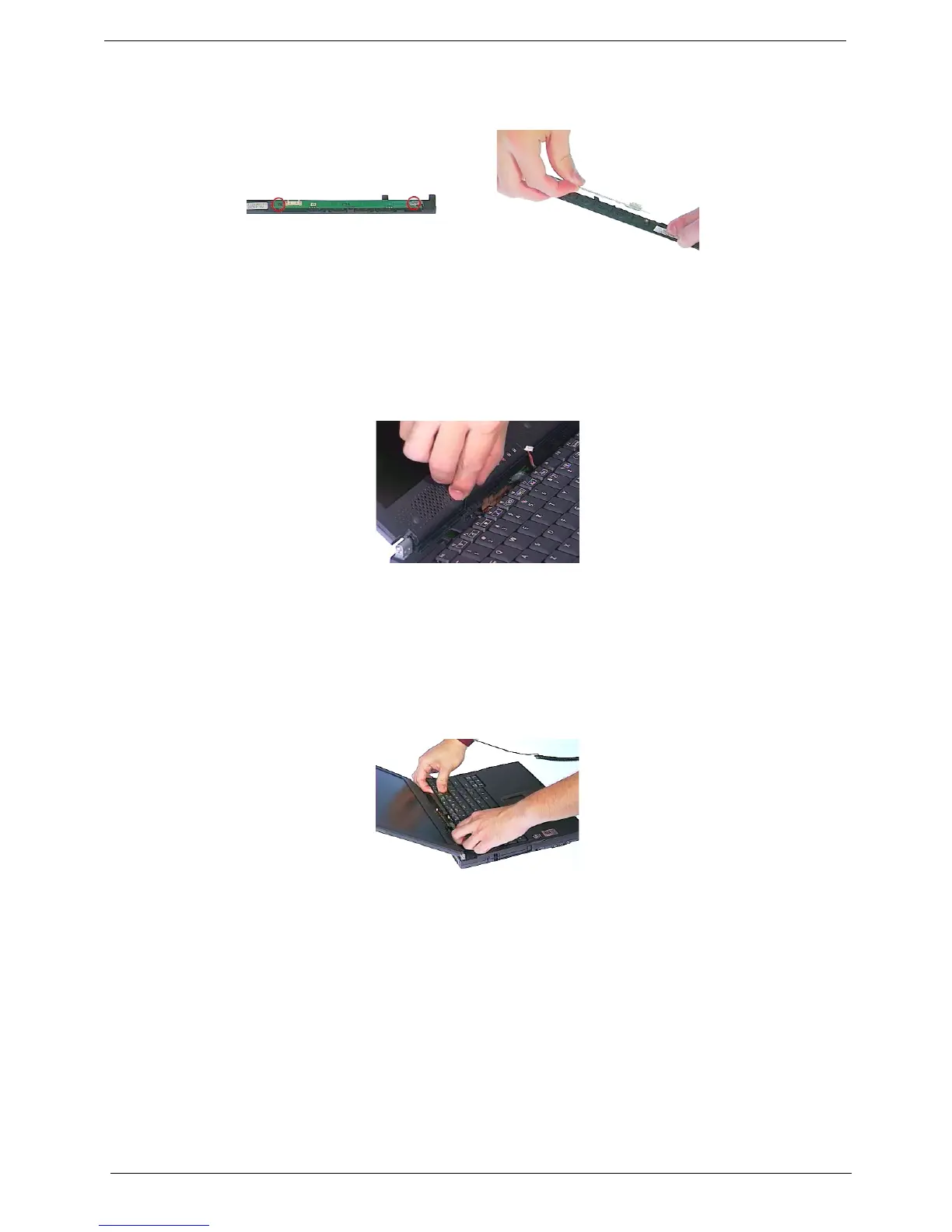

4. Remove the two screws from the launch board then remove the launch board from the middle cover.
Removing the Cable Cover
1. See “Removing the Hinge Cap” on page 55
2. To remove the cable cover, push the cable cover backward then pull the cover off gently.
Removing the Keyboard
1. See “Removing the Hinge Cap” on page 55
2. See “Removing the Middle Cover” on page 55
3. To remove the keyboard, first pull out and upward to expose the keyboard.
To Next Page
