70 Chapter 3

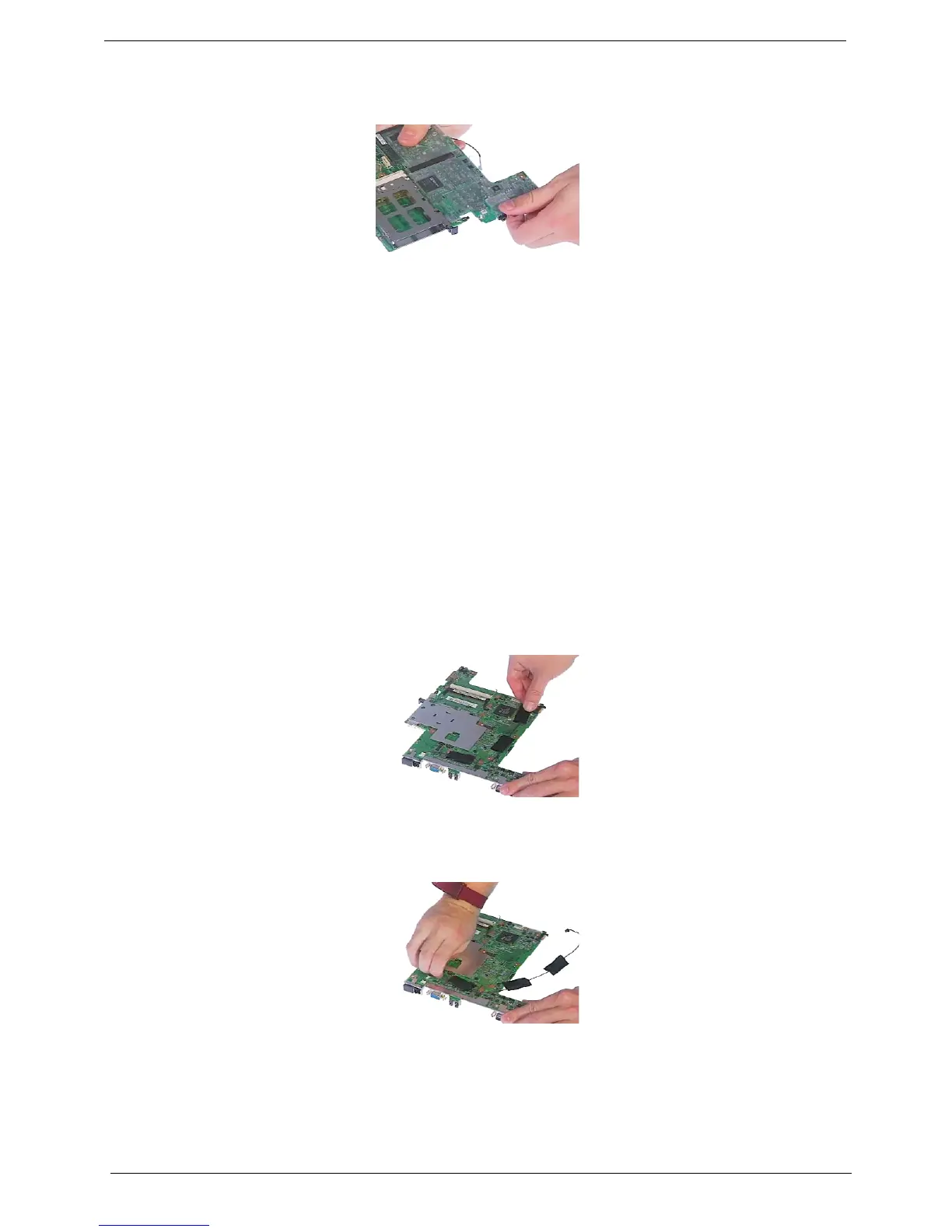

12. Detach the audio board from the main board.
Removing the Modem Cable
1. See “Removing the Hinge Cap” on page 55
2. See “Removing the Middle Cover” on page 55
3. See “Removing the Keyboard” on page 56
4. See “Removing the Cable Cover” on page 56
5. See “Removing the 12.1” TFT LCD Module” on page 57
6. See “Removing the CPU Heatsink” on page 64
7. See “Removing the Upper Case” on page 67
8. See “Removing the Charger Plate” on page 68
9. See “Removing the Fan” on page 68
10. See “Removing the Main Board” on page 69
11. To remove the modem cable, first disconnect the modem cable from the main board.
12. Remove the modem cable from the main board.
To Next Page
